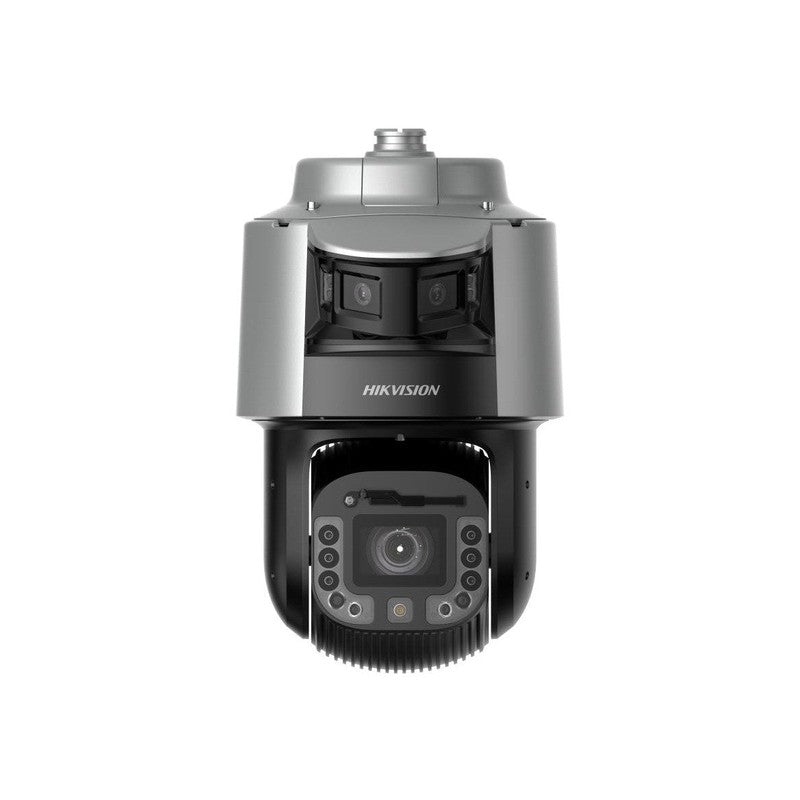

Hikvision 6MP + 8MP Tandemvu Ultra Ds-2sf8c848mxg1-el(w)(y)/26 PTZ Camera With Colorvu, 26x Optical Zoom, IR 500m
SKU: DS2SF8C848MXG1ELWY26
$12,738.75
The Hikvision DS-2SF8C848MXG1-EL(W)(Y)/26 PTZ Camera utilizes TandemVu Ultra technology to integrate a 6MP panoramic channel and an 8MP PTZ channel within a single outdoor housing. Designed for wide-area surveillance in ports, industrial yards, and critical infrastructure, this unit provides simultaneous wide-field overview and high-resolution detail without the context loss typical of standard PTZ systems.
Key Features
- TandemVu Ultra dual-channel design featuring a 6MP panoramic channel with a 190-degree horizontal field of view and an 8MP PTZ channel
- 48x optical zoom and 16x digital zoom on the PTZ channel with a focal length range of 6.25 to 300mm
- DarkFighter 2.0 low-light performance enabling 24/7 colour imaging in low-light conditions
- 500m IR and laser illumination range on the PTZ channel for long-range night visibility
- White light illumination up to 30m on the panoramic channel
- IP67 weather resistance and IK10 vandal resistance for demanding outdoor environments
- Audio-visual alarm functions for integrated perimeter security response
Technical Specifications
| Model | DS-2SF8C848MXG1-EL(W)(Y)/26 |
| Product Type | TandemVu Ultra Panoramic PTZ Network Camera |
| Panoramic Channel Resolution | 6MP (3680 x 1656) |
| PTZ Channel Resolution | 8MP (3840 x 2160) |
| Panoramic Channel Image Sensor | 1/2.5″ Progressive Scan CMOS |
| PTZ Channel Image Sensor | 1/1.2″ Progressive Scan CMOS |
| Panoramic Channel Lens | 4mm fixed |
| PTZ Channel Focal Length | 6.25 to 300mm |
| PTZ Optical Zoom | 48x optical zoom |
| Digital Zoom | 16x digital zoom |
| Panoramic Field of View | Horizontal 190 degrees plus or minus 5 degrees, vertical 80 degrees plus or minus 5 degrees |
| PTZ Field of View | Horizontal 58.5 to 3.1 degrees, vertical 34 to 1.7 degrees, diagonal 65.8 to 3.5 degrees |
| Low-Light Technology | DarkFighter 2.0 and 24/7 colourful imaging |
| Panoramic Channel Minimum Illumination | Colour: 0.0005 lux at F1.0; black and white: 0.0001 lux at F1.0; 0 lux with white light |
| PTZ Channel Minimum Illumination | Colour: 0.0005 lux at F1.6; black and white: 0.0001 lux at F1.6; 0 lux with IR |
| Illumination Range | Panoramic channel white light up to 30m; PTZ channel IR and laser up to 500m |
| PTZ Pan Range | 360 degrees endless |
| PTZ Tilt Range | -20 to 90 degrees |
| PTZ Pan Speed | Configurable from 0.1 to 160 degrees per second |
| Zoom Speed | Approximately 5.6 seconds |
| Audio-Visual Alarm | White flashing light and audible warning triggered by selected events |
| Deep Learning | Supported |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Weather Protection | IP67 |
| Vandal Resistance | IK10, excluding glass window |
