Hikvision 6MP 8ch CCTV Kit: 6x Dome Cameras With Acusense + 8ch POE NVR With 4tb
SKU: DS2CD2166G2HISUDS7608NII28P
$2,934.15
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
2.5″ 1tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$287.61
Axis 2.5″ 2tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$293.46
Seagate Skyhawk SSD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$539.00
Seagate Skyhawk SSD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$759.00
Seagate St6000vx008 Skyhawk 6tb 3.5 Inch Sata Hard Drive
$1,279.00
Seagate Skyhawk SSD Surveillance 8tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$1,215.00
Seagate Skyhawk St10000vx0004 10tb 3.5 Inch Sata 6gb/s Surveillance Hard Drive
$1,485.00
Seagate Skyhawk Hasea16tb-shaisv2562 16tb 3.5 Inch Sata HDD 6gb/s 256mb Cache 7200rpm 26.11hx101.85wx146.99d (mm)
$1,695.00
Seagate Exos HDD 16tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,365.00
Western Digital Purple HDD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$495.00
Western Digital Wd33purz Wd Purple 3tb 3.5 Inch Sata Iii 6gb/s Surveillance HDD
$445.00
Western Digital Hawd-pp35-3tb1 Purple HDD Surveillance 3tb 3.5" Sata Iii (6gb/s) 5400 Rpm 256 Mb Cache
$495.00
Western Digital Purple HDD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$565.00
Western Digital Wd44purz Wd Purple Surveillance 4tb 3.5 Inch Sata HDD
$645.00
Western Digital Wd64purz Wd Purple HDD Surveillance 6tb 3.5 Inch Sata Iii 6gb/s 5400rpm
$895.00
Western Digital Wd85purz Purple HDD Surveillance 8tb 3.5 Inch Sata 6gb/s 5400 Rpm Cmr
$945.00
Western Digital Wd102purp Purple Pro SSD Surveillance 10tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,395.00
Western Digital Wd Purple Pro Wd141purp 14tb 3.5 Inch Sata Iii 6gb/s 7200rpm Surveillance HDD
$1,295.00
Western Digital Purple Pro SSD 18tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,495.00
Western Digital Wuh721816ale6l4 Ultrastar DC Hc550 HDD 16tb 3.5 Inch 7200rpm Sata 6gb/s HDD 512mb Buffer 26.1mm Z-height 0f38462
$1,695.00
Western Digital Ultrastar DC Hc550 16tb Sata 6gb/s 3.5 Inch 7200rpm Data Center HDD
$1,995.00
Hikvision Monitor Ds-d5022f2-1v2s 21.5 Inch FHD 100hz Va Monitor With Speaker, Hdmi, 6.5ms, Vesa 75×75
$190.50
Hikvision Ds-d5024f2-bv2s 23.8″ FHD Surveillance Monitor With Speaker
$225.60
Hikvision Ds-d5032f3-1v0s 32″ Full Hd Commercial Monitor Hdmi, VGA & Speakers
$463.11
Hikvision Ds-d5043f3-1v0s 43″ Commercial Monitor Full Hd Hdmi/vga/usb, Built-in Speaker
$687.75
Dahua 24"(23.8) 1920x1080 FHD LED Monitor 1 X HDMI Audio In Built-in Speaker
$271.55
Dahua 32"(31.5) 1920x1080 FHD LED Monitor 24/7 1 X HDMI 1 X VGA Built-in Speaker
$465.05
Dahua 43" 3840x2160 4K UHD LED Monitor 24/7 2 X Hdmi,1 X Vga,1 X USB Audio In Built-in Speaker
$879.36
Dahua 55" 3840x2160 4K UHD LED Monitor 24/07 2 X HDMI 1 X VGA 1 X Display Port Audio In Built-in Speaker
$2,459.70
Uniview 22" 1920x1080 FHD LED Monitor 1 X HDMI 1 X VGA Audio In
$298.12
Uniview Mw3232-v-k2 32 Inch FHD CCTV Monitor HDMI VGA Audio In Built-in Speaker
$559.24
Uniview 43" 3840x2160 4K UHD LED Monitor 24/7 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,189.44
Uniview 55" 3840x2160 4K UHD LED Monitor 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,513.98
Uniview 75" 3840x2160 4K UHD Monitor 1 X SD 2 X USB 1 X Display Port Audio In & Out Built-in Speaker
$5,324.82
Hikvision Ds-220azj-145-wa Metal Wall Mount Bracket – White CCTV Camera Mount For Dome & Turret Cameras
$47.76
$45.37
Hikvision Ds-1272zj-120 Wall Mount Bracket For Mini Dome
$52.44
$49.82
Hikvision Ds-1272zj-110b Wall Mount Bracket With Junction Box Specialorder
$50.10
Hikvision Ds-1275zj-sus Stainless Steel Horizontal Pole Mount
$54.78
Hikvision Ds-1280zj-dm46 Junction Box White
$41.91
$39.81
Upgrades Subtotal:
$0.00
The Hikvision 6MP 8ch CCTV Kit: 6x Dome Cameras With Acusense + 8ch POE NVR With 4tb provides a comprehensive surveillance solution featuring six 6MP fixed dome network cameras and an 8-channel PoE NVR with 4TB storage. Designed for residential, commercial, and light industrial applications, this system integrates high-resolution imaging with smart detection capabilities to enhance incident verification and reduce false alarms.
Key Features
- 6MP resolution captures detailed footage for clear identification of people, vehicles, and scene elements.
- AcuSense technology enables human and vehicle classification to minimize nuisance alerts from background activity.
- DarkFighter technology ensures excellent low-light performance for effective monitoring in dim or unlit environments.
- IP67 weather resistance and IK10 vandal protection provide durability for demanding outdoor and indoor installations.
- Built-in microphone on cameras allows for audio recording to add context during incident review.
- 8-channel PoE NVR with 4TB hard drive supports efficient data compression and reliable recording.

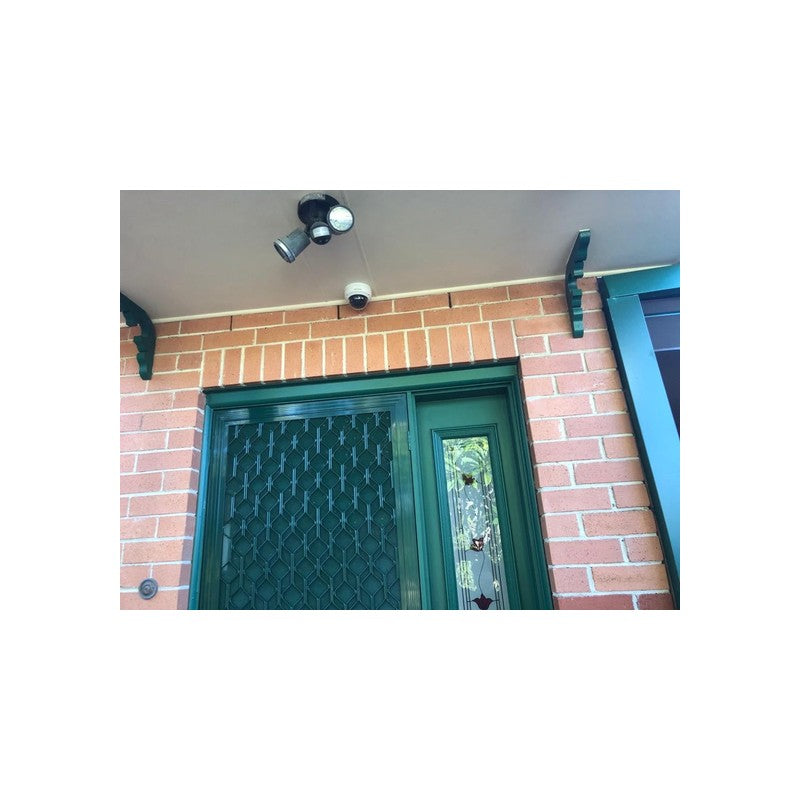

- Compact, vandal-resistant dome housing suitable for entrances, driveways, and perimeter zones.
Technical Specifications
| Camera | ||
| Image Sensor: | | | 1/2.9″ Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8 mm, horizontal field of view: 80° 4 mm, horizontal field of view: 63.5° 6mm, horizontal field of view: 50° 12 mm, horizontal field of view: 16° |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | | | 32Kbps~16Mbps |
| Triple Streams: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720) 60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720) |
| Sub Stream: | | | 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream: | | | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
| Image Enhancement: | | | BLC/3D DNR |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping: | | | Support |
| ROI: | | | Support 1 fixed region for each stream |
| Day/Night Switch: | | | Auto/Scheduled |
| Network | ||
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function: | | | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Smart Feature-set | ||
| Behavior Analysis: | | | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| Recognition: | | | Face Detection |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | | | 12 VDC ± 25%, 6.2 W PoE(802.3af, class 3), 9 W |
| Impact Protection: | | | IK10 |
| Weather Proof: | | | IP67 |
| IR Range: | | | Up to 30m |
| Dimensions: | | | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Weight: | | | Camera: 500 g (1.1 lb.) |
