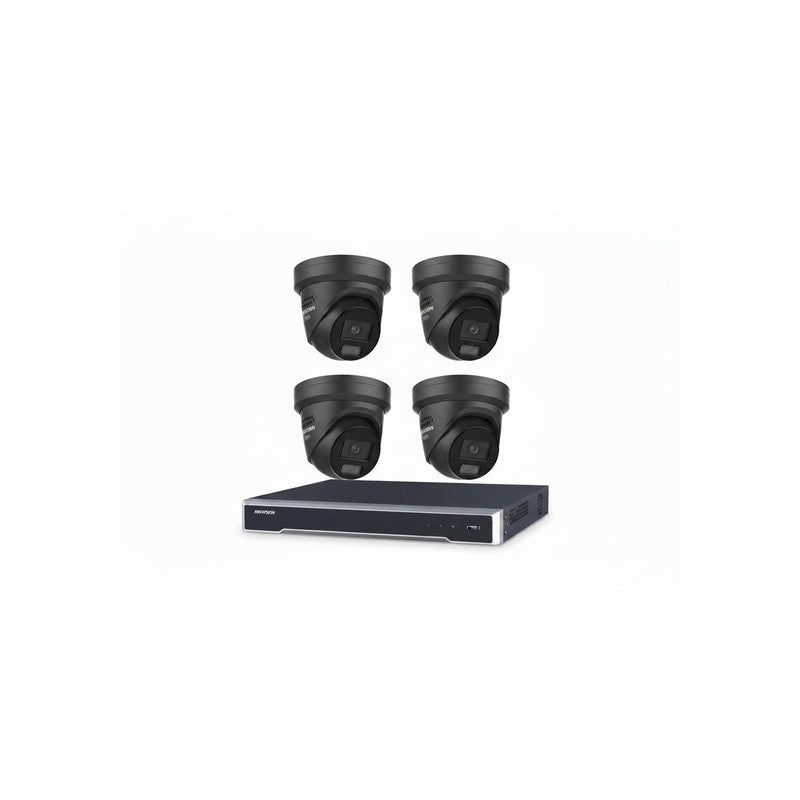

Hikvision 6MP 4ch CCTV Kit: 4x Black Liveguard Acusense Turret Cameras With Strobe, Audio, Smart Light + 4ch POE NVR

SKU: 6XDS2CD2366G2HIS2USLBLKDS7608NII28PBLACK

$1,725.54

Quantity:

The Hikvision 6MP 4ch CCTV Kit: 4x Black Liveguard Acusense Turret Cameras With Strobe, Audio, Smart Light + 4ch POE NVR provides a complete surveillance solution featuring 6MP AcuSense turret cameras and a 4-channel PoE NVR. Designed for residential, retail, and commercial environments, this system combines high-resolution imaging with active deterrence capabilities to enhance perimeter security.

Key Features

6MP resolution (3200 × 1800) for detailed image capture
AcuSense technology distinguishes between humans and vehicles to reduce false alarms
Built-in strobe light and audible alarm for active deterrence
Two-way audio communication for real-time interaction
120 dB WDR and F1.0 aperture for superior low-light and high-contrast performance
Infrared illumination range of up to 30 metres
4-channel PoE NVR included for centralized recording and management

Technical Specifications

Camera
Image Sensor:	\|	1/2.9″ Progressive Scan CMOS
Signal System:	\|	PAL/NTSC
Min. Illumination:	\|	Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time:	\|	1/3 s to 1/100,000 s
Slow shutter:	\|	Support
Lens:	\|	2.8 mm, horizontal field of view: 97° 4 mm, horizontal field of view: 78° 6 mm, horizontal field of view: 60° 8 mm, horizontal field of view: 39.5° 12 mm, horizontal field of view: 19°
Lens Mount:	\|	M12
Adjustment Range:	\|	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	120 dB
Digital noise reduction:	\|	3D DNR
Compression Standard
Video Compression:	\|	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:	\|	32Kbps~16Mbps
Triple Streams:	\|	Yes
Max. Image Resolution:	\|	1920 x 1080
Frame Rate:	\|	50Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720) 60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720)
Sub Stream:	\|	50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream:	\|	50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement:	\|	BLC/3D DNR
Image Settings:	\|	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping:	\|	Support
ROI:	\|	Support 1 fixed region for each stream, and face dynamic tracking
Day/Night Switch:	\|	Auto/Scheduled
Network
Protocols:	\|	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:	\|	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:	\|	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface:	\|	1 RJ45 10M / 100M Ethernet interface
On-board storage:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:	\|	Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:	\|	Cross a pre-defined virtual line
Intrusion Detection:	\|	Enter and loiter in a pre-defined virtual region
Unattended Baggage:	\|	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:	\|	Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:	\|	Face Detection
General
Operating Conditions:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	\|	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:	\|	12 VDC ± 25%, 5.5 W PoE(802.3af, 42.5 – 57V, class 3), 7.5 W
Weather Proof:	\|	IP67
IR Range:	\|	Up to 30m
Dimensions:	\|	Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight:	\|	Camera: 620 g (1.37 lb.)
