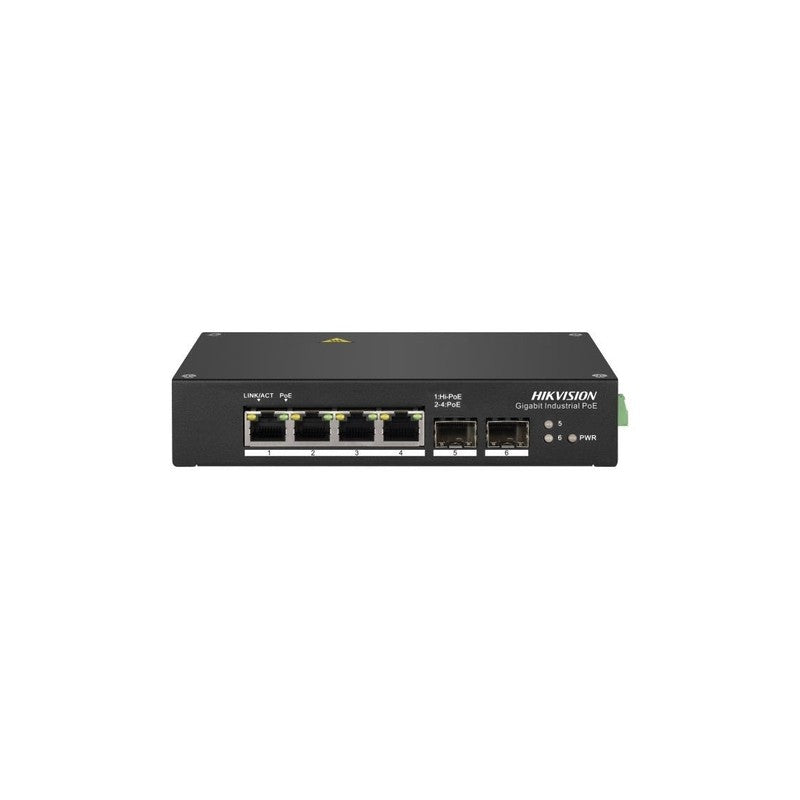

Hikvision 4-port Gigabit Unmanaged Ds-3t0506hp Industrial Hi-poe Switch With 2 Sfp Ports, 110w POE Budget & 300m Long-range Transmission
SKU: DS3T0506HP
$144.87
The Hikvision DS-3T0506HP is a 4-port Gigabit unmanaged Hi-PoE switch engineered for industrial surveillance networks requiring high-power PTZ cameras, remote nodes, or fibre backhaul. Designed for DIN rail installation in industrial cabinets, outdoor enclosures, and plant rooms, this unit provides a 110W PoE budget and supports 300m long-range transmission.
Key Features
- 4-port Gigabit unmanaged switching with 2 SFP ports for fibre connectivity
- 110W total PoE budget supporting high-power industrial devices
- 300m long-range transmission capability for extended network reach
- Hi-PoE technology for enhanced power delivery to surveillance equipment
- DIN rail mounting design suitable for industrial cabinets and plant rooms
- 928MP total bandwidth capacity for high-resolution video streams
- Unmanaged operation for simplified deployment in remote or industrial sites
Technical Specifications
| Model | DS-3T0506HP |
| Product Type | 4-Port Gigabit Unmanaged Industrial Hi-PoE Switch |
| PoE Ports | 4 x Gigabit PoE RJ45 |
| Fibre Ports | 2 x Gigabit SFP optical |
| Hi-PoE Port | Port 1 – up to 90W output |
| Other PoE Ports | Ports 2-4 – up to 30W each, subject to total PoE budget |
| Total PoE Budget | 110W |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Switching Capacity | 12Gbps |
| Packet Forwarding Rate | 8.928Mpps |
| MAC Address Table | 2K |
| Long-Range Transmission | Up to 300m |
| Surge Protection | 6kV |
| Housing | Rugged aluminium alloy, fan-free |
| Installation | DIN rail mounting |
| Power Input | 48-57VDC, 2.5A |
| Maximum Power Consumption | 120W |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 158 x 101.2 x 31.6mm |
| Net Weight | Approx. 0.38kg |
