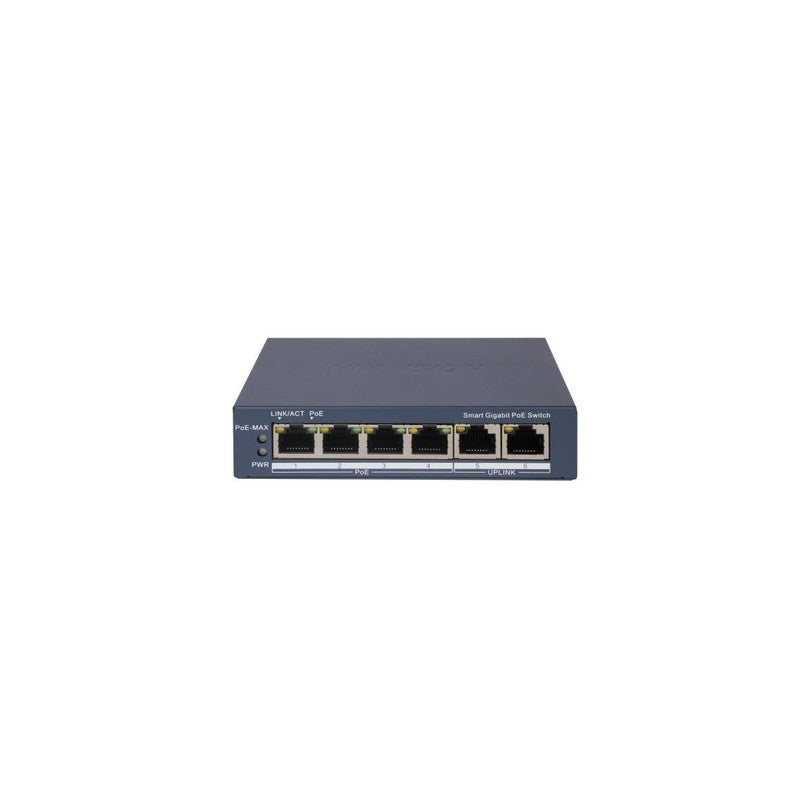

Hikvision 4-port Gigabit Smart POE Ds-3e1506p-ei Switch With 60w POE Budget, 802.1q Vlan & POE Watchdog
SKU: DS3E1506PEI
$108.60
The Hikvision DS-3E1506P-EI is a 4-port Gigabit Smart PoE switch designed for compact IP surveillance networks requiring smart-managed switching capabilities. Housed in a desktop-sized metal enclosure, this unit provides a 60W PoE budget and supports 802.1Q VLAN and PoE Watchdog features for reliable network performance.
Key Features
- 4 Gigabit Ethernet ports
- 60W total PoE power budget
- 802.1Q VLAN support
- Integrated PoE Watchdog functionality
- Smart-managed switching
- Desktop-sized metal enclosure
Technical Specifications
| Model | DS-3E1506P-EI |
| Product Type | 4-Port Gigabit Smart PoE Switch |
| PoE Ports | 4 x Gigabit PoE (ports 1 to 4) |
| Uplink Ports | 2 x Gigabit RJ45 |
| Total Ports | 6 Gigabit RJ45 |
| PoE Standard | IEEE 802.3af and IEEE 802.3at |
| Total PoE Budget | 60W |
| Maximum Power Per Port | 30W |
| Switching Capacity | 14Gbps |
| Packet Forwarding Rate | 10.42Mpps |
| VLAN | IEEE 802.1Q, VLAN ID 1-4094, Trunk and Access modes, up to 32 VLANs |
| Loop Prevention | IEEE 802.1D STP and IEEE 802.1w RSTP |
| Long-Range PoE | Up to 300m on ports 1 to 4 (subject to camera model and cable condition) |
| PoE Watchdog | Auto-detects and restarts unresponsive devices on ports 1 to 4 |
| Remote Management | Hik-Partner Pro (one-click activation, PoE monitoring, topology, remote restart) |
| Surge Protection | 6kV |
| Power Supply | 54VDC, 1.2A |
| Maximum Power Consumption | 65W |
| Operating Temperature | 0 degrees C to 40 degrees C |
| Dimensions | 121.1 x 27.6 x 83.1mm |
| Net Weight | Approx. 0.27kg |
| Installation | Desk-mounted or wall-mounted |
| Shell Material | Metal |
