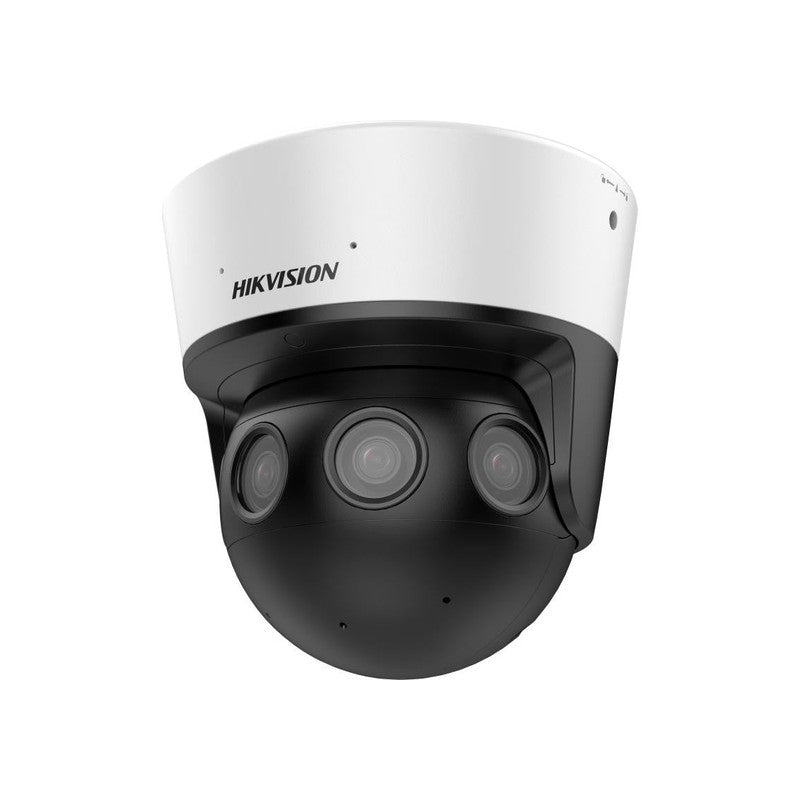

Hikvision 32mp 180° Panovu Ds-2cd6984g1-ihsuy/nfc Multisensor 4-directional Camera, 2.8mm Lens, IR 20m
SKU: DS2CD6984G1IHSUYNFC
$6,233.55
The Hikvision DS-2CD6984G1-IHS(U)Y(/NFC) is a 32MP multisensor panoramic camera designed for wide-area surveillance in transport hubs, retail environments, and commercial forecourts. By integrating four 2.8mm lenses into a single housing, this unit delivers a seamless 8160 x 3616 resolution image across a 185-degree horizontal and 100-degree vertical field of view, significantly reducing the need for multiple camera installations.
Key Features
- 32MP multi-sensor resolution with 8160 x 3616 image output for detailed wide-scene monitoring
- 185-degree horizontal and 100-degree vertical field of view for comprehensive single-point coverage
- Motorised pan adjustment from 0 to 340 degrees and tilt from 0 to 90 degrees for remote repositioning
- IP67 weatherproofing and IK10 vandal resistance for durable outdoor deployment
- Integrated heater supporting operational temperatures down to -40 degrees Celsius
- Onboard microSD storage capacity up to 1TB for extended local retention
- H.265+ compression to reduce bandwidth load during video transmission
Technical Specifications
| Model | DS-2CD6984G1-IHS(U)Y(/NFC) |
| Resolution | 32MP (8160 x 3616) |
| Lens Type | Fixed 2.8mm (4 integrated lenses) |
| Horizontal FOV | 185 degrees |
| Vertical FOV | 100 degrees |
| IR Range | 20m |
| Minimum Illumination (Colour) | 0.002 Lux |
| Minimum Illumination (B/W) | 0.0005 Lux |
| Pan Range | 0 to 340 degrees (motorised) |
| Tilt Range | 0 to 90 degrees (motorised) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Onboard Storage | microSD up to 1TB |
| Weatherproofing | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40 degrees Celsius to 60 degrees Celsius (with integrated heater) |
| Dimensions | 214.6mm x 213mm |
| Image Enhancement | WDR, 3D DNR, BLC, Defog |
