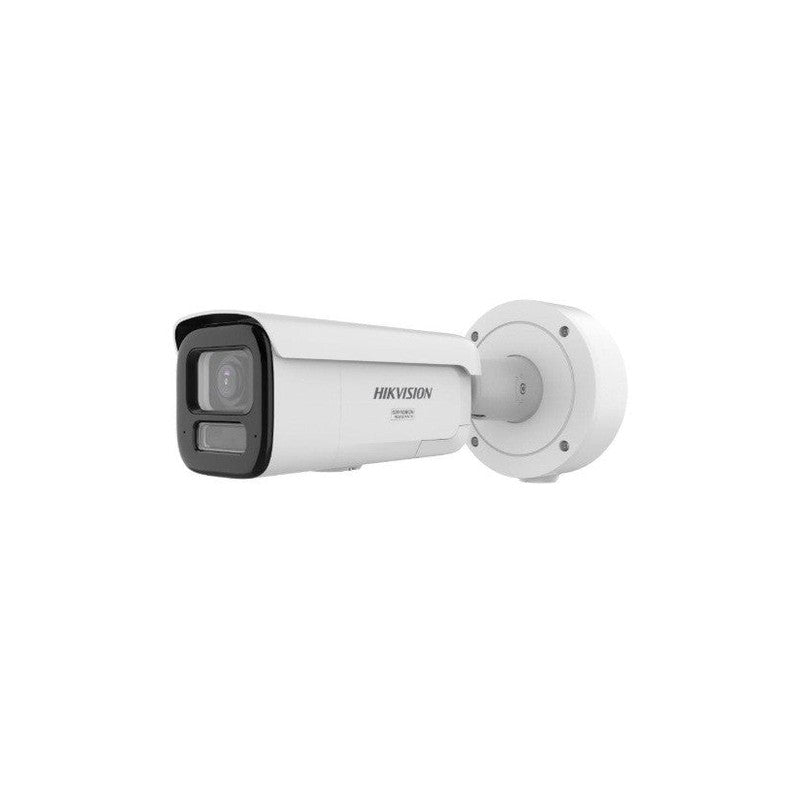

Hikvision 12MP Deepinview Ds-2cd36c7g3-lizsu/sl(y) Dual Illumination Motorised Varifocal Bullet Camera
SKU: DS2CD36C7G3LIZSUYSL
$1,464.83
The Hikvision DS-2CD36C7G3-LIZSU/SL(Y) is a 12MP DeepinView bullet camera designed for commercial perimeters and industrial environments requiring high-resolution imaging and active deterrence. It integrates a 1/1.8″ Progressive Scan CMOS sensor with Smart Hybrid Light dual illumination to provide detailed surveillance and effective night-time coverage.
Key Features
- 12MP resolution (4608 x 2592) on a 1/1.8″ Progressive Scan CMOS sensor with F1.2 aperture
- 2.7-13.5mm motorised varifocal lens with a horizontal field of view ranging from 102° to 44°
- Smart Hybrid Light combining IR and white light illumination with a range of up to 60m
- 130dB scene-adaptive WDR and HIK AI-ISP noise reduction for enhanced image quality
- Deep learning-based person and vehicle classification for targeted event alerts
- Built-in arrayed dual microphones, speaker, and two-way audio for real-time response
- IP67, IK10, and NEMA 4X anti-corrosion protection for rugged outdoor installation
Technical Specifications
| Product Type | 12MP dual illumination strobe light and audible warning motorised varifocal bullet network camera. |
| Model | DS-2CD36C7G3-LIZSU/SL(Y). |
| Brand | Hikvision. |
| Image Sensor | 1/1.8″ Progressive Scan CMOS. |
| Maximum Resolution | 4608 x 2592. |
| Resolution Class | 12MP Ultra High Definition. |
| Minimum Illumination | Colour: 0.0008 Lux @ F1.2, AGC ON; 0 Lux with supplemental light. |
| Lens | 2.7-13.5mm motorised varifocal lens. |
| Aperture | Maximum F1.2. |
| Field of View | Horizontal 102° to 44°, vertical 54° to 25°, diagonal 123° to 51°. |
| Supplement Light | Smart Hybrid Light with IR and white light; up to 60m range. |
| IR Wavelength | 850nm. |
| WDR | 130dB scene-adaptive WDR. |
| Video Compression | H.265+, H.265, H.264+, H.264 on main stream; additional stream support varies by stream. |
| Main Stream Frame Rate | Up to 20fps at 4608 x 2592; up to 25fps or 30fps at lower supported resolutions depending on 50Hz/60Hz settings. |
| DORI Distance | Wide: Detect 66.6m, Observe 26.4m, Recognise 13.3m, Identify 6.7m. Tele: Detect 79.2m, Observe 31.4m, Recognise 15.8m, Identify 7.9m. |
| AI Functions | Person and vehicle classification for line crossing, intrusion, region entrance and region exiting. Face capture supported. |
| Audio | Built-in arrayed dual microphone, built-in speaker, line input and line output. Two-way audio supported. |
| Active Deterrence | Active strobe light and audio alarm for on-site warning on compatible event triggers. |
| Alarm Interface | 2 inputs, 2 outputs; maximum 24VDC/24VAC, 1A. |
| On-Board Storage | microSD/microSDHC/microSDXC slot; up to 512GB. |
| Network Interface | 1 x RJ45 10M/100M self-adaptive Ethernet port. |
| Power | 12VDC ±25%, 1.4A, max. 18W; PoE IEEE 802.3at Class 4, max. 22W. |
| Protection Rating | IP67 weather resistance, IK10 vandal resistance. |
| Anti-Corrosion | NEMA 4X moderate anti-corrosion protection. |
| Operating Temperature | -30°C to 60°C; humidity 95% or less, non-condensing. |
