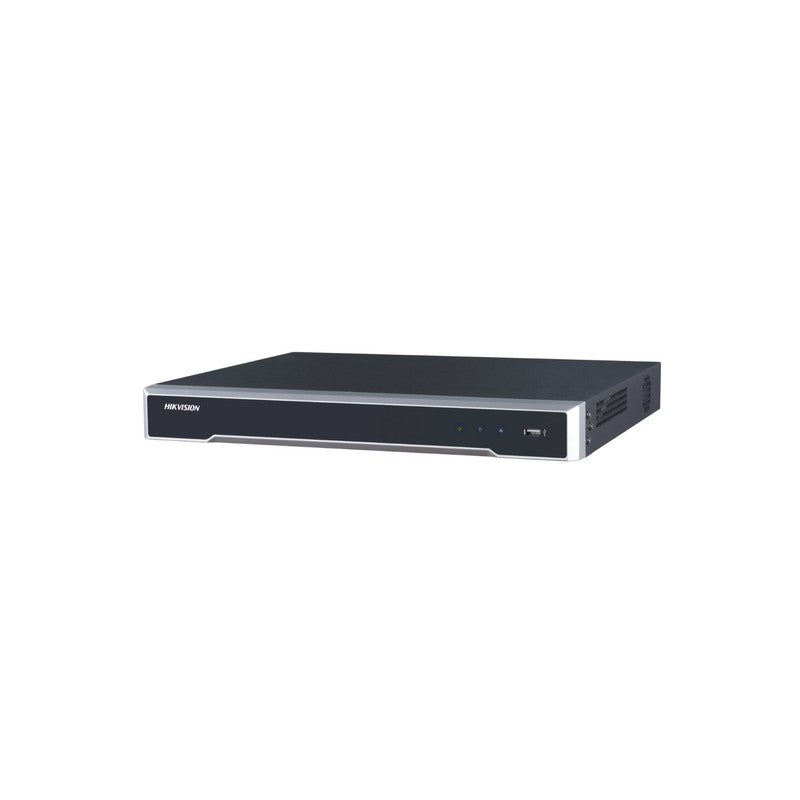

Hikvision 10 Camera 8MP Acusense Security Kit With 16ch 16 POE 8k Nvr, 10x Fixed Turret Cameras, Built-in Microphone, No HDD Included
SKU: DS2CD2186G2HISUDS7616NIM216PNOHDD
$4,684.47
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
2.5″ 1tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$287.61
Axis 2.5″ 2tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$293.46
Seagate Skyhawk SSD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$539.00
Seagate Skyhawk SSD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$759.00
Seagate St6000vx008 Skyhawk 6tb 3.5 Inch Sata Hard Drive
$1,279.00
Seagate Skyhawk SSD Surveillance 8tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$1,215.00
Seagate Skyhawk St10000vx0004 10tb 3.5 Inch Sata 6gb/s Surveillance Hard Drive
$1,485.00
Seagate Skyhawk Hasea16tb-shaisv2562 16tb 3.5 Inch Sata HDD 6gb/s 256mb Cache 7200rpm 26.11hx101.85wx146.99d (mm)
$1,695.00
Seagate Exos HDD 16tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,365.00
Western Digital Purple HDD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$495.00
Western Digital Wd33purz Wd Purple 3tb 3.5 Inch Sata Iii 6gb/s Surveillance HDD
$445.00
Western Digital Hawd-pp35-3tb1 Purple HDD Surveillance 3tb 3.5" Sata Iii (6gb/s) 5400 Rpm 256 Mb Cache
$495.00
Western Digital Purple HDD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$565.00
Western Digital Wd44purz Wd Purple Surveillance 4tb 3.5 Inch Sata HDD
$645.00
Western Digital Wd64purz Wd Purple HDD Surveillance 6tb 3.5 Inch Sata Iii 6gb/s 5400rpm
$895.00
Western Digital Wd85purz Purple HDD Surveillance 8tb 3.5 Inch Sata 6gb/s 5400 Rpm Cmr
$945.00
Western Digital Wd102purp Purple Pro SSD Surveillance 10tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,395.00
Western Digital Wd Purple Pro Wd141purp 14tb 3.5 Inch Sata Iii 6gb/s 7200rpm Surveillance HDD
$1,295.00
Western Digital Purple Pro SSD 18tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,495.00
Western Digital Wuh721816ale6l4 Ultrastar DC Hc550 HDD 16tb 3.5 Inch 7200rpm Sata 6gb/s HDD 512mb Buffer 26.1mm Z-height 0f38462
$1,695.00
Western Digital Ultrastar DC Hc550 16tb Sata 6gb/s 3.5 Inch 7200rpm Data Center HDD
$1,995.00
Hikvision Monitor Ds-d5022f2-1v2s 21.5 Inch FHD 100hz Va Monitor With Speaker, Hdmi, 6.5ms, Vesa 75×75
$190.50
Hikvision Ds-d5024f2-bv2s 23.8″ FHD Surveillance Monitor With Speaker
$225.60
Hikvision Ds-d5032f3-1v0s 32″ Full Hd Commercial Monitor Hdmi, VGA & Speakers
$463.11
Hikvision Ds-d5043f3-1v0s 43″ Commercial Monitor Full Hd Hdmi/vga/usb, Built-in Speaker
$687.75
Dahua 24"(23.8) 1920x1080 FHD LED Monitor 1 X HDMI Audio In Built-in Speaker
$271.55
Dahua 32"(31.5) 1920x1080 FHD LED Monitor 24/7 1 X HDMI 1 X VGA Built-in Speaker
$465.05
Dahua 43" 3840x2160 4K UHD LED Monitor 24/7 2 X Hdmi,1 X Vga,1 X USB Audio In Built-in Speaker
$879.36
Dahua 55" 3840x2160 4K UHD LED Monitor 24/07 2 X HDMI 1 X VGA 1 X Display Port Audio In Built-in Speaker
$2,459.70
Uniview 22" 1920x1080 FHD LED Monitor 1 X HDMI 1 X VGA Audio In
$298.12
Uniview Mw3232-v-k2 32 Inch FHD CCTV Monitor HDMI VGA Audio In Built-in Speaker
$559.24
Uniview 43" 3840x2160 4K UHD LED Monitor 24/7 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,189.44
Uniview 55" 3840x2160 4K UHD LED Monitor 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,513.98
Uniview 75" 3840x2160 4K UHD Monitor 1 X SD 2 X USB 1 X Display Port Audio In & Out Built-in Speaker
$5,324.82
Upgrades Subtotal:
$0.00
The Hikvision 10 Camera 8MP Acusense Security Kit With 16ch 16 POE 8k Nvr, 10x Fixed Turret Cameras, Built-in Microphone, No HDD Included is a comprehensive IP surveillance solution designed for extensive multi-point coverage across larger properties. This system integrates ten 8MP fixed turret cameras with a 16-channel PoE NVR, providing a scalable infrastructure for high-resolution video monitoring and audio capture.
Key Features
- Includes ten DS-2CD2186G2H-ISU 8MP fixed turret cameras and one DS-7616NI-M2/16P 16-channel 16 PoE 8K NVR.
- Powered-by-DarkFighter technology with F1.0 lenses and up to 30m IR illumination for detailed low-light image capture.
- AcuSense deep learning analytics for human and vehicle classification to reduce false motion alerts from background activity.
- Built-in microphone on every camera enables synchronized audio recording alongside video footage.
- Power over Ethernet (PoE) connectivity consolidates power and data transmission through a single Ethernet cable per camera.
- 16-channel NVR architecture provides six spare channels for future system expansion.
- Kit is supplied without a hard drive, allowing selection of storage capacity based on specific retention requirements.
Technical Specifications
| Camera Model | DS-2CD2186G2H-ISU |
| NVR Model | DS-7616NI-M2/16P |
| Camera Quantity | 10 |
| Camera Resolution | 8MP |
| Lens Options | 2.8mm or 4mm fixed lens |
| Lens Aperture | F1.0 |
| 2.8mm Field of View | Horizontal 105.1 degrees, vertical 54.8 degrees, diagonal 128.2 degrees |
| 4mm Field of View | Horizontal 90.0 degrees, vertical 45.8 degrees, diagonal 109.4 degrees |
| Low-Light Technology | Powered-by-DarkFighter |
| Wide Dynamic Range | 130 dB true WDR |
| IR Illumination Range | Up to 30m |
| Camera Audio | Built-in microphone |
| On-Board Camera Storage | MicroSD/microSDHC/microSDXC up to 512 GB |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Camera Protection Rating | IP67 and IK10 |
| NVR Channels | Up to 16 IP camera inputs |
| PoE Interfaces | 16 x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| NVR Incoming / Outgoing Bandwidth | 256 Mbps / 256 Mbps |
| HDMI Output Resolution | Up to 8K (7680 x 4320) at 30 Hz |
| SATA Interfaces | 2 |
| Maximum HDD Capacity per Disk | Up to 16 TB |
| HDD Supplied | No HDD included |
