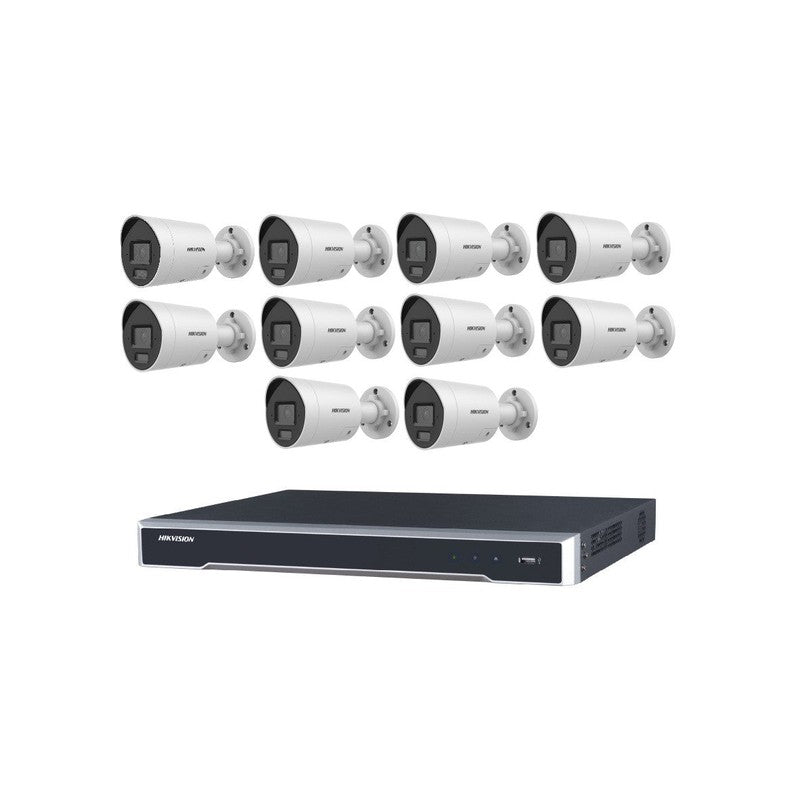

The Hikvision 10 Camera 6MP Acusense Security Kit With 16ch 16 POE 8k Nvr, 10x Fixed Mini Bullet Cameras, Built-in Microphone, No HDD Included provides a comprehensive IP surveillance solution for sites requiring broad coverage across multiple access points and outdoor zones. This system integrates ten DS-2CD2066G2H-IU fixed mini bullet cameras with a DS-7616NI-M2/16P 16-channel NVR, delivering high-resolution video and audio monitoring in a single deployable unit.
Key Features
- Includes ten DS-2CD2066G2H-IU fixed mini bullet cameras and one DS-7616NI-M2/16P 16-channel NVR
- Records at up to 3200 x 1800 resolution using a 1/2.4″ sensor with an F1.0 aperture
- Features AcuSense technology for human and vehicle classification to reduce false alarms
- Utilizes DarkFighter low-light technology and up to 40 metres of IR illumination for after-dark coverage
- Equipped with a built-in microphone for synchronized audio recording alongside video
- NVR provides power to connected cameras directly over Cat cable via 16 built-in PoE ports
- Hard drive (HDD) is not included in the package
Technical Specifications
| Camera Model | DS-2CD2066G2H-IU |
| NVR Model | DS-7616NI-M2/16P |
| Camera Quantity | 10 |
| Camera Resolution | Up to 3200 x 1800 (6MP) |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Aperture | F1.0 |
| Lens Options | 2.8mm or 4mm fixed lens |
| Field of View – 2.8mm | Horizontal 114.8°, vertical 60°, diagonal 143.5° |
| Field of View – 4mm | Horizontal 94°, vertical 50.2°, diagonal 112° |
| Minimum Illumination | Colour 0.001 Lux (F1.0, AGC ON), B/W 0 Lux with IR |
| IR Range | Up to 40m |
| WDR | 120 dB |
| Camera Audio | Built-in microphone |
| On-Board Camera Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Weather Rating | IP67 |
| NVR Channels | Up to 16 IP camera inputs |
| PoE Interfaces | 16 x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| NVR Bandwidth | 256 Mbps incoming / 256 Mbps outgoing |
| HDMI Output | Up to 8K (7680 x 4320) at 30 Hz |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| SATA Interfaces | 2 |
| Maximum HDD per Disk | Up to 16 TB |
| HDD Supplied | No HDD included |
