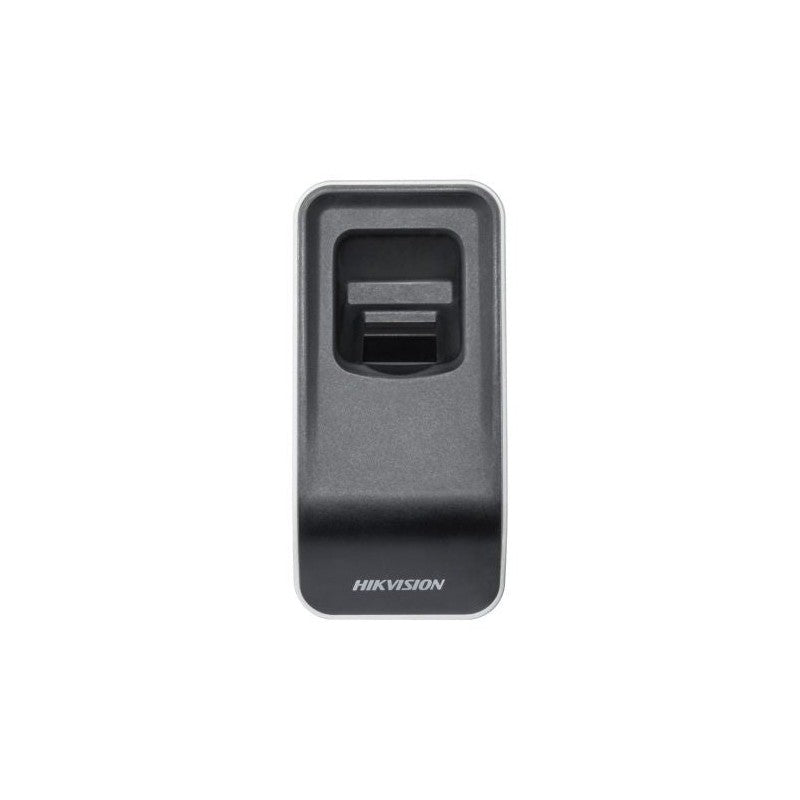

Hikvision Hikivision Ds-k1f820-f Optical Fingerprint Enrollment Scanner Access Control
SKU: DSK1F820F
$298.14
The Hikvision DS-K1F820-F is an optical fingerprint enrollment scanner designed for secure access control systems. This device supports living fingerprint registration and identification, allowing for the direct upload and download of fingerprint characteristic data and images to controllers or modules via a USB interface.
Key Features
- Optical fingerprint sensor with 508 dpi high-definition resolution and red backlight
- Connects directly to a computer via USB 2.0 interface with Plug and Play (PnP) support
- Compatible with Windows XP, Windows 7, and Windows 10 operating systems
- Supports checking the completeness of registered fingerprint templates
- Utilizes a 32-bit MCU with a fingerprint template size of 256 × 288 pixels
- Power over USB with a working voltage of 5 VDC and 200mA current draw
- Compact dimensions of 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”)
- Operates within a temperature range of -30°C to +70°C and humidity of 20% to 80% non-condensing
Technical Specifications
| System Parameters | ||
|---|---|---|
| Operation System: | Windows XP, Windows7, and Windows 10 | |
| Fingerprint Template Size: | 256 × 288 (pixel) | |
| Fingerprint Module: | Optical, Red Backlight | |
| Resolution: | 508 dpi | |
