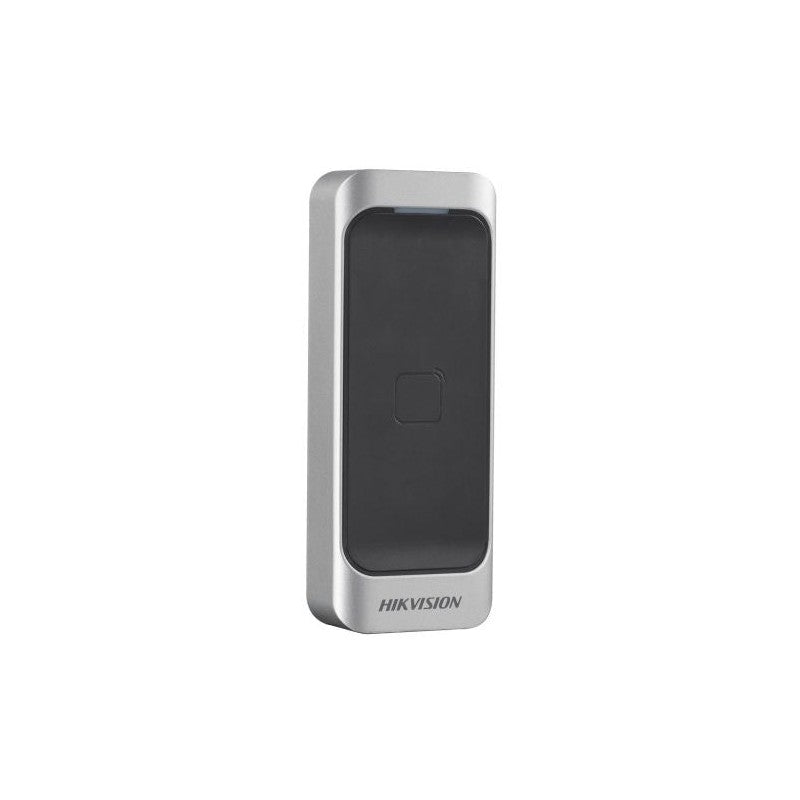

Hikivision Ds-k1107am Slimline Card Reader Access Control

The Hikvision DS-K1107AM Slimline Card Reader Access Control is a Mifare card reader from Hikvision’s Pro Series, engineered for secure access control in indoor and outdoor environments. It features a robust build and advanced processing capabilities suitable for commercial, industrial, and institutional applications.

Key Features

• Integrates a 13.56 MHz Mifare reading module with a maximum contactless reading distance of up to 50 mm.
• Supports RS-485, Wiegand (W26/W34), and OSDP communication protocols for flexible system integration.
• Powered by a 32-bit high-speed processor for rapid data handling and smooth user operation.
• Includes built-in tamper detection with an audible buzzer for feedback on successful or failed card scans.
• Features a self-recovery watchdog mechanism that auto-recovers from software faults to ensure operational stability.
• Supports online firmware updates via network for remote maintenance and feature enhancements.
• Operates on a 12 VDC power supply with a power consumption of ≤2 W.
