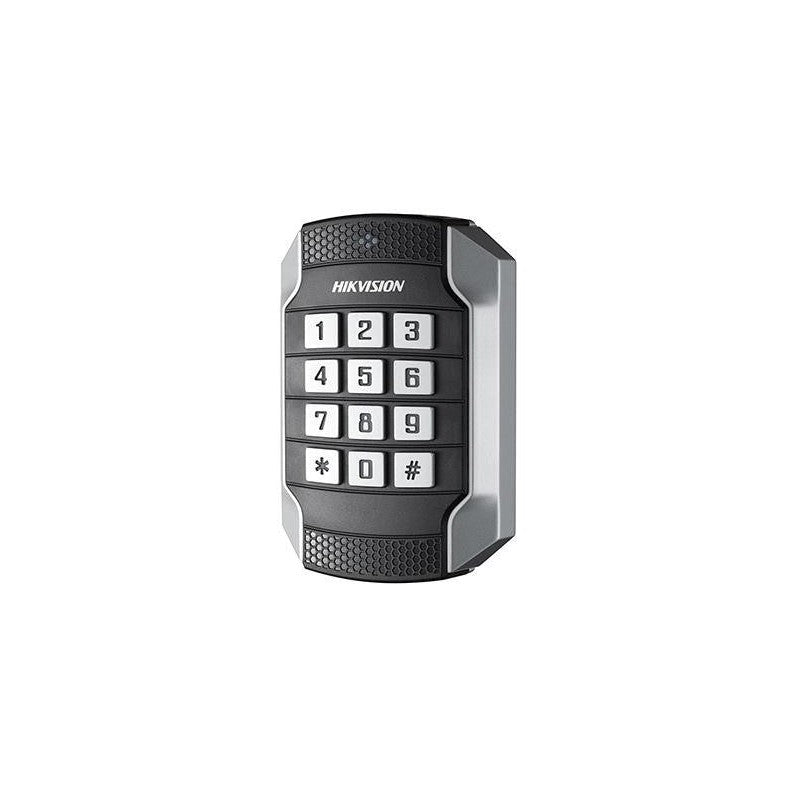

Hikvision Hikivision Ds-k1104mk Card Reader Access Control Vandalproof

The Hikvision Hikivision Ds-k1104mk Card Reader Access Control Vandalproof is a Mifare-compatible access control reader designed for secure, dual-factor authentication environments. This device integrates a 12-key keypad with card reading capabilities, supporting both Wiegand and RS-485 protocols for flexible integration into professional security systems.

Key Features

• Supports Mifare cards at 13.56 MHz, compliant with ISO/IEC 14443 Type A standards for encrypted credential management.
• Features an integrated 12-key keypad (0–9, *, #) to enable dual-factor authentication using card and PIN.
• Offers flexible connectivity via RS-485 and Wiegand (W26/W34) interfaces for seamless system integration.
• Constructed with a PC and zinc-alloy shell, rated IP65 for weatherproofing and IK10 for vandal resistance.
• Includes a built-in buzzer and tri-color LED indicator for real-time visual and audible user feedback.
• Equipped with a tamper-proof alarm that triggers if the device is physically compromised.
• Configurable via rear DIP switches, allowing parameter adjustments without software intervention.
• Operates on DC 12V ±10% with a power consumption of ≤ 2W.
