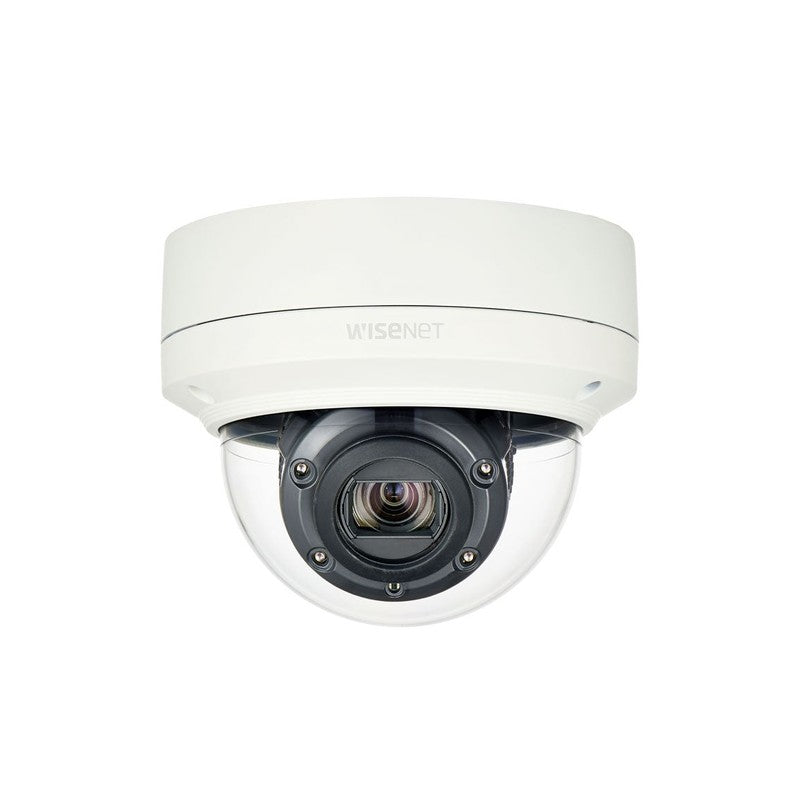

Hanwha Xnv-6120r – 2MP Outdoor Varifocal IR Vandal Dome Camera (12× Optical Zoom)
SKU: XNV6120R
$1,764.15
The Hanwha XNV-6120R is a 2MP outdoor varifocal IR vandal dome camera engineered for perimeter security in demanding environments. It features a 12× optical zoom lens with a focal length range of 5.2 to 62.4 mm, providing a horizontal field of view from 54.6° to 5.3° to accommodate both wide-area monitoring and detailed long-range inspection.
Key Features
- 12× optical varifocal lens (5.2–62.4 mm) with horizontal field of view ranging from 54.6° to 5.3°
- 2MP 1/2.8-inch CMOS sensor supporting Full HD video at up to 60 fps
- 70 m infrared illumination for clear imaging in low-light conditions
- 150 dB Wide Dynamic Range (WDR) for consistent detail in high-contrast scenes
- Integrated analytics for loitering detection, intrusion alerts, and sound classification
- IP67, IK10, and NEMA 4X ratings for resilience against weather, vandalism, and industrial exposure
Technical Specifications
| Model | XNV-6120R |
| Camera Type | 2MP Outdoor Varifocal IR Vandal Dome |
| Image Sensor | 1/2.8-inch CMOS |
| Resolution | 1920 x 1080 (Full HD) |
| Frame Rate | Up to 60 fps |
| Lens | 5.2-62.4 mm (12x Optical Zoom) |
| Horizontal Field of View | 54.6 degrees (wide) to 5.3 degrees (telephoto) |
| Wide Dynamic Range | 150 dB |
| IR Range | Up to 70 m |
| Built-in Analytics | Loitering, Intrusion, Direction Detection, Tampering, Fog Detection, Sound Classification |
| Video Compression | H.265 / H.264 / MJPEG |
| Smart Codec | WiseStream II |
| Onboard Storage | Dual microSD/SDHC/SDXC slots (up to 512 GB total) |
| Ingress Protection | IP67 / IP66 |
| Vandal Resistance | IK10 |
| Corrosion Protection | NEMA 4X |
| Operating Temperature | -40 degrees C to +55 degrees C |
| Power Supply | PoE (IEEE 802.3at recommended) / 24V AC / 12V DC |
| Maximum Power Consumption | 18 W |
| Housing Material | Metal (weather and impact resistant), White RAL 9003 |
| Series | Hanwha Vision Wisenet X Series |
