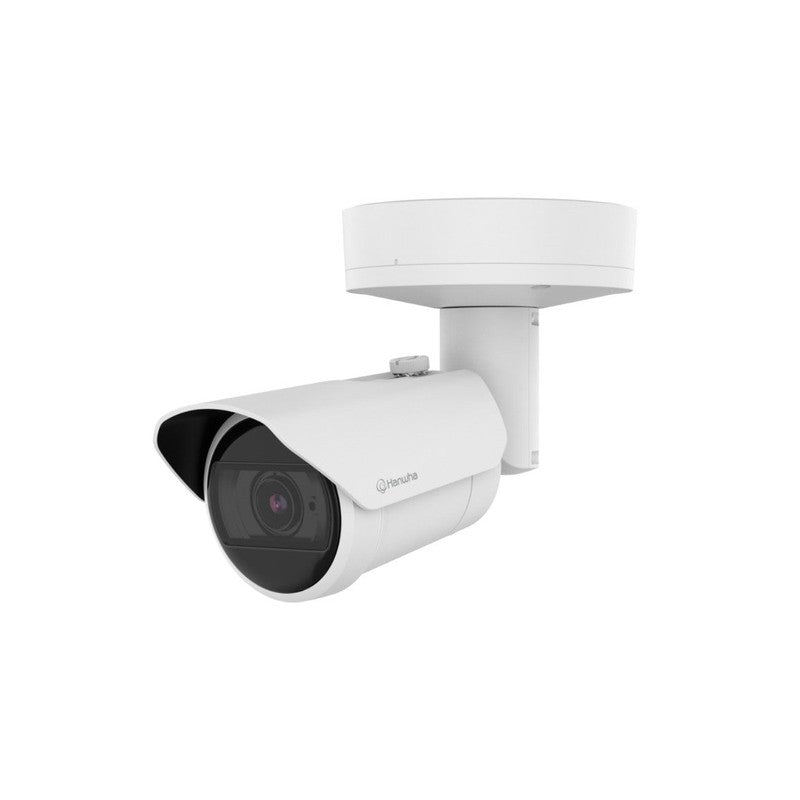

Hanwha Xno-a8084r 5MP AI IR Outdoor Vandal Bullet Camera (3.3–9.3 Mm Motorised Varifocal Lens)
SKU: XNOA8084R
$1,681.54
The Hanwha XNO-A8084R is a 5MP AI IR outdoor vandal bullet camera designed for demanding perimeter coverage, featuring a motorised 3.3–9.3 mm varifocal lens for flexible field-of-view adjustment. Engineered with the Wisenet 9 dual-NPU chipset, the device supports simultaneous image enhancement and real-time edge analytics while maintaining durability through IP66/IP67 ingress protection and IK10 impact resistance.
Key Features
- Motorised 3.3–9.3 mm varifocal lens providing 2.8x optical zoom and a field of view ranging from 99 to 31 degrees
- Wisenet 9 dual-NPU chipset enabling parallel processing for image quality and real-time object detection of people, vehicles, faces, and licence plates
- WiseIR illumination reaching up to 40 metres and 120 dB wide dynamic range for clear imagery in backlit or low-light conditions
- Business intelligence analytics including crowd and vehicle counting, queue management, and heat-mapping for edge-based monitoring
- Rugged housing with IP66/IP67 ingress rating, IK10 impact resistance, and NEMA 4X certification for industrial and outdoor environments
- On-board microSD storage support up to 1 TB for edge redundancy alongside network recording
Technical Specifications
| Model Number | XNO-A8084R |
| Camera Type | 5MP AI IR Outdoor Vandal Bullet Camera |
| Image Sensor | 1/2.8″ CMOS |
| Maximum Resolution | 2592 x 1944 (5MP) at up to 30 fps |
| Lens Type | Motorised varifocal 3.3-9.3 mm (2.8x zoom) |
| Horizontal Field of View | Approx. 99 degrees (wide) to approx. 31 degrees (tele) |
| Minimum Illumination | Colour: 0.04 lux (F1.3, 1/30s) / B&W: 0.004 lux (F1.3, 30 IRE) |
| IR Night Vision Range | Up to approx. 40 metres (WiseIR) |
| Wide Dynamic Range | 120 dB |
| Noise Reduction | WiseNR II |
| Video Compression | H.265 / H.264 / MJPEG |
| Smart Codec | WiseStream (AI-based adaptive compression) |
| AI Analytics | Person, face, vehicle, licence plate detection and attribute extraction; line/area crossing, loitering, intrusion, slip and fall, social distancing, face-mask detection; people/vehicle/crowd counting, queue management, heat-mapping, dynamic privacy masking |
| Edge Storage | microSD / SDHC / SDXC up to 1 TB |
| Power Supply | PoE (IEEE 802.3af) |
| Ingress Protection | IP66 / IP67 |
| Impact Resistance | IK10 |
| Other Environmental Ratings | NEMA 4X, NEMA TS 2 |
| Operating Temperature | -40 °C to +60 °C |
| Installation Port | USB-C for commissioning convenience |
