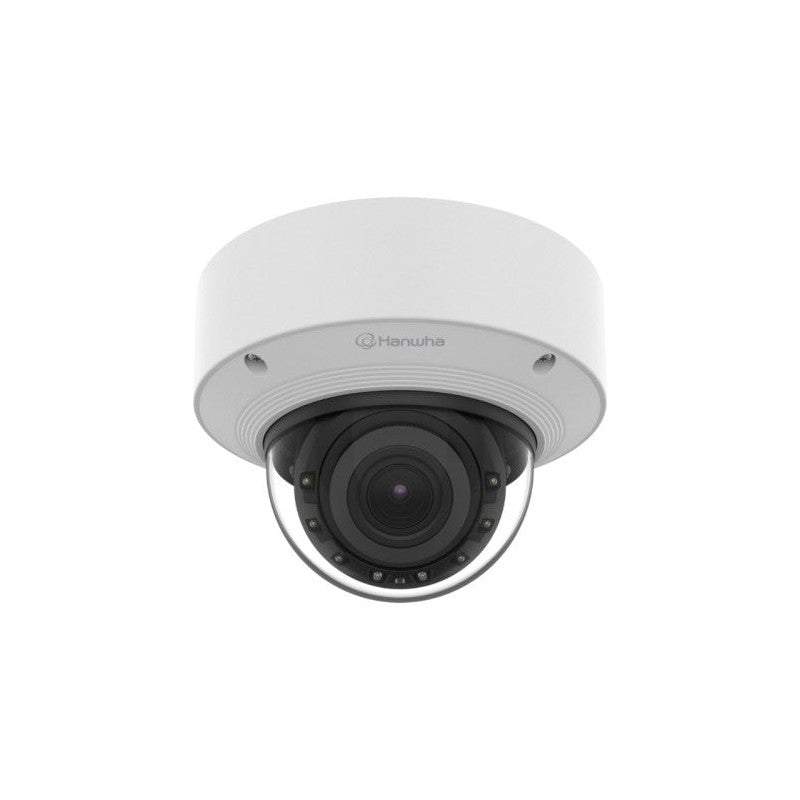

Hanwha Xnd-a8084rv 5MP AI IR Indoor Dome Camera (3.3-9.3 Mm Varifocal Lens)
SKU: XNDA8084RV
$1,451.57
The Hanwha XND-A8084RV 5MP AI IR Indoor Dome Camera (3.3-9.3 Mm Varifocal Lens) is a ceiling-mount surveillance solution designed for high-traffic indoor environments such as retail floors, hospitals, and corporate corridors. Powered by the Wisenet 9 dual-NPU chipset, this camera integrates AI-driven analytics with a motorised varifocal lens to provide both security accuracy and operational intelligence.
Key Features
- 5MP resolution with a 3.3 to 9.3 mm motorised varifocal lens, offering a horizontal field of view from 99 degrees wide to 31 degrees telephoto.
- Dual-NPU Wisenet 9 architecture enables simultaneous real-time classification of people, faces, vehicles, and licence plates alongside business analytics.
- 120 dB wide dynamic range combined with WiseNR II noise reduction maintains usable image quality across highly varied lighting conditions.
- IR illumination extends to 40 metres to ensure complete coverage in total darkness.
- AI-based WiseStream compression reduces bandwidth requirements without sacrificing image detail.
- Supports advanced business intelligence analytics including queue management, crowd heatmapping, slip and fall detection, and social distance monitoring.
- Motorised lens allows installers to adjust zoom and focus remotely via the NVR or camera interface, eliminating the need for physical access to high ceilings.
Technical Specifications
| Model Number | XND-A8084RV |
| Camera Type | 5MP AI IR Indoor Dome |
| Image Sensor | 1/2.8″ CMOS |
| Resolution | 2592 x 1944 |
| Frame Rate | Up to 30 fps |
| Lens | Motorised Varifocal 3.3-9.3 mm |
| Optical Zoom | 2.8x |
| Field of View (Horizontal) | 99 degrees (wide) to 31 degrees (tele) |
| Minimum Illumination | Colour: 0.04 lux (F1.3, 1/30s) / B&W: 0.004 lux (F1.3) |
| IR Range | Up to 40 m |
| Wide Dynamic Range | 120 dB |
| Noise Reduction | WiseNR II |
| Compression | H.265 / H.264 / MJPEG |
| Smart Codec | WiseStream (AI-based) |
| AI Chipset | Wisenet 9 Dual-NPU |
| AI Analytics | Person, Face, Vehicle, Licence Plate Detection; Slip & Fall Detection; Queue Management; Crowd Heatmap; Social Distance Monitoring |
| Privacy Masking | Dynamic Privacy Masking (DPM) |
| Ingress Protection | IP52 |
| Vandal Resistance | IK10 |
| Operating Temperature | -10 degrees C to +50 degrees C |
| Power Supply | PoE (IEEE 802.3af Class 3) |
| Power Consumption | Max 9.4 W |
| Edge Storage | microSD up to 1 TB |
| Dimensions | Diameter 160 mm x 118 mm |
| Weight | Approx. 1.0 kg |
| Compliance | NDAA-compliant |
| Manufacturer | Hanwha Vision (Wisenet X Series Gen 2) |
