Hanwha Wisenet Xrn-1620sb1 16ch POE Nvr, AI Search, H.265, 140mbps, No HDD (4 Sata 24tb)
SKU: XRN1620SB1
$2,237.66

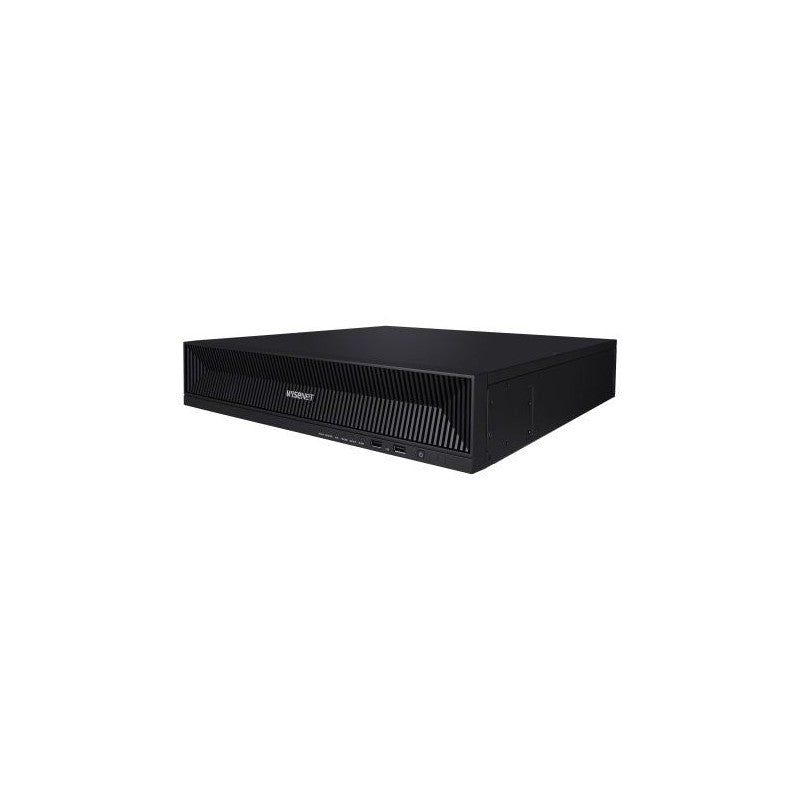

The Hanwha Wisenet XRN-1620SB1 is a 16-channel PoE NVR engineered for commercial and enterprise IP camera installations. This rack-mount unit serves as the central recording hub for structured surveillance systems, supporting up to 24TB of storage capacity across four SATA bays.
Key Features
- 16-channel PoE NVR with 140Mbps total bandwidth
- Four SATA bays supporting up to 24TB of total storage
- AI-powered search capabilities for efficient footage retrieval
- H.265 compression standard for optimized storage efficiency
- Rack-mount design suitable for centralised commercial deployments
- Designed for integration with structured IP camera systems
Technical Specifications
| Model | Hanwha Wisenet XRN-1620SB1 |
| Video Inputs | Up to 16 channels |
| Maximum Recording Resolution | 32MP |
| Recording Bandwidth | Max 140Mbps |
| Video Compression | H.265, H.264, MJPEG |
| HDMI Output (UHD) | Up to 3840×2160 (single monitor) |
| Local Display (FHD) | HDMI and VGA dual monitor |
| PoE Ports | 16 built-in PoE ports |
| PoE Budget | 200W total |
| HDD Bays | 4 x SATA |
| Maximum Storage Capacity | Up to 24TB |
| Included HDD | None (sold separately) |
| Network Protocols | SUNAPI, ONVIF |
| AI Search | Supported with compatible Wisenet AI cameras |
| Power Input | 100-240V AC |
| Power Consumption | Max 310W |
| Colour / Material | Black, metal |
| Dimensions | 440mm x 89.8mm x 428.4mm |
| Weight | 5.76kg |
