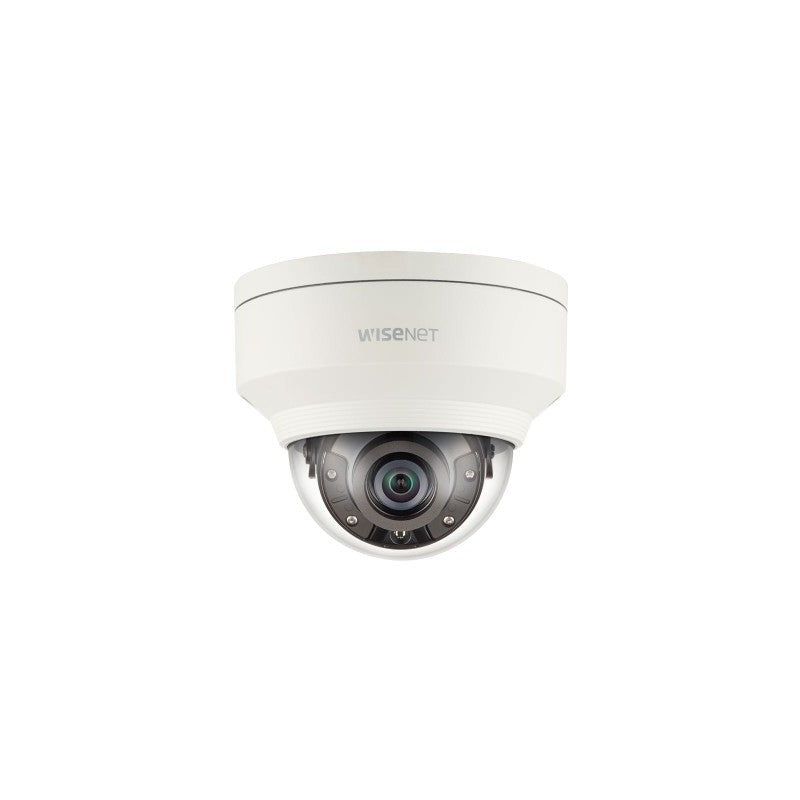

Hanwha Wisenet Xnv-8020r 5MP Outdoor Dome Camera, H.265, 30fps, 120db Wdr, 30m Ir, 3.7mm
SKU: XNV8020R
$1,134.46
The Hanwha Wisenet XNV-8020R is a 5MP outdoor dome camera engineered for commercial and public-space installations requiring high-resolution surveillance and advanced analytics. It features a 3.7mm fixed lens, 120dB WDR, and 30m IR range, making it suitable for building entrances, car parks, and semi-exposed outdoor areas.
Key Features
- 5MP resolution (2560 x 1920) with a 1/1.8″ CMOS sensor and 3.7mm fixed lens
- 120dB Wide Dynamic Range (WDR) with ICR day/night switching for high-contrast and low-light scenes
- 30m infrared range for clear visibility in full darkness
- H.265 compression with WiseStream II technology to reduce bandwidth and storage demands by up to 99%
- On-board analytics engine supporting people counting, queue management, loitering detection, and heatmap analysis
- IK10 vandal resistance and IP66/IP67 (NEMA 4X) weatherproofing for demanding outdoor environments
- Flexible power options including PoE, 24V AC, or 12V DC
Technical Specifications
| Resolution | 5MP (2560 x 1920) |
| Image Sensor | 1/1.8″ 6M CMOS progressive scan |
| Lens | 3.7mm fixed |
| Frame Rate | Max. 30fps at all resolutions (H.265 / H.264) |
| Video Compression | H.265, H.264, MJPEG – multiple streaming supported |
| Wide Dynamic Range | 120dB WDR |
| Minimum Illumination (Colour) | 0.16 lux (F1.6, 1/30sec) |
| Minimum Illumination (B/W) | 0 lux (IR LED on) |
| IR Range | 30m |
| Day/Night | ICR (true day/night), defog |
| Analytics | Loitering detection, directional detection, people counting, queue management, heatmap, digital auto tracking, sound classification, fog detection, PTZ handover, motion detection, tampering, audio detection |
| Lens Distortion Correction | LDC supported |
| Hallway View | Supported |
| Local Storage | SD/SDHC/SDXC slot, max. 512GB |
| Network Interface | RJ-45 10/100Base-T Ethernet |
| Power | PoE (IEEE 802.3af), 24V AC, 12V DC |
| Audio | Bi-directional audio support |
| Weatherproofing | IP66/IP67, NEMA 4X |
| Vandal Resistance | IK10 |
| Housing | Ivory, metal |
| Dimensions | 120 x 97.5mm |
| Weight | 615g |
