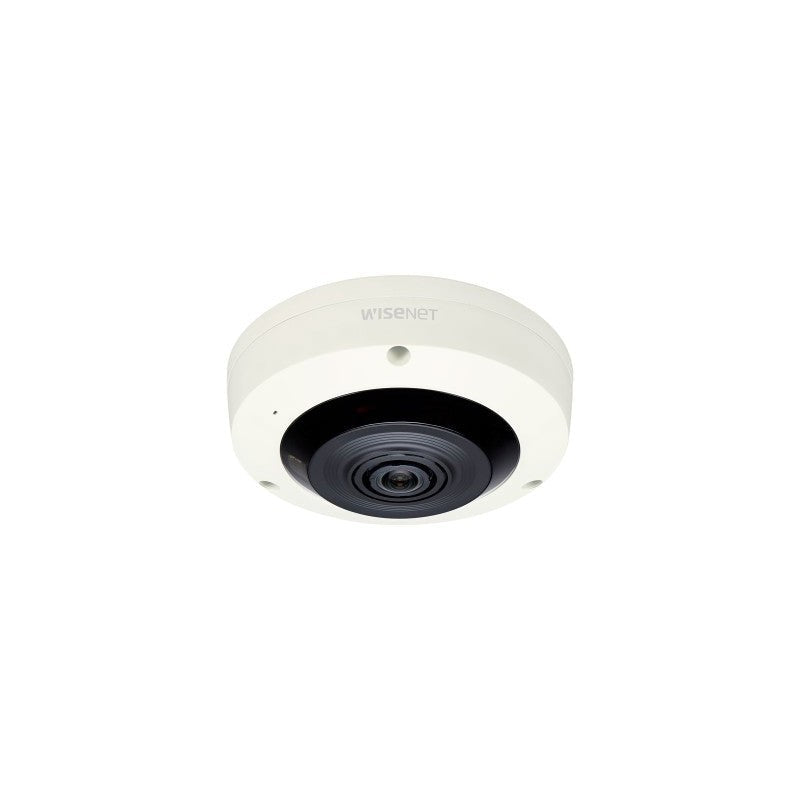

Hanwha Wisenet Xnf-8010r 6MP Indoor Fisheye Camera, H.265, 30fps, 120db Wdr, 15m Ir, 1.6mm
SKU: XNF8010R
$1,166.75
The Hanwha Wisenet XNF-8010R is a 6MP indoor fisheye camera engineered for wide-area monitoring from a single ceiling mount. It features a 1.6mm fixed lens with a 192-degree field of view, enabling comprehensive coverage of open-plan spaces, retail floors, and reception areas while eliminating blind spots.
Key Features
- 192-degree hemispheric field of view with a 1.6mm F1.6 fixed lens
- On-board dewarping and 8x digital PTZ for real-time image navigation without mechanical movement
- H.265 compression with WiseStream II technology, reducing bandwidth consumption by up to 99% compared to H.264
- 120dB WDR for clear imaging in high-contrast lighting environments
- 15m IR illumination for effective low-light coverage
- Supports up to 512GB local SD card storage
- Integrated analytics suite including people counting, queue management, heatmapping, loitering detection, and sound classification
Technical Specifications
| Model | Hanwha Wisenet XNF-8010R |
| Resolution | 6MP, 2048 x 2048 |
| Image Sensor | 1/1.8″ 6MP CMOS progressive scan |
| Lens | 1.6mm fixed, F1.6 |
| Field of View | 192 degrees (horizontal, vertical, and diagonal) |
| Minimum Illumination | Colour: 0.1 Lux (F1.6), B/W: 0 Lux (IR LED on) |
| IR Range | 15m |
| WDR | 120dB |
| Video Codecs | H.265, H.264, MJPEG |
| Frame Rate | 30fps |
| Compression | WiseStream II (up to 99% data reduction with H.265) |
| On-Board Dewarping | Yes, with 8x digital PTZ |
| Audio | Bi-directional (built-in microphone and speaker) |
| Analytics | Tampering, loitering, directional detection, audio detection, sound classification, heatmap, people counting, queue management, motion detection, fog detection, lens distortion correction, PTZ handover |
| Local Storage | SD/SDHC/SDXC slot, up to 512GB |
| Network Interface | RJ-45 10/100Base-T Ethernet |
| Power | 12V DC / PoE |
| Housing | Ivory, aluminium |
| Dimensions | 146 x 54.8mm |
| Weight | 730g |
