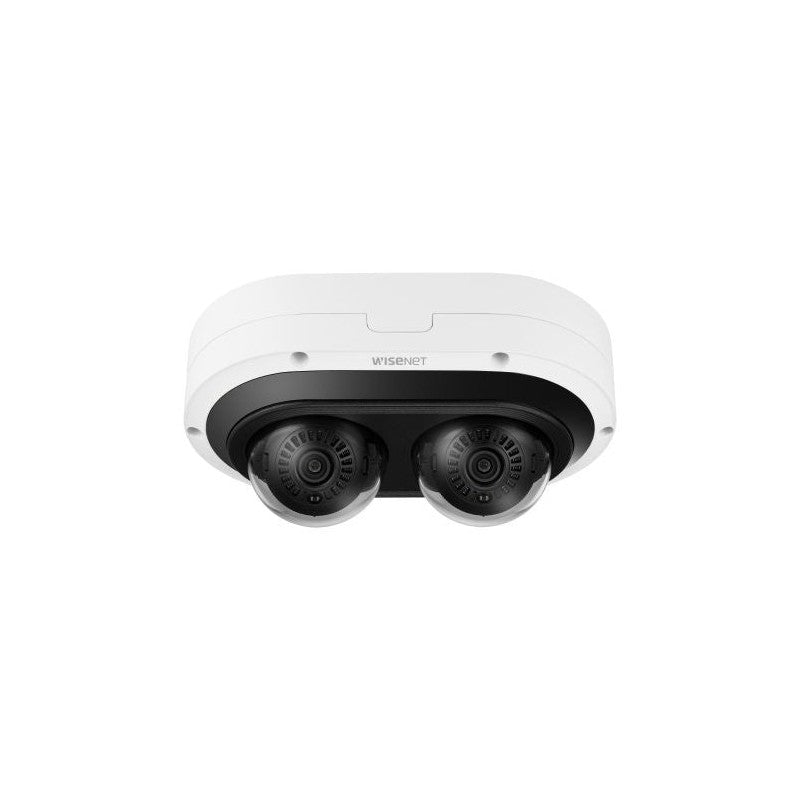

Hanwha Wisenet PNM-C12083RV 2x 6MP Outdoor AI Multi Directional Camera, 2ch, 3.54-6.69mm
SKU: PNMC12083RVD
$2,371.05
The Hanwha Wisenet PNM-C12083RV is a dual-channel outdoor AI camera engineered to consolidate wide-area monitoring at corners and perimeters into a single mounting point. This unit integrates two independent 6MP sensors with motorised varifocal optics, allowing for precise remote framing of two distinct viewing directions without the need for additional cabling or hardware.
Key Features
- Dual 1/2.8″ CMOS sensors delivering 3328 x 1872 resolution per channel from a single housing
- Motorised varifocal lenses spanning 3.54 to 6.69mm with a 78-degree tilt range for independent remote adjustment
- On-board AI processing for real-time classification of persons, faces, vehicles, and licence plates
- WiseNRII technology to reduce image blur in low-light conditions, paired with 25m IR illumination per channel
- IP66, IK10, and NEMA4X ratings for durability in exposed outdoor environments
- Single PoE+ connection for power and data, simplifying installation and reducing conduit penetrations
- Local edge recording support via microSD card up to 512GB for immediate backup
Technical Specifications
| Model | Hanwha Wisenet PNM-C12083RV |
| SKU | PNM-C12083RVD |
| Sensor | 1/2.8″ CMOS progressive scan x 2 channels |
| Resolution | 6MP x 2 (3328 x 1872 per channel) |
| Maximum Frame Rate | 15fps at 6MP per channel |
| Lens | 3.54-6.69mm motorised varifocal, fixed iris, 78-degree tilt angle |
| Minimum Illumination (Colour) | 0.16 Lux (F1.67, 1/30sec, 30IRE) |
| Minimum Illumination (B/W) | 0.016 Lux (F1.67, 1/30sec, 30IRE); 0 Lux with IR on |
| IR Range | Up to 25m per channel |
| Day/Night | Auto ICR (true day/night) |
| Wide Dynamic Range | Extreme WDR 120dB |
| Video Compression | H.265, H.264, MJPEG; WiseStreamIII |
| AI Analytics | Person, Face, Vehicle, Licence Plate classification; BestShot; virtual line crossing; area intrusion/exit; loitering; directional movement; appear/disappear; audio analytics; tampering |
| Network | RJ-45 10/100/1000 Base-T Ethernet |
| Power | PoE+ (IEEE 802.3at, Class 4) |
| Local Storage | microSD, up to 512GB |
| Ingress Protection | IP66, IK10, NEMA4X |
| Operating Temperature | -40°C to +55°C |
| Cybersecurity | FIPS 140-2 compliant |
| Noise Reduction | WiseNRII (AI-based) |
