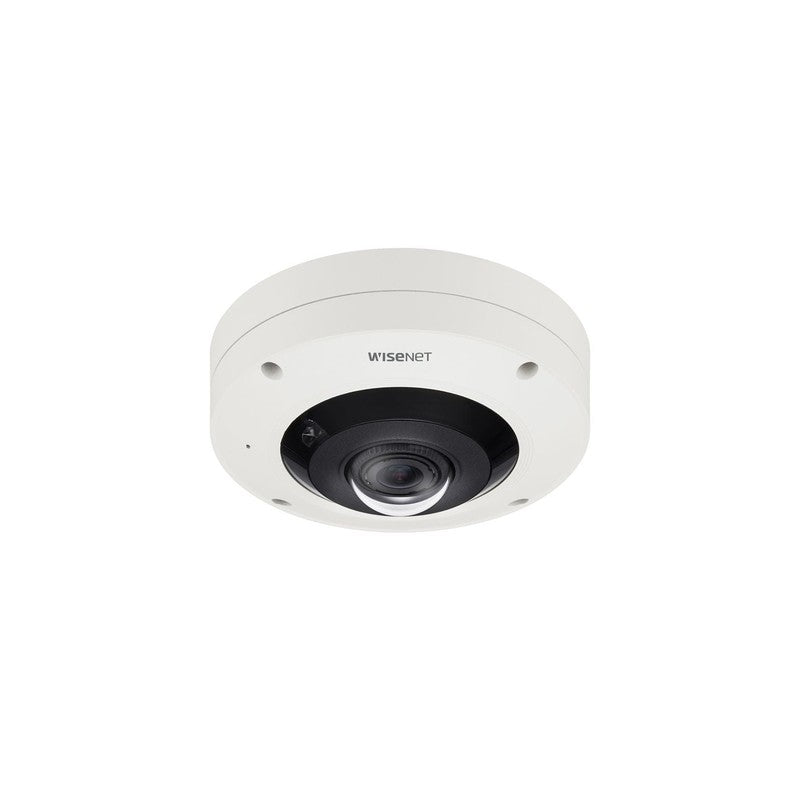

Hanwha Wisenet Han-xnf-9010rv 12MP Outdoor Fisheye Camera, H.265, 30fps, 120db Wdr, 10m IR
SKU: HANXNF9010RV
$1,461.41
The Hanwha Wisenet Han-xnf-9010rv 12MP Outdoor Fisheye Camera is a high-resolution surveillance solution engineered for wide-area monitoring from a single ceiling-mounted position. This device delivers a 187-degree field of view at 12MP resolution, eliminating blind spots in lobbies, courtyards, and open-plan spaces while supporting on-board dewarping and 8x digital PTZ for detailed real-time inspection.
Key Features
- 12MP resolution (3008 x 3008) at 30fps for detailed forensic review of wide spaces
- 187-degree horizontal, vertical, and diagonal field of view with a 1.08mm F2.2 fixed lens
- On-board dewarping converts raw fisheye images into flat or panoramic views without NVR dependency
- 8x digital PTZ capability allows operators to zoom into specific zones within the dewarped stream
- True WDR at 120dB manages high-contrast environments with bright windows and shadowed zones
- IP66 and IK10 ratings ensure durability for outdoor ceiling and soffit installations exposed to weather and physical impact
- Integrated analytics suite includes people counting, heatmap, queue management, loitering detection, and sound classification
Technical Specifications
| Image Sensor | 1/2.3″ 12MP CMOS progressive scan |
| Maximum Resolution | 3008 x 3008 |
| Frame Rate | Up to 30fps |
| Lens | 1.08mm fixed lens, F2.2 |
| Field of View | 187 degrees horizontal, vertical, and diagonal |
| Minimum Illumination | Colour: 0.39 Lux (F2.2) / Black and White: 0 Lux (IR LED on) |
| IR Range | 10m |
| WDR | True WDR, 120dB |
| Video Compression | H.265, H.264, MJPEG |
| Compression Technology | WiseStream II (up to 99% data reduction with H.265) |
| Dewarping and PTZ | On-board dewarping, digital PTZ (8x), variable view mode |
| Audio | Bi-directional audio |
| Analytics | Tampering, loitering, directional detection, audio detection, sound classification, heatmap, people counting, queue management, motion detection, handover, fog detection, lens distortion correction |
| Local Storage | SD / SDHC / SDXC memory card slot |
| Power | 12V DC / PoE |
| Network Interface | RJ-45 10/100Base-T Ethernet |
| Protection Rating | IP66, IK10 |
| Housing | White aluminium |
| Dimensions | 160 x 72mm |
| Weight | 1100g |
