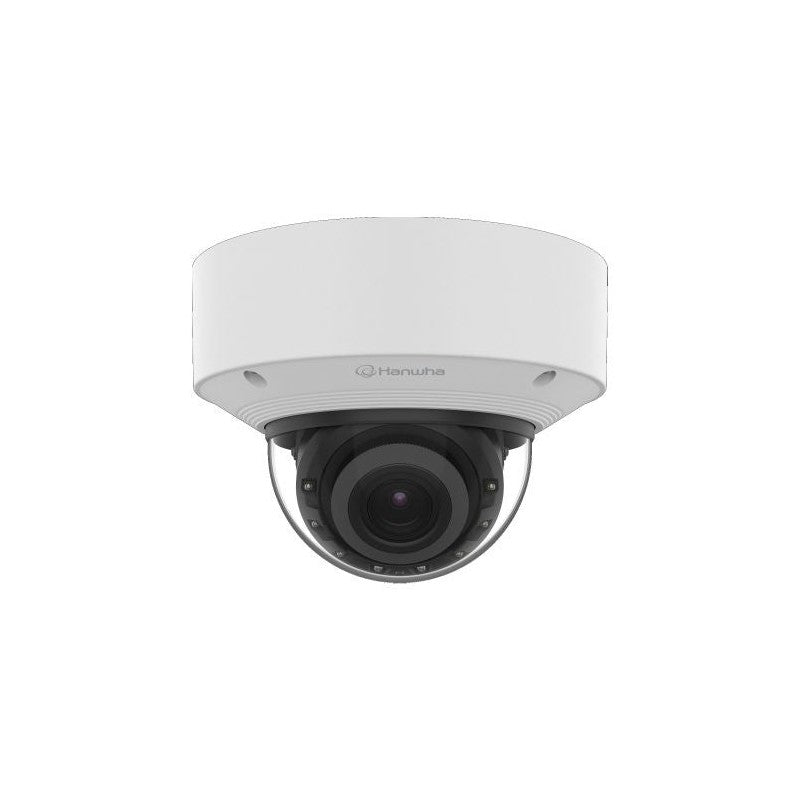

Hanwha Vision Xnv-a9084r X-series 8MP Vandal Dome AI Camera
SKU: XNVA9084R
$1,853.77
The Hanwha Vision XNV-A9084R is an 8MP vandal dome camera engineered for outdoor installations requiring high-resolution imaging and advanced AI analytics. Built on the Wisenet 9 platform, it combines 4K video capture with a dual NPU AI engine to deliver detailed surveillance for perimeter walls, car parks, and external building facades.
Key Features
- 8MP 4K resolution (3840 x 2160) captured on a 1/1.8″ CMOS sensor for enhanced low-light sensitivity and detail.
- Dual NPU AI engine processes person, face, vehicle, and licence plate detection alongside behavioural analytics such as intrusion and loitering.
- 4.4-9.3mm motorised varifocal lens allows remote adjustment of field of view from 113 degrees to 47 degrees without physical repositioning.
- WiseIR illumination rated to 40-50 metres adjusts infrared intensity relative to subject distance for consistent night vision.
- Robust housing with IP66, IP67, IK10, and NEMA ratings ensures resistance to weather and deliberate impact in outdoor environments.
- Compact dome profile suitable for ceiling and wall installations in areas such as loading docks and car park ceilings.
Technical Specifications
| Resolution | 8MP (3840 x 2160) |
| Image Sensor | 1/1.8″ CMOS |
| Lens Type | 4.4-9.3mm motorised varifocal (2.1x zoom) |
| Field of View | Approx. 113° (wide) to 47° (tele) |
| Frame Rate | Up to 30fps |
| IR Night Vision | WiseIR up to approx. 40-50m |
| Wide Dynamic Range | 120dB |
| Video Compression | H.265, H.264, MJPEG |
| AI Analytics Platform | Wisenet 9 with dual NPU |
| Object Detection | Person, face, vehicle, licence plate |
| Behavioural Analytics | Intrusion detection, loitering, line crossing, directional movement |
| Business Intelligence | People counting, heat mapping |
| Local Storage | microSD card slot |
| Weather Protection | IP66, IP67, NEMA rated |
| Vandal Resistance | IK10 |
| Camera Type | Vandal dome |
