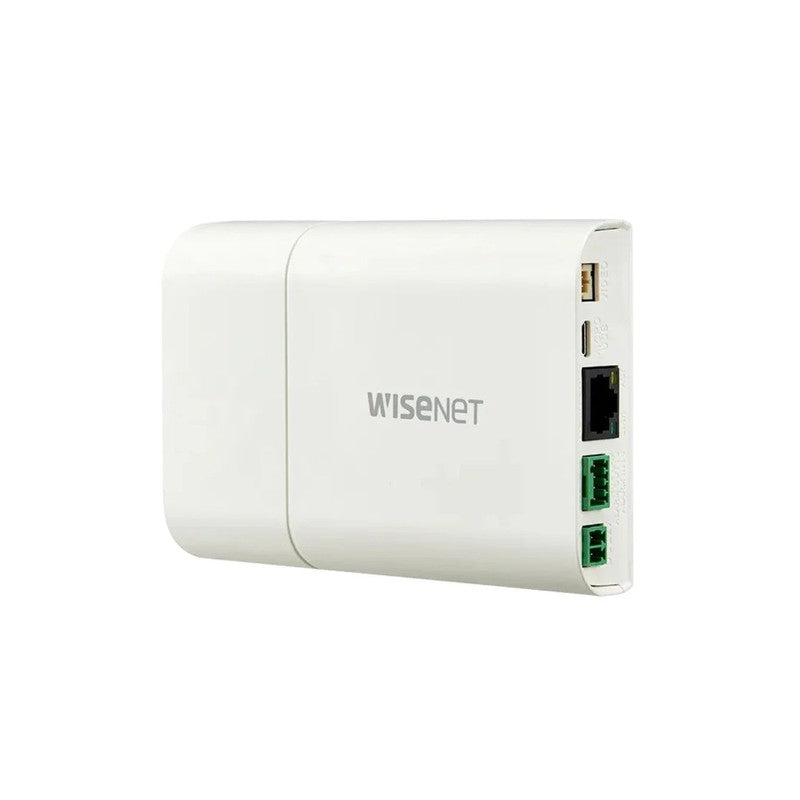

Hanwha Vision Xnb-6001 2MP Covert Camera Main Module
SKU: SLAT46801
$658.15
The Hanwha Vision XNB-6001 2MP Covert Camera Main Module is a remote-head surveillance unit designed for installations where space constraints require the lens to be separated from the camera body. This main module supports Full HD 1920 x 1080 resolution at up to 60fps and features 120dB Wide Dynamic Range to maintain image clarity in high-contrast environments such as ATMs, retail counters, and access-controlled doorways.
Key Features
- 2MP Full HD resolution (1920 x 1080) with streaming up to 60fps
- 120dB Wide Dynamic Range with BLC, HLC, SSDR, and defog processing
- H.265 and H.264 compression with WiseStream II bandwidth reduction
- Remote-head architecture allowing the lens module to be mounted separately from the main unit
- Edge storage support via microSD card up to 256GB
- Integrated audio input and output ports for two-way communication
- Alarm input and output capabilities for system integration
- Power options via PoE or 12V DC
Technical Specifications
| Model | XNB-6001 |
| Product Type | 2MP Covert Camera Main Module (lens module required separately) |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720 and lower |
| Max Frame Rate | H.265/H.264: up to 60fps (50fps); MJPEG: up to 30fps (25fps) |
| Video Compression | H.265, H.264, MJPEG |
| Streaming Profiles | Multiple streaming, up to 10 profiles |
| Wide Dynamic Range | 120dB |
| Day / Night | Auto electrical |
| Image Enhancements | BLC, HLC, WDR, SSDR, SSNR V, Defog, DIS, LDC |
| Motion Detection | 8 zones, 8-point polygonal zones |
| Privacy Masking | 32 zones |
| Analytics | Motion detection, tampering, loitering, directional detection, face detection, enter/exit, appear/disappear, virtual line, digital auto tracking, defocus detection, fog detection |
| Audio Input | Selectable mic in / line in (external connection) |
| Audio Output | Line out (external connection) |
| Alarm I/O | 1 input / 1 output |
| Edge Storage | microSD/SDHC/SDXC, 1 slot, up to 256GB |
| Network Interface | RJ-45 10/100BASE-T |
| ONVIF | Profile S/G/T |
| Power Input | PoE IEEE 802.3af Class 3 or 12V DC |
| Power Consumption | PoE max 6.5W / 12V DC max 6W |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 131.1 x 28 x 86mm |
| Weight | 245g |
| Colour / Material | Ivory / Plastic |
