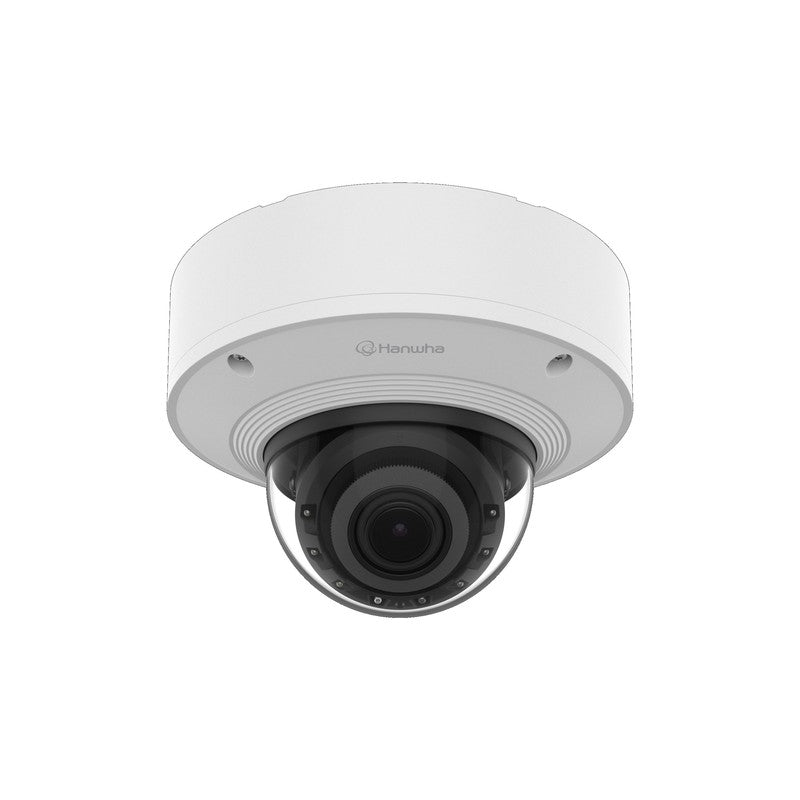

Hanwha Vision X-series Xnv-a8085r 5MP AI IR Modular Vandal Dome Camera
SKU: XNVA8085R
$1,819.37
The Hanwha Vision XNV-A8085R is a 5MP AI IR modular vandal dome camera designed for commercial, industrial, and public-space environments. It integrates a dual NPU AI engine with a modular magnetic housing to provide intelligent analytics and rapid serviceability for ceiling-mounted applications.
Key Features
- 5MP resolution with a 1/2.8″ CMOS sensor and 3.3-9.3mm motorised varifocal lens for remote field-of-view adjustment.
- Dual NPU AI engine processes image enhancement and real-time classification of persons, faces, vehicles, and licence plates onboard.
- Modular magnetic design separates the camera module from the base unit, enabling faster installation and servicing without full removal.
- WiseIR technology provides infrared illumination up to approximately 50 metres for reliable night vision in complete darkness.
- Supports behavioural analytics including intrusion, loitering, directional movement, and people counting.
- IP66/IP67/IP6K9K and IK11 ratings ensure durability for exposed and high-risk indoor or outdoor ceiling positions.
- Dual microSD card slots provide onboard storage redundancy.
Technical Specifications
| Resolution | 5MP (2560 x 1920) |
| Image Sensor | 1/2.8″ CMOS |
| Lens Type | Motorised varifocal, 3.3-9.3mm (2.8x zoom) |
| Frame Rate | Up to 30fps |
| Night Vision | WiseIR infrared, up to approximately 50m |
| AI Analytics | Person, face, vehicle, licence plate detection; intrusion, loitering, directional detection, people counting |
| AI Processing | Dual NPU onboard |
| Video Compression | H.265, H.264, MJPEG |
| Power Supply | PoE, PoE+, 12V DC |
| Onboard Storage | Dual microSD card slots |
| Weather Protection | IP66, IP67, IP6K9K, NEMA rated |
| Vandal Resistance | IK11 |
| Housing Type | Modular magnetic vandal dome |
| Product Series | Hanwha Vision X-Series |
