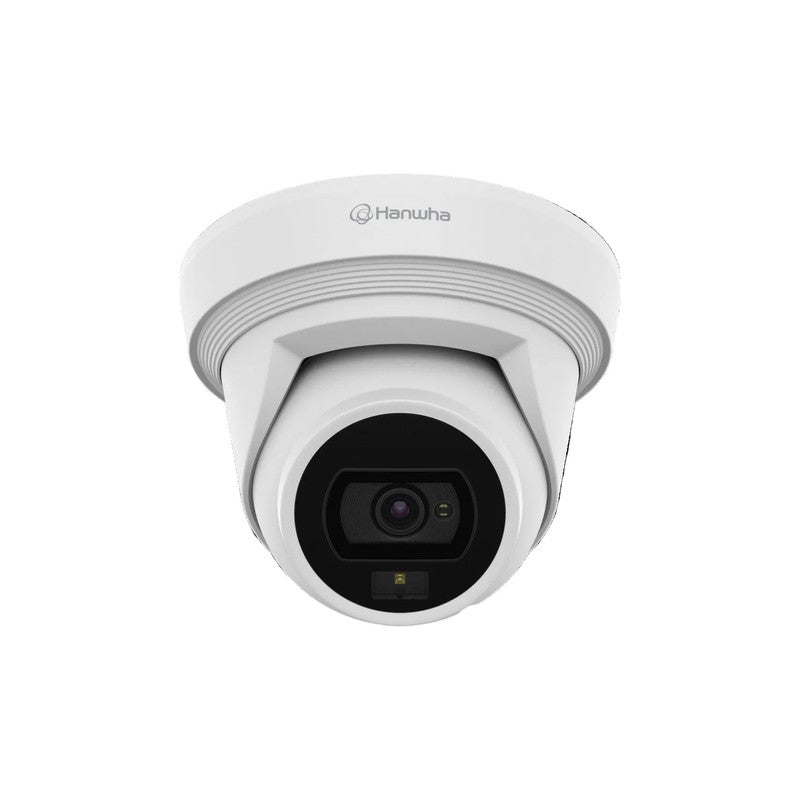

Hanwha Vision Qne-c9013rl 8MP / 4K H.265 IR Flateye Camera
SKU: QNEC9013RL
$1,437.72
The Hanwha Vision QNE-C9013RL is an 8MP 4K flat-eye network camera designed for flush mounting on ceilings and walls in both indoor and outdoor environments. It combines AI-driven object classification with dual-light illumination to provide full-colour night footage and detailed 4K recording at up to 30fps.
Key Features
- 8MP 1/2.8″ CMOS sensor with a fixed 3.0mm lens delivering a 108-degree horizontal field of view
- AI-triggered dual-light system featuring 3000K warm white LED and 850nm IR LEDs, each with a 30m range
- Integrates WiseStream III AI-based compression, WiseNR II AI noise reduction, and 120dB WDR
- Onboard AI analytics for person and vehicle classification, including virtual line, area, loitering, and intrusion detection
- IP66/IP67 ingress protection and IK10 impact resistance for exposed outdoor installations
- Records 3840×2160 resolution at up to 30fps using H.265 or H.264 compression
Technical Specifications
| Image Sensor | 1/2.8″ CMOS |
| Resolution | Max. 8MP (3840×2160) |
| Max. Frame Rate | H.265/H.264: Max. 30fps (60Hz) / 25fps (50Hz); MJPEG: Max. 5fps at 8MP |
| Focal Length | 3.0mm fixed |
| Max. Aperture | F1.6 |
| Field of View | H: 108° / V: 59° / D: 127° |
| Min. Illumination | Colour: 0.034 lux (F1.6, 1/30sec); BW: 0.0034 lux (F1.6, 1/30sec, 30IRE); 0 lux (IR LED on) |
| Light Type | Dual light: 3000K warm white LED and 850nm IR LED |
| IR / White LED Range | Both: 30m (98.42ft) |
| Wide Dynamic Range | 120dB |
| Video Compression | H.265, H.264 (Main/High), MJPEG |
| Smart Codec | WiseStream III (AI engine based) |
| AI Analytics | Object classification (Person, Vehicle: car/bus/truck/motorcycle/bicycle); Virtual line, Virtual area (Loitering, Intrusion, Enter, Exit); DetectionShot; People counting; Vehicle counting; Queue management; Heatmap |
| Edge Storage | Micro SD/SDHC/SDXC, 1 slot, up to 256GB |
| Network Interface | RJ-45 (10/100BASE-T) |
| Power | PoE (IEEE802.3af, Class 3); Max. 10.0W, typical 4.5W |
| Weather/Vandal Rating | IP66/IP67, IK10 |
| Operating Temperature | -40°C to +60°C (start-up above -30°C) |
| Dimensions / Weight | 140.0 x 99.6mm / 790g |
| ONVIF / API | ONVIF Profile S/G/T/M; SUNAPI (HTTP API) |
