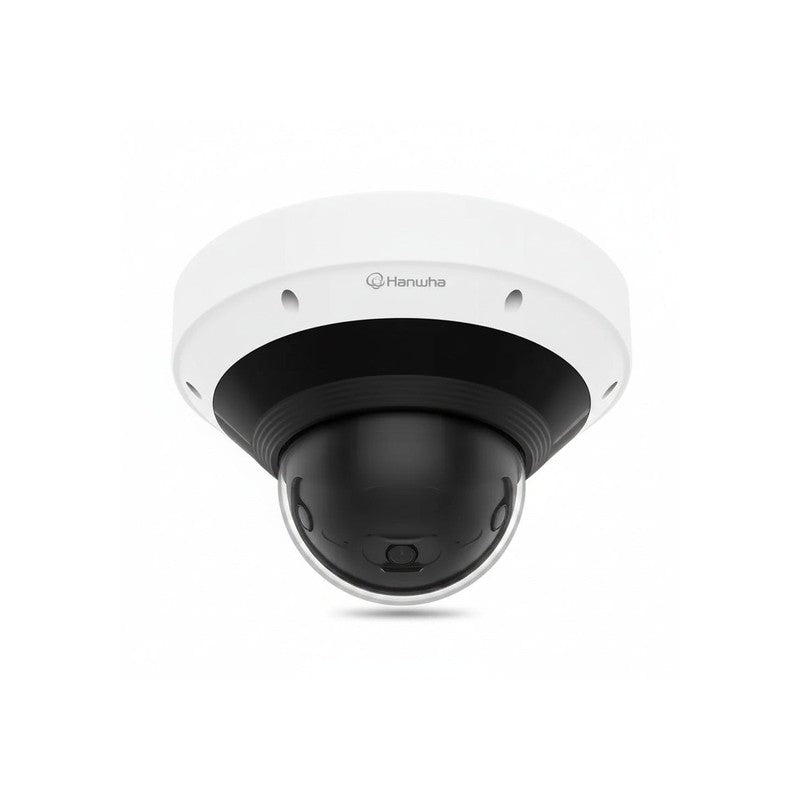

Hikvision Hanwha Vision Pnm-a13022rv 13mp AI IR Panoramic Network Camera
SKU: PNMA13022RV
$3,430.05
The Hikvision Hanwha Vision Pnm-a13022rv 13mp AI IR Panoramic Network Camera is a wide-area surveillance solution designed to reduce camera count in large environments such as car parks, warehouses, and campuses. It delivers a stitched 13MP image with a 194° horizontal field of view, integrating advanced AI analytics and robust environmental protection for professional outdoor deployments.
Key Features
- 13MP panoramic resolution of 5120 x 2592 with a 194° horizontal and 93° vertical field of view
- Onboard AI engine for object detection of people, faces, vehicles, and licence plates
- Business intelligence analytics including people counting, vehicle counting, crowd counting, and heatmap generation
- WiseIR night vision up to 20m with four individually adjustable IR zones
- 120dB WDR and WiseNRII technology for handling challenging lighting conditions
- IP66, NEMA4X, and IK10 protection ratings for demanding outdoor environments
- FIPS 140-3 level 3 and CC EAL6+ certified cybersecurity
Technical Specifications
| Model | PNM-A13022RV |
| Product Type | 13MP AI IR panoramic network camera |
| Maximum Resolution | 5120 x 2592 |
| Image Sensor | 1/2.8″ CMOS |
| Lens | 3.06mm fixed lens, F1.6 |
| Field of View | 194° horizontal, 93° vertical |
| Minimum Object Distance | 5m |
| Maximum Frame Rate | H.265/H.264 up to 30fps/25fps, MJPEG up to 30fps |
| Video Compression | H.265, H.264, MJPEG |
| Day/Night | Auto ICR |
| Minimum Illumination | Colour 0.1 lux, black and white 0.01 lux |
| IR Distance | WiseIR up to 20m, 4 individually adjustable IR zones |
| Wide Dynamic Range | 120dB WDR |
| Digital Noise Reduction | WiseNRII (AI engine), SSNRV |
| Smart Codec | WiseStream (AI engine), Manual |
| AI Object Detection | Person, face, vehicle, licence plate |
| AI Analytics Events | Object detection, virtual line, virtual area, motion detection, face mask detection, social distancing detection, slip and fall detection |
| Business Intelligence | People counting, vehicle counting, crowd counting, queue management, heatmap |
| Attributes | Person clothing colour, gender, bag; vehicle type, colour; face age, gender, face mask, glasses |
| Audio | Selectable mic in/line in, line out |
| Alarm I/O | 2 configurable I/O ports, optional extra alarm I/O via I/O box |
| Edge Storage | 2 x microSD/SDHC/SDXC slots, up to 1TB per slot, 2TB total |
| Network Interface | RJ-45 10/100/1000BASE-T |
| ONVIF | Profiles S, G, T, M |
| Power Input | PoE+ IEEE 802.3at Class 4 or 12VDC |
| Power Consumption | PoE+ max 22.3W, typical 11.5W. 12VDC max 20.0W, typical 10.0W. |
| Operating Temperature | -40°C to +55°C |
| Weather and Impact Rating | IP66, NEMA4X, IK10 |
| Housing Material | Aluminium, hard-coated dome |
| Colour | White, RAL9003 |
| Dimensions | 253mm diameter x 170mm |
| Weight | 2.8kg |
| Cybersecurity | Secure boot, signed firmware, device certificate, encrypted storage, secure element, FIPS 140-3 level 3 / CC EAL6+ certified |
