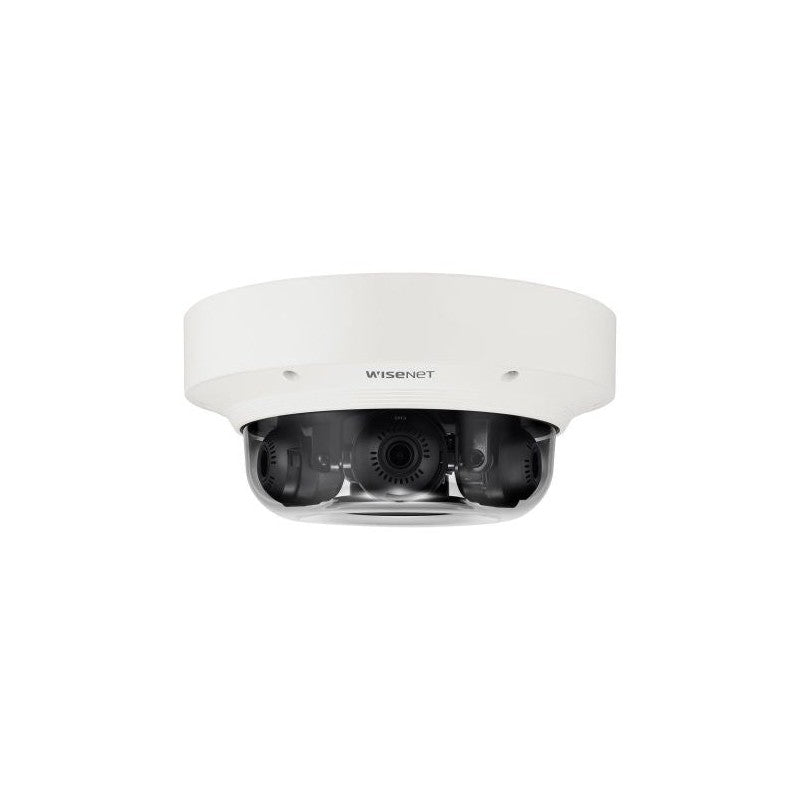

Hikvision Hanwha Vision Pnm-9084qz | 8MP 4-sensor Multi-directional Ptrz IP Camera – Intelligent Analytics, Wdr, Ip66
SKU: PNM9084QZ
$3,849.67
The Hikvision Hanwha Vision Pnm-9084qz is a multi-directional IP camera designed to deliver wide-area coverage across complex perimeters using four independent 2MP sensors within a single housing. This unit provides a combined 8MP resolution at up to 60fps under one network address, eliminating the need for multiple separate camera installations and cable runs.
Key Features
- Four independent 2MP sensors delivering a combined 8MP resolution at up to 60fps
- Motorised vari-focal lenses with a 3.0 to 6.0mm range per sensor
- Full remote PTRZ adjustment including a 90-degree look-down tilt capability
- Onboard intelligent analytics for loitering, directional detection, fog, tampering, and zone entry/exit
- IP66, IK10, and NEMA4X rated construction for outdoor and vandal-resistant environments
- Single IP address management for all four sensor channels
Technical Specifications
| Model | Hanwha Vision PNM-9084QZ |
| Total Resolution | 8MP combined (4 x 2MP sensors) |
| Number of Sensors | 4 independent sensors |
| Lens Type | Motorised vari-focal, 3.0-6.0mm per sensor |
| Field of View (per sensor) | Approximately 107 degrees (at 3mm) to 56.3 degrees (at 6mm) |
| PTRZ | Full remote pan, tilt, rotate, zoom adjustment including 90-degree look-down tilt |
| Maximum Frame Rate | Up to 60fps |
| Video Compression | H.265, H.264, MJPEG with WiseStream II |
| Onboard Analytics | Loitering detection, directional detection, enter/exit zone detection, fog detection, tampering detection |
| Ingress Protection | IP66, IK10, NEMA4X |
| Power Input | HPoE (IEEE802.3bt) |
| Edge Storage | 4 x microSD/SDHC/SDXC slots (one per sensor channel) |
| Audio I/O | Audio input/output supported |
| Alarm I/O | Alarm input and output supported |
| Network Protocol | IPv4/IPv6, SSL/TLS, 802.1X |
| ONVIF Compliance | ONVIF Profile S, Profile T |
| IP Addresses Required | 1 (single address covers all 4 sensors) |
