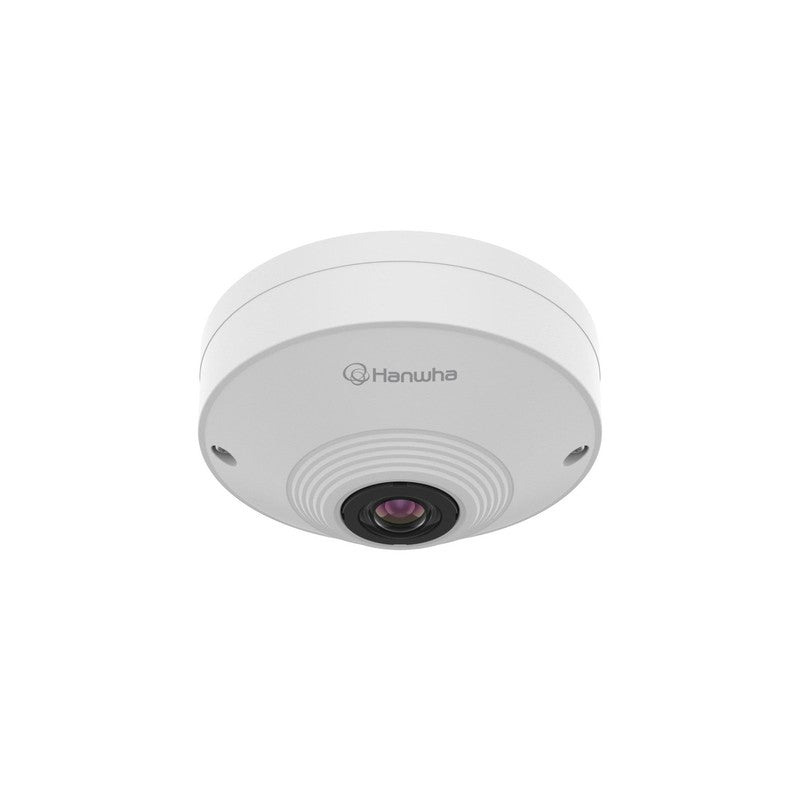

Hanwha Vision Hv-qnf-9010 Q Series 12MP Sensor 360° Indoor Fisheye Camera
SKU: HVQNF9010
$1,250.41
The Hanwha Vision Hv-qnf-9010 Q Series 12MP Sensor 360° Indoor Fisheye Camera is engineered for comprehensive overhead visibility in large indoor spaces. This device utilizes a 1.08mm fisheye lens to capture a full 187°x187° field of view, eliminating coverage gaps typically associated with multiple fixed-angle cameras.
Key Features
- 12MP sensor delivering 3008×3008 resolution at 30fps for detailed image capture
- 1.08mm fisheye lens providing a 187°x187° field of view from a single ceiling mount
- Onboard dewarping supports original fisheye, single panorama, double panorama, and quad view outputs
- Integrated business intelligence tools including people counting and heatmap analytics
- Power over Ethernet (PoE) connectivity for simplified installation
- Optimized for retail environments, open-plan offices, and public areas requiring movement pattern analysis
Technical Specifications
| Model | HV-QNF-9010 |
| Image Sensor | 12MP |
| Maximum Resolution | 3008 x 3008 |
| Frame Rate | 30fps |
| Lens | 1.08mm fisheye, 187°x187° field of view |
| View Modes | Original fisheye, single panorama, double panorama, quad view |
| Digital PTZ | Yes |
| Video Compression | H.265, H.264, MJPEG (triple codec) |
| Compression Technology | WiseStream II |
| Wide Dynamic Range | 120dB WDR |
| Analytics | People counting, heatmap, defocus detection, tampering detection, motion detection |
| Local Storage | Micro SD/SDHC/SDXC up to 256GB (1 slot) |
| Power | PoE (Power over Ethernet) |
| IP Rating | IP42 |
| Installation Features | Lens rotation, analog video output for alignment |
| Camera Body Colour | White |
