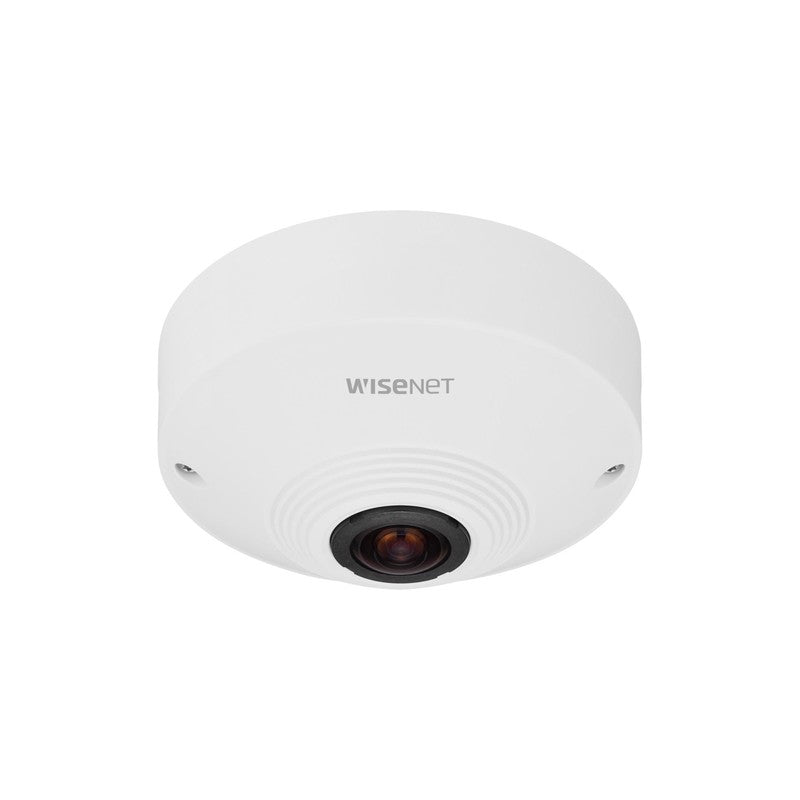

Hanwha Vision Hv-qnf-8010 Q Series 6 Mp Sensor 360° Indoor Fisheye Camera
SKU: HVQNF8010
$916.32
The Hanwha Vision HV-QNF-8010 Q Series 6 MP Sensor 360° Indoor Fisheye Camera provides comprehensive 360-degree monitoring for large indoor spaces from a single ceiling-mounted position. Equipped with a 6 MP sensor and onboard dewarping capabilities, this device eliminates the blind spots associated with multi-camera fixed-lens installations.
Key Features
- 6 MP sensor delivering 2048 x 2048 resolution output at up to 30fps
- 1.14mm fisheye lens providing a 187 x 187-degree field of view
- Onboard dewarping supporting original fisheye, single panorama, double panorama, and quad view modes
- Integrated business intelligence analytics including people counting and heatmap generation
- Power over Ethernet (PoE) connectivity for simplified installation
- IP42 rating suitable for indoor environments such as retail floors, offices, and reception areas
Technical Specifications
| Model | HV-QNF-8010 |
| Image Sensor | 6 MP |
| Resolution Output | 2048 x 2048 |
| Frame Rate | Max 30fps @ 4MP |
| Lens | 1.14mm fisheye (187° x 187°) |
| View Modes | Original fisheye, Single panorama, Double panorama, Quad view |
| Digital PTZ | Yes |
| Video Codec | H.265, H.264, MJPEG |
| Compression Technology | WiseStream II |
| Wide Dynamic Range | 120dB |
| Analytics | People counting, Heatmap |
| Event Detection | Defocus detection, Tampering detection, Motion detection |
| Local Storage | Micro SD/SDHC/SDXC, 1 slot, up to 256GB |
| Power | PoE (Power over Ethernet) |
| IP Rating | IP42 |
| Installation Feature | Lens rotation, Analog video output for on-site adjustment |
| Camera Body Colour | White |
| Camera Series | Hanwha Vision Q Series |
