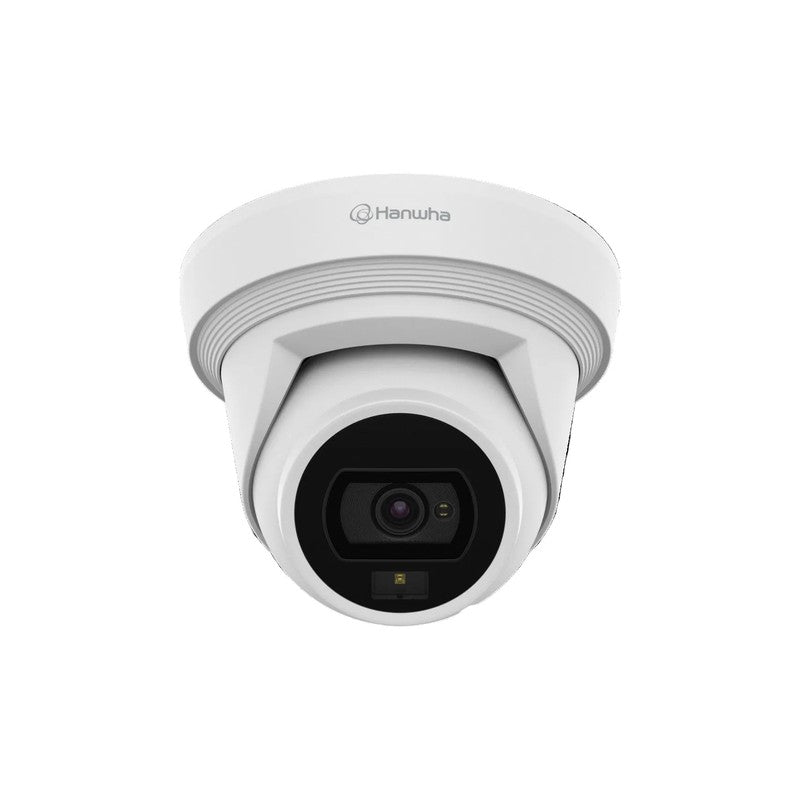

Hanwha Vision Hv-qne-c8013rl 5MP H.265 IR Flateye Camera
SKU: HVQNEC8013RL
$797.80
The Hanwha Vision Hv-qne-c8013rl 5MP H.265 IR Flateye Camera is a 5MP surveillance unit engineered with a flateye housing to eliminate the IR glare and reflection typically produced by conventional dome cameras. This design ensures cleaner image quality from eave, soffit, and wall-mounted positions, while integrating a dual light system for versatile night illumination.
Key Features
- 5MP 1/2.8″ CMOS sensor with a 3.0mm fixed lens providing a 97-degree horizontal field of view
- Dual light system featuring a 3000K warm white LED and 850nm IR LED, each with a 30m range
- Flateye housing design that removes the dome cover to prevent internal IR reflection and hotspot effects
- AI-driven object classification for people and multiple vehicle types, including car, bus, truck, motorcycle, and bicycle
- Business intelligence analytics including people counting, vehicle counting, queue management, and heatmap generation
- IP66/IP67 and IK10 ratings for suitability in both indoor and outdoor environments
- White light strobe mode that acts as a visible deterrent when triggered by AI events
Technical Specifications
| Resolution | 5MP (2592×1944) |
| Image Sensor | 1/2.8″ CMOS |
| Lens | 3.0mm fixed focal, F1.2, Fixed IRIS, M12 mount |
| Field of View | H: 97° / V: 53° / D: 113° |
| Max. Frame Rate | H.265/H.264: Max. 30fps (60Hz) / 25fps (50Hz); MJPEG: Max. 30fps (5fps at 5MP) |
| Min. Illumination | Colour: 0.022 Lux (F1.2, 1/30s); B/W: 0.0022 Lux (F1.2, 1/30s, 30IRE); 0 Lux (IR LED on) |
| Light Type | Dual light: 3000K warm white LED and 850nm IR LED |
| IR / White LED Range | White LED: 30m; IR: 30m |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR V, WiseNR II (AI engine) |
| AI Analytics | Object classification (Person, Vehicle: car/bus/truck/motorcycle/bicycle), virtual line, virtual area (loitering, intrusion, enter, exit), defocus detection, tampering, people counting, vehicle counting, queue management, heatmap |
| Video Compression | H.265, H.264 (Main/High), MJPEG; WiseStream III (AI engine) |
| Edge Storage | Micro SD/SDHC/SDXC, 1 slot, up to 256GB |
| Network Interface | RJ-45 (10/100BASE-T) |
| Power | PoE (IEEE 802.3af, Class 3); Max 10.0W, typical 4.5W |
| Ingress and Impact Protection | IP66/IP67, IK10 |
| Operating Temperature | -40°C to +60°C (startup above -30°C) |
| Compliance | ONVIF Profile S/G/T/M; SUNAPI (HTTP API); NDAA compliant; RCM (AS/NZS CISPR 32) |
| Dimensions / Weight | ø140.0 x 99.6mm; 790g |
| Housing | White aluminium (RAL9003) |
