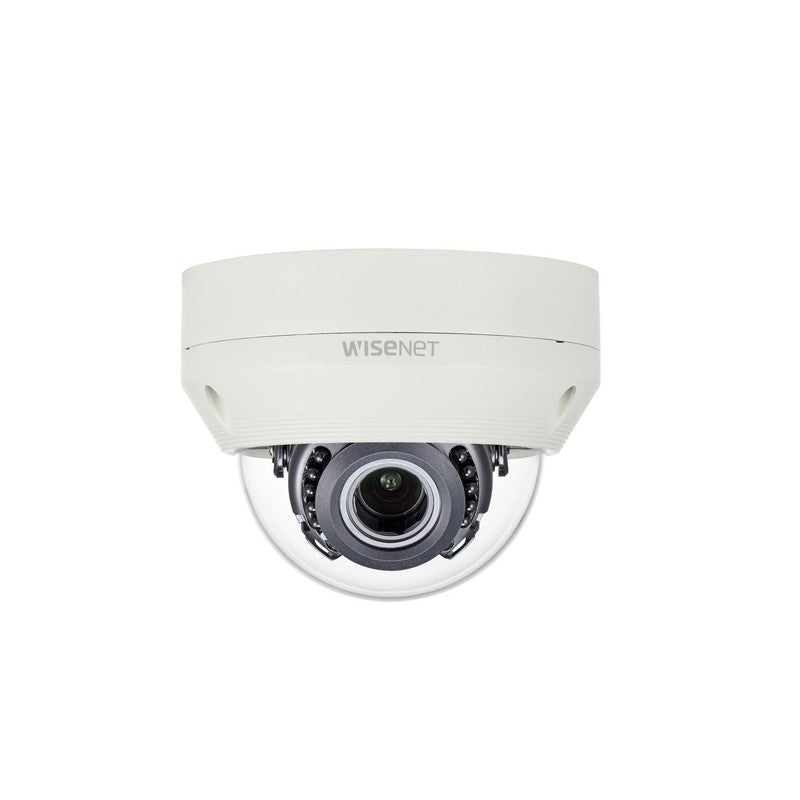

Hanwha Vision HCV-6080R 1080p Analog HD Vandal-Resistant IR Dome Camera
SKU: HCV6080R
$470.15
The Hanwha Vision HCV-6080R 1080p Analog HD Vandal-Resistant IR Dome Camera is a 1080p outdoor surveillance device designed to upgrade existing coaxial infrastructure through the WiseNet HD+ analog platform. This unit transmits Full HD video over cable runs of up to 500m, eliminating the need to recable when migrating from lower-resolution analog systems.
Key Features
- 1080p Full HD resolution with WiseNet HD+ analog transmission over coaxial cable up to 500m
- 3.2 to 10mm motorized varifocal lens for remote field-of-view adjustment after installation
- 30m IR illumination range with automatic ICR filter for day/night switching
- 120dB Wide Dynamic Range (WDR) for high-contrast scenes at entry points and perimeters
- IK10 vandal-resistant and IP66-rated housing suitable for semi-exposed outdoor environments
- Dual power input and RS-485 connectivity for flexible integration into larger analog installations
Technical Specifications
| Resolution | 2MP, 1080p Full HD |
| Lens Type | 3.2 to 10mm (3.1x) motorized varifocal |
| Minimum Illumination (Colour) | 0.11 Lux at F1.4 |
| Minimum Illumination (B/W) | 0 Lux (IR LED on) |
| IR Illumination Range | 30m |
| Day/Night Mode | Automatic ICR (mechanical cut filter) |
| Wide Dynamic Range | 120dB WDR |
| Noise Reduction | SSNRIV |
| Video Analytics | Motion detection |
| Transmission Technology | WiseNet HD+ analog HD over coaxial cable |
| Maximum Transmission Distance | 500m over coaxial cable |
| Weatherproof Rating | IP66 |
| Vandal Resistance Rating | IK10 |
| Power Input | Dual power |
| Control Interface | RS-485 |
| Installation | Plug and play |
