Hanwha Vision Ct-ane-kit-4ch4cam A Series Kit (4 X Ane-l7012r + 1 X Arn-410s W/ 2tb Hdd)
SKU: CTANEKIT4CH4CAM
$1,910.56

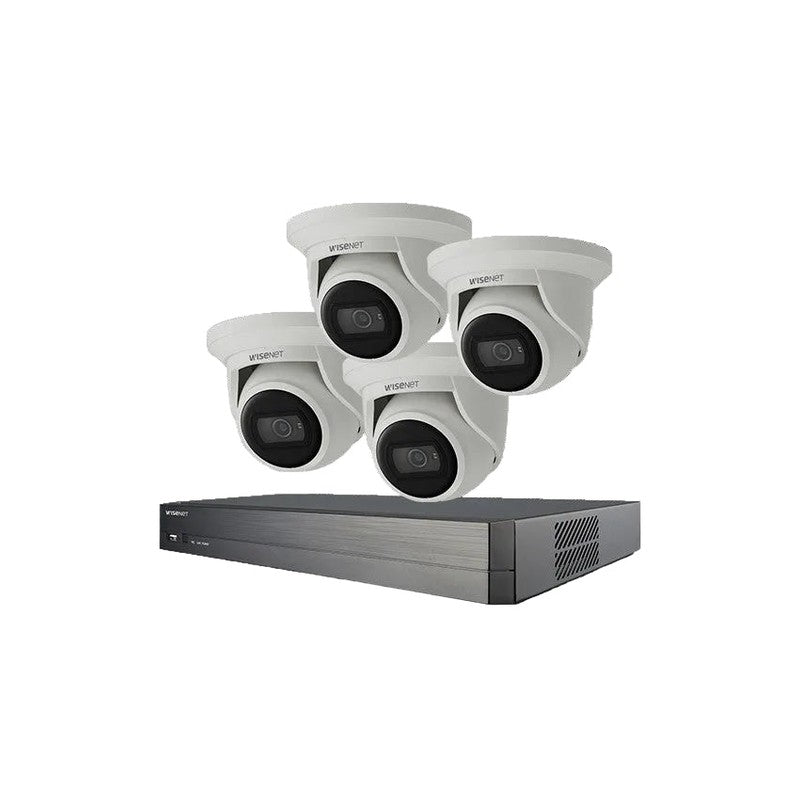

The Hanwha Vision CT-ANE-KIT-4CH4CAM A Series Kit provides a complete IP surveillance solution for small commercial and residential installations. This bundle includes four ANE-L7012R Flateye cameras and an ARN-410S 4-channel PoE NVR pre-loaded with a 2TB hard drive, enabling rapid deployment with minimal configuration.
Key Features
- Includes four ANE-L7012R Flateye cameras with 4MP resolution and 3mm fixed focal lenses
- ARN-410S NVR features four integrated PoE channels to simplify cabling and power delivery
- Pre-installed 2TB HDD for local video storage and recording
- Cameras support 20m IR night vision and 120dB WDR for consistent performance in mixed lighting
- 4K HDMI output on the NVR for high-resolution local monitoring
- Remote viewing capability via the Wisenet Mobile app using P2P connectivity
- Dual-track recording and built-in installation wizard to streamline system setup
Technical Specifications
| Kit Contents | 4 x ANE-L7012R Flateye cameras, 1 x ARN-410S 4-channel NVR with 2TB HDD |
| Camera Resolution | 4MP |
| Camera Lens | 3mm fixed focal |
| Camera Frame Rate | Maximum 30fps at 4MP |
| Camera Codec | H.265 / H.264 / MJPEG, multiple streaming |
| Minimum Illumination | Colour: 0.13 Lux (F1.6, 1/30sec) / B/W: 0 Lux (IR LED on) |
| IR Range | 20m (65.62ft) |
| WDR | 120dB |
| Day/Night | Auto (ICR) |
| Video Analytics | Tampering, Motion detection, Defocus detection, Virtual area (Intrusion / Enter / Exit), Virtual line (Crossing / Direction) |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot, up to 128GB (per camera) |
| Camera Features | Hallway view, WiseStream II, LDC, PoE |
| NVR Channels | 4 channels, up to 8MP resolution |
| NVR Codec | H.265 / H.264 / MJPEG |
| NVR Recording Bandwidth | 40Mbps |
| NVR PoE Ports | 4 x PoE ports (plug and play) |
| NVR Storage | 1 x HDD bay, up to 6TB supported, supplied with 2TB HDD |
| NVR Monitor Output | 4K HDMI |
| NVR Remote Access | P2P, Wisenet Mobile app (iOS/Android), Wisenet Viewer CMS (PC/Mac) |
| NVR Recording Modes | Dual track recording |
No downloads available for this product.
