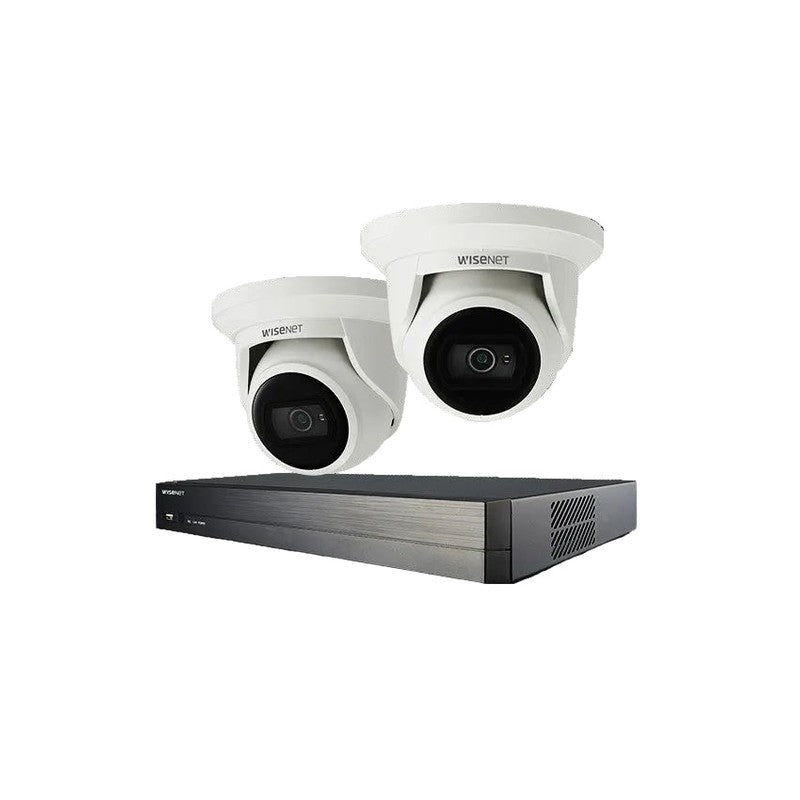

Hanwha Vision Ct-ane-kit-4ch2cam A Series Kit (2 X Ane-l7012r + 1 X Arn-410s W/ 2tb Hdd)
SKU: CTANEKIT4CH2CAM
$1,276.38
The Hanwha Vision Ct-ane-kit-4ch2cam A Series Kit provides a streamlined surveillance solution for small-site deployments, combining two ANE-L7012R 4MP Flateye cameras with an ARN-410S 4-channel PoE NVR. This bundle is pre-loaded with a 2TB hard drive and designed for straightforward installation in offices, retail environments, and residential properties where a compact camera footprint is required.
Key Features
- Includes two Hanwha ANE-L7012R 4MP Flateye cameras with a low-profile housing for flush ceiling or wall mounting.
- Features 3mm fixed lenses, 120dB WDR, and 20m IR range to handle mixed-lighting environments without manual adjustment.
- ARN-410S NVR provides plug-and-play PoE connectivity across four built-in ports.
- Pre-loaded with a 2TB hard drive for immediate local recording capabilities.
- Delivers 4K HDMI monitor output for high-resolution local playback.
- Supports P2P remote access via the Wisenet Mobile app for off-site monitoring.
- Two additional camera slots available on the NVR to facilitate future system expansion.
Technical Specifications
| Kit Contents | 2 x ANE-L7012R cameras, 1 x ARN-410S NVR with 2TB HDD pre-installed |
| Camera Model | ANE-L7012R |
| Camera Housing | Flateye (low-profile flush-mount) |
| Camera Resolution | 4MP |
| Lens | 3mm fixed focal |
| Video Codec | H.265 / H.264 / MJPEG, multiple streaming |
| Max Frame Rate | 30fps at 4MP |
| IR Range | 20m (65.62ft) |
| Min. Illumination | Colour: 0.13 Lux (F1.6, 1/30sec); B/W: 0 Lux (IR on) |
| Wide Dynamic Range | 120dB WDR |
| Day/Night | Mechanical IR cut filter (ICR) |
| Camera Analytics | Tampering, Motion detection, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Camera Edge Storage | Micro SD/SDHC/SDXC, 1 slot, up to 128GB |
| Camera Features | Hallway view mode, WiseStream II, LDC, PoE powered |
| NVR Model | ARN-410S |
| NVR Channels | 4 channels, up to 8MP per channel |
| NVR PoE Ports | 4 x PoE ports (plug and play) |
| NVR Recording Bandwidth | 40Mbps |
| NVR Monitor Output | 4K HDMI |
| NVR HDD | 1 bay, up to 6TB supported; 2TB pre-installed in this kit |
| NVR Remote Access | P2P service, Wisenet Mobile app (iOS/Android), Wisenet Viewer CMS (PC/Mac) |
| NVR Recording Modes | Dual track recording |
