Hanwha Vision Ct-ane-kit-16ch4cam A Series Kit (4 X Ane-l7012r + 1 X Arn-1610s W/ 4tb Hdd)
SKU: CTANEKIT16CH4CAM
$2,589.00

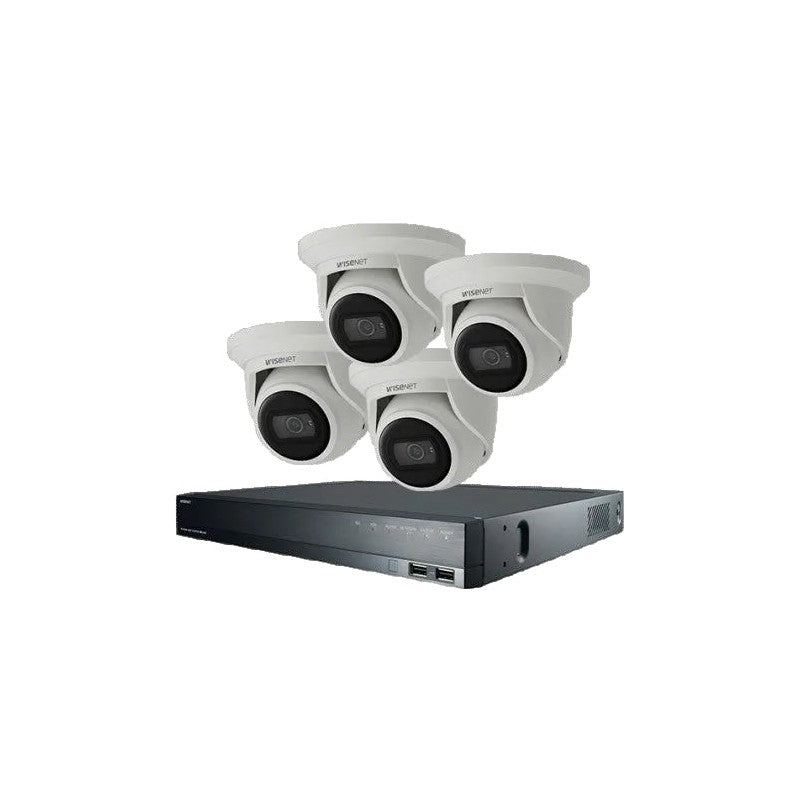

The Hanwha Vision CT-ANE-KIT-16CH4CAM A Series Kit provides a complete IP surveillance solution by integrating four ANE-L7012R flateye cameras with an ARN-1610S 16-channel PoE NVR. This bundle simplifies system deployment by including a pre-installed 4TB hard drive, ensuring immediate recording capability without the need for separate component sourcing.
Key Features
- Includes four Hanwha Vision ANE-L7012R flateye IP cameras
- Features one ARN-1610S 16-channel PoE Network Video Recorder
- Pre-loaded with a 4TB hard drive for continuous storage
- Cameras deliver 4MP resolution with a 3mm fixed lens
- Equipped with 120dB WDR sensor and ICR day/night switching
- Provides 20m infrared coverage for low-light surveillance
- Utilizes Power over Ethernet (PoE) for simplified cabling
Technical Specifications
| Kit Contents | 4 x ANE-L7012R cameras, 1 x ARN-1610S NVR with 4TB HDD |
| Camera Resolution | 4MP maximum |
| Camera Lens | 3mm fixed focal |
| Camera Frame Rate | Maximum 30fps at 4MP |
| Camera Codec | H.265, H.264, MJPEG with multiple streaming |
| Camera Compression | WiseStream II supported |
| Minimum Illumination | Colour: 0.13 Lux (F1.6, 1/30sec); B/W: 0 Lux (IR on) |
| IR Range | 20m (65.62ft) |
| Day and Night | ICR (mechanical IR cut filter) |
| Wide Dynamic Range | 120dB WDR |
| Camera Analytics | Tampering, motion detection, defocus detection, virtual area (intrusion/enter/exit), virtual line (crossing/direction) |
| Camera Edge Storage | Micro SD/SDHC/SDXC, 1 slot, up to 128GB |
| Camera Power | PoE (IEEE 802.3af) |
| Camera Special Modes | Hallway view, LDC (Lens Distortion Correction) |
| NVR Channels | 16 channels, up to 8MP per channel |
| NVR Recording Bandwidth | 80Mbps total network camera recording |
| NVR PoE Ports | 16 x PoE (LAN, 10/100Mbps) |
| NVR WAN Port | 1 x RJ-45 (1Gbps) |
| NVR Storage | 4TB HDD pre-installed, maximum 6TB supported |
| NVR Monitor Output | HDMI and VGA |
| NVR Special Features | ARB (Automatic Recovery Backup), Wisenet Mobile App P2P support |
