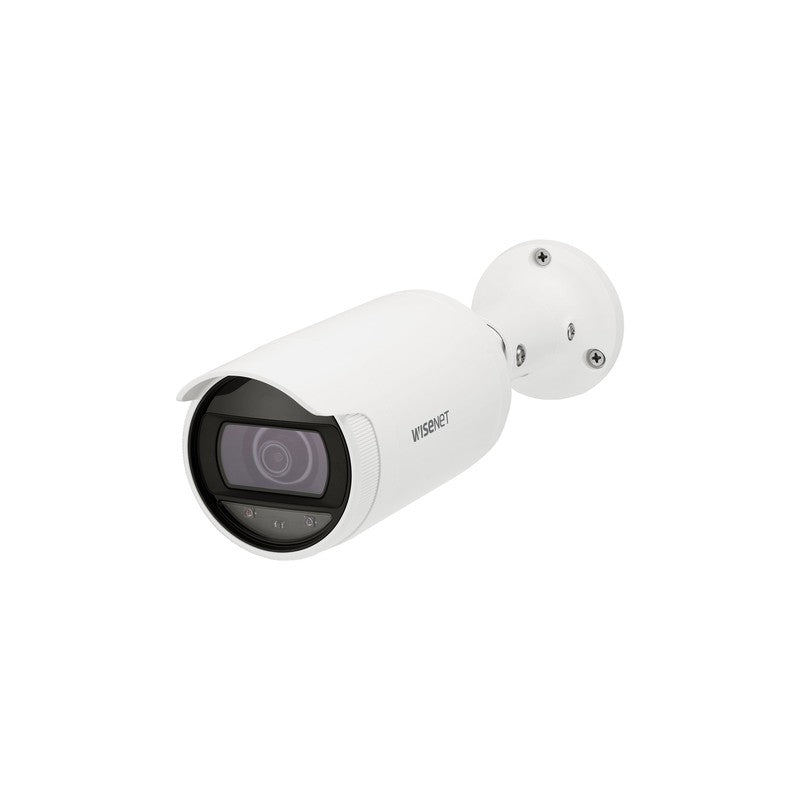

Hanwha Vision Ano-l7022r 4MP H.265 Nw IR Bullet Fixed Lens Camera
SKU: HVANOL7022R
$2,893.20
The Hanwha Vision Ano-l7022r 4MP H.265 Nw IR Bullet Fixed Lens Camera is a compact outdoor surveillance unit designed for perimeter and directional coverage. It delivers 4MP resolution at up to 30fps with H.265 compression to optimize bandwidth and storage efficiency while maintaining high image detail.
Key Features
- 4MP fixed 4mm lens providing a 78.2-degree horizontal field of view for mid-distance monitoring.
- 25m infrared night vision range with a true Day/Night ICR filter for automatic monochrome switching in low-light conditions.
- 120dB Wide Dynamic Range (WDR) to preserve image detail in scenes with high contrast, such as direct sunlight and deep shadows.
- H.265 compression supported by WiseStream II technology to reduce bitrate during periods of low activity.
- Onboard analytics including virtual line crossing, intrusion detection, and defocus detection for event-based intelligence.
- Micro SD card slot supporting up to 128GB for local edge recording.
- Power over Ethernet (PoE) capability for simplified single-cable installation.
Technical Specifications
| Model | ANO-L7022R |
| Camera Type | IR Bullet, Fixed Lens |
| Resolution | 4MP (2560 x 1440) |
| Frame Rate | Up to 30fps (H.265 / H.264) |
| Lens | 4mm fixed focal length |
| Horizontal Field of View | 78.2 degrees |
| Minimum Illumination | 0.1 Lux (Colour, F1.6, 1/30sec) / 0 Lux (B/W, IR on) |
| IR Viewable Length | 25m |
| Day/Night | True Day/Night with Auto ICR |
| Wide Dynamic Range | 120dB WDR |
| Video Compression | H.265, H.264, MJPEG; multiple streaming supported |
| Bandwidth Optimisation | WiseStream II |
| Analytics | Defocus detection, directional detection, motion detection, intrusion, enter/exit, virtual line crossing, tampering |
| Hallway View | 90-degree / 270-degree rotation supported |
| Local Storage | Micro SD / SDHC / SDXC slot, up to 128GB |
| Power | PoE (IEEE 802.3af) / 12V DC |
| Weatherproofing | IP66 |
| Operating Temperature | -30°C to +55°C |
