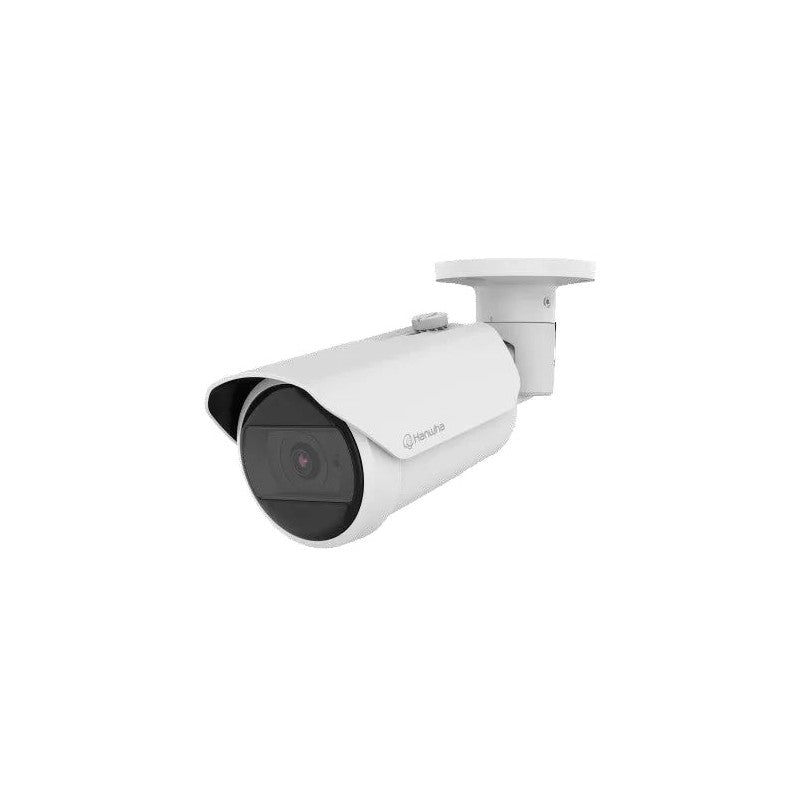

Hanwha Qno-c8023r 5 Mp AI IR Bullet Camera 4mm Lens
SKU: QNOC8013R1
$704.52
The Hanwha Qno-c8023r 5 Mp AI IR Bullet Camera 4mm Lens is a 5MP outdoor surveillance camera designed for perimeter monitoring in exposed environments. Featuring a fixed 4mm lens and 30m infrared illumination, it delivers high-resolution imaging and smart object analytics for accurate event detection in both day and night conditions.
Key Features
- 5MP (2592 x 1944) resolution at up to 30 fps from a 1/2.8″ progressive scan CMOS sensor
- Fixed 4mm lens with an 80-degree horizontal field of view
- Built-in IR illumination with a 30-metre range for clear monochrome night vision
- On-camera AI analytics for people and vehicle classification to reduce false alarms
- 120 dB Wide Dynamic Range (WDR) for balanced image quality in variable lighting
- WiseStream III compression technology for efficient storage management
- IP66-rated and IK10-rated aluminium housing for weather and impact resistance
Technical Specifications
| Model Number | QNO-C8023R |
| Camera Type | 5MP Network Bullet |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Resolution | 2592 x 1944 |
| Frame Rate | Up to 30 fps |
| Lens | Fixed 4 mm |
| Field of View (H/V) | 80° / 59° |
| Minimum Illumination | Colour: 0.05 lux @ F1.6 / B&W: 0.005 lux @ F1.6 |
| IR Range | Up to 30 m |
| Wide Dynamic Range | 120 dB |
| Noise Reduction | WiseNR II |
| Compression Formats | H.265, H.264, MJPEG |
| Smart Compression | WiseStream III |
| Simultaneous Streams | Up to 5 profiles |
| Object Analytics | Person and vehicle classification; line crossing, intrusion, loitering |
| Edge Storage | microSD/SDHC/SDXC up to 256 GB |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Operating Temperature | -30°C to +55°C |
| Power Supply | PoE (IEEE 802.3af Class 3) |
| Power Consumption | Typical 4 W / Max 8.1 W |
| Housing Material | Aluminium |
| Colour Finish | White (RAL 9003) |
| Manufacturer | Hanwha Vision (Wisenet Series) |
