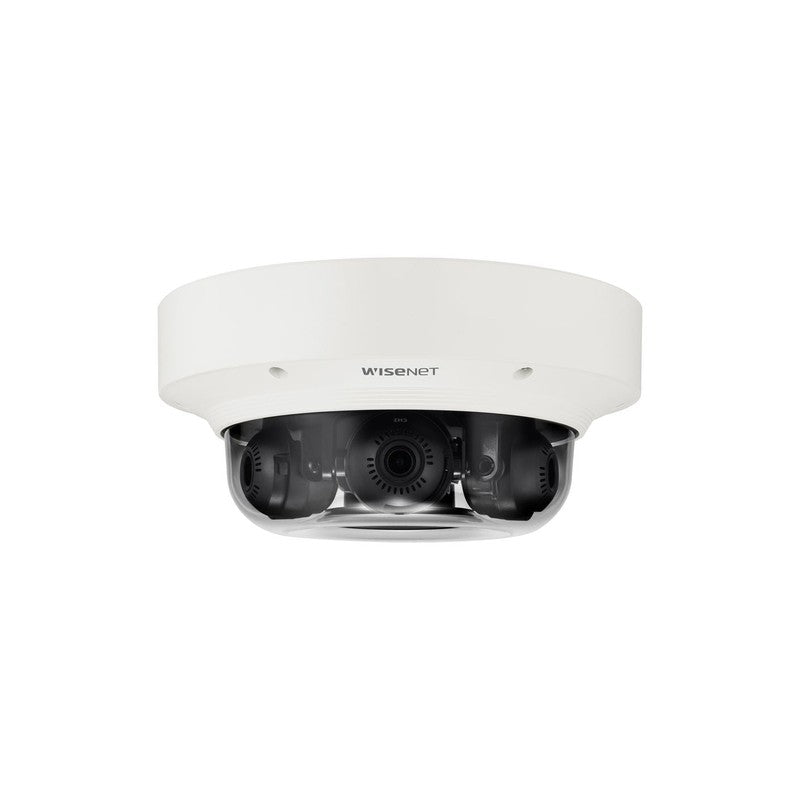

Hikvision Hanwha Pnm-c16083rvq 4 × 4 Mp AI Multi-sensor Dome Camera
SKU: PNMC16083RVQ
$3,288.60
The Hikvision Hanwha Pnm-c16083rvq 4 × 4 Mp AI Multi-sensor Dome Camera provides wide-area monitoring from a single ceiling mount, combining four independent 4 MP sensors for up to 16 MP of simultaneous multi-directional awareness. Designed for commercial and public-space installations, this unit reduces infrastructure costs by consolidating coverage across large open areas within a compact ø250 mm aluminium housing.
Key Features
- Four independent 1/2.8-inch CMOS sensors delivering 4 MP resolution (2592 x 1520) per channel for a combined 16 MP coverage.
- Per-channel 3.3-5.7 mm motorised varifocal lenses with a horizontal field of view ranging from 100° to 53° for independent zone framing.
- On-board deep-learning AI analytics for person, face, vehicle, and licence plate classification, along with event rules for loitering, line crossing, and intrusion.
- WiseStream III compression technology and dual SD edge storage support up to 1 TB for efficient data management.
- 120 dB WDR and 15 m WiseIR illumination for clear imaging in high-contrast and low-light conditions.
- Robust IP66, IK10, and NEMA 4X ratings suitable for exposed outdoor and undercover ceiling mounts.
Technical Specifications
| Model | PNM-C16083RVQ |
| Image Sensor | 1/2.8-inch CMOS x 4 |
| Max Resolution | 2592 x 1520 (4 MP per channel, 16 MP combined) |
| Lens | 3.3-5.7 mm motorised varifocal (F1.5-F1.9) per channel |
| Field of View (H/V/D) | 100-53 degrees / 54-30 degrees / 125-61 degrees |
| Min Illumination | Colour 0.075 Lux @ F1.5 / B&W 0.0075 Lux / 0 Lux (IR on) |
| WDR | 120 dB |
| IR Range | 15 m (WiseIR) |
| AI Analytics | Person, face, vehicle, licence plate classification; loitering, intrusion, line crossing, defocus, tampering, audio, sound classification |
| Compression | H.265, H.264, MJPEG / WiseStream III |
| Audio I/O | 1 In (selectable Mic/Line), 1 Out (Line) |
| Alarm I/O | 2 configurable (extendable via SPM-4210) |
| Network Interface | 10/100/1000 Base-T RJ-45 |
| Protocols | IPv4/IPv6, HTTP(S), RTSP, SNMP, MQTT, ONVIF S/T compatible |
| Edge Storage | Dual Micro SD/SDHC/SDXC slots (max 1 TB total) |
| Power | PoE+ (IEEE 802.3at Type 2), typical 22 W / max 25.5 W |
| Operating Temperature | -40 degrees C to +55 degrees C (cold start at -35 degrees C or above) |
| Ingress / Impact / Corrosion Rating | IP66 / IK10 / NEMA 4X |
| Dimensions / Weight | ø250 x 114.2 mm / 2.73 kg |
| Body Material | Aluminium, white RAL 9003 |
| Cybersecurity | TPM 2.0 with FIPS 140-2 Level 2 certification, signed firmware |
| Certifications | FCC, CE, RCM, UL 62368-1 / IP66 / IK10 / NEMA 4X |
