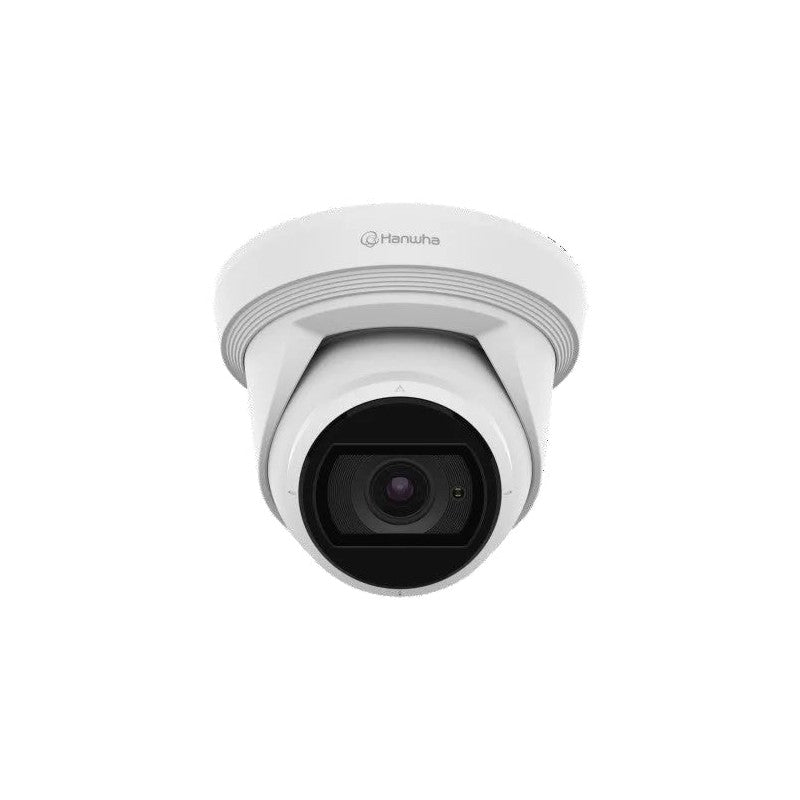

Hanwha Ane-l8082r 5MP IR Flateye Camera Motorised Varifocal 3.3–10.3mm
SKU: ANEL8082R
$627.20
The Hanwha Ane-l8082r 5MP IR Flateye Camera Motorised Varifocal 3.3–10.3mm is a 5MP outdoor surveillance camera designed for commercial perimeters and access lanes. It features a motorised varifocal lens that allows for remote field-of-view adjustment after installation, eliminating the need for physical access to the camera head.
Key Features
- Motorised varifocal lens with a 3.3–10.3mm focal length and 3.1x zoom range for remote framing adjustments.
- 5MP resolution at 2592 x 1944 pixels, providing sufficient detail for identifying faces and number plates.
- 120dB Wide Dynamic Range (WDR) to maintain image clarity in high-contrast scenes with strong backlight or direct sun.
- IR illumination range of approximately 30 metres for effective low-light and night-time monitoring.
- Dual weather ratings of IP66 and IP67 combined with IK10 impact resistance for durability in harsh outdoor conditions.
- H.265 compression and WiseStream II technology to optimise storage and bandwidth usage across multi-camera deployments.
- Supports Hallway View orientation and Lens Distortion Correction for accurate image representation.
Technical Specifications
| Image Sensor | 1/2.8″ CMOS |
| Maximum Resolution | 5MP (2592 x 1944) |
| Lens Type | Motorised varifocal 3.3-10.3mm (3.1x zoom) |
| Field of View | Approx. 97 degrees (wide) to 29 degrees (tele) |
| Minimum Illumination | 0.04 Lux (colour), 0.004 Lux (B/W), 0 Lux (IR on) |
| IR Range | Up to approx. 30 metres |
| Wide Dynamic Range | 120dB |
| Video Compression | H.265, H.264, MJPEG; WiseStream II supported |
| Environmental Protection | IP66 / IP67 weather rated |
| Vandal Rating | IK10 impact resistant |
| Operating Temperature | -30°C to +60°C |
| Humidity Range | 0% to 95% (non-condensing) |
| Power Supply | PoE (IEEE 802.3af, Class 3) |
| Power Consumption | Max approx. 10.4W, typical approx. 5.2W |
| Special Modes | Hallway View (90/270 degree rotation), Lens Distortion Correction |
| Dimensions | Diameter 160 x 124.1 mm |
| Weight | Approx. 1.06 kg |
