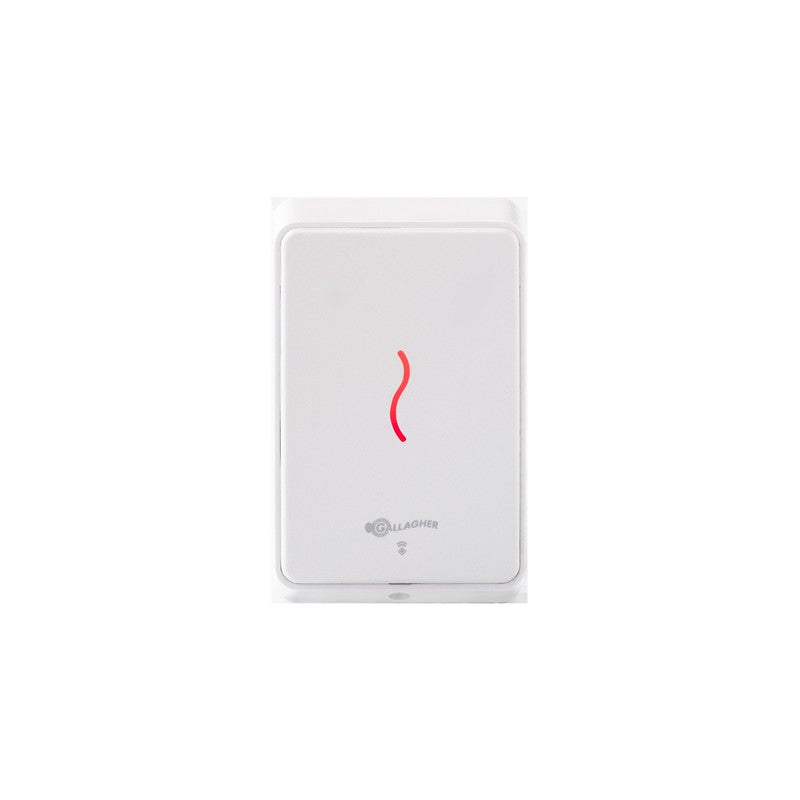

Gallagher Smb T11 Prox Reader Ble Nfc 13.56mhz Mifare Desfire Ev2/ev3 4K Ip68 9-16vdc 40-60mm White 115hx70wx12d (mm)
SKU: GALC300431
$659.88
The Gallagher SMB T11 Prox Reader is a compact access control device engineered for secure credential verification in demanding environments. It supports multiple authentication protocols, including Proximity, BLE, and NFC, while maintaining a robust IP68-rated housing for reliable outdoor performance.
Key Features
- Supports Proximity, BLE, and NFC 13.56MHz communication protocols
- Compatible with MIFARE DESFire EV2 and EV3 4K credential formats
- IP68 ingress protection rating for dust and water resistance
- Operates on a 9-16VDC power supply
- White finish with dimensions of 115mm (H) x 70mm (W) x 12mm (D)
- Designed for installation in door frames ranging from 40mm to 60mm thickness
Technical Specifications
Technical Specifications
| Brand | GALLAGHER SMB |
| Warranty | LIMITED LIFETIME |
| Wiring | HARDWIRED |
| Device Type | RECEIVER |
| Colour | WHITE |
| Output | WIGANDx1 |
| Display | NONE |
| Mounting | WALL MOUNT |
| Power | 9VDC , MULTI VOLTAGE , 12VDC |
