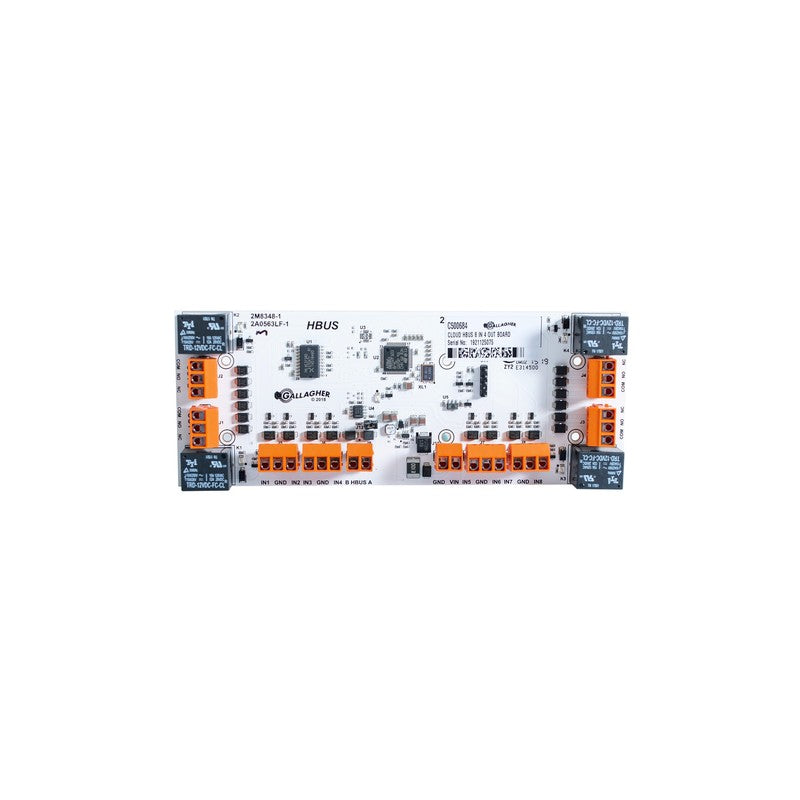

Gallagher C500684 Smb Hbus 8in 4out I/o Board 13.6vdc 24vdc/ac 30hx70wx180d (mm)
SKU: GALC500684
$586.92
The Gallagher C500684 SMB HBus 8in 4out I/O Board is a compact interface module designed for integration into HBus-based access control systems. It provides eight inputs and four outputs, operating on a 13.6VDC supply while supporting 24VDC/AC signal levels for versatile field connectivity.
Key Features
- 8 inputs and 4 outputs for flexible signal routing
- Operates on a 13.6VDC power supply
- Supports 24VDC/AC input and output signal levels
- Compact dimensions of 30H x 70W x 180D (mm)
- Compatible with Gallagher HBus communication architecture
- Designed for SMB (Small to Medium Business) security applications
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 6VDC |
| Dimensions | 30H x 70W x 180D mm |
No downloads available for this product.
