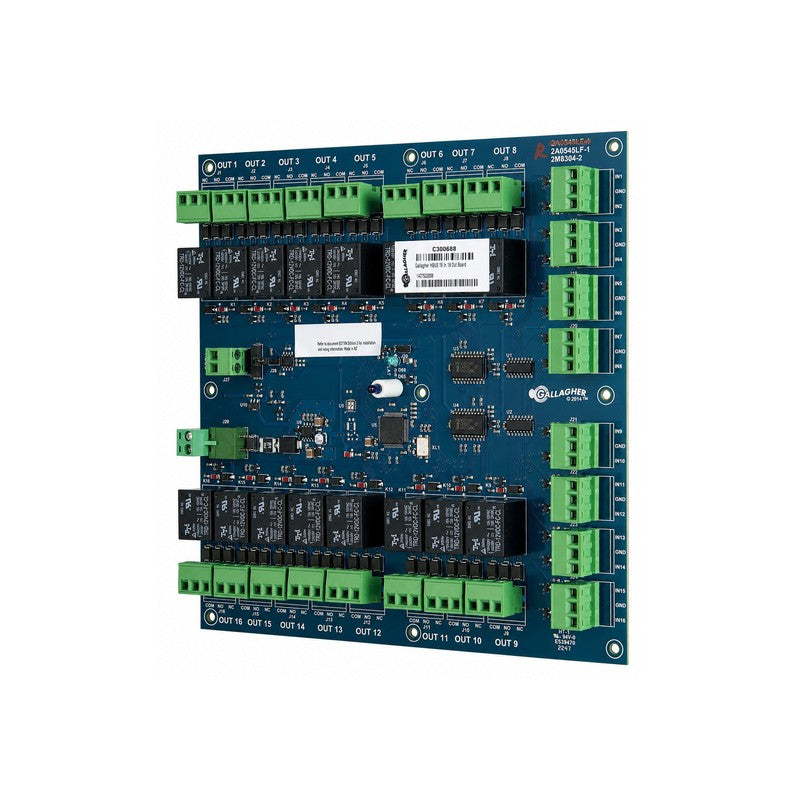

Gallagher C300688 Smb Hbus 16in 16out I/o Module Pcb 24vdc/ac 13.6vdc 4k7 Termination 180hx180wx30d (mm)

Gallagher C300688 Smb Hbus 16in 16out I/o Module Pcb 24vdc/ac 13.6vdc 4k7 Termination 180hx180wx30d (mm)
SKU: GALC300688
$1,536.04

The Gallagher C300688 SMB HBus I/O Module is a 16-in/16-out PCB designed for integration into HBus-based security and access control systems. It operates on a 24VDC/AC supply with a 13.6VDC output and includes 4k7 termination for stable signal integrity.

Key Features

  • 16 inputs and 16 outputs for flexible peripheral interfacing
  • 24VDC/AC power supply with 13.6VDC operating voltage
  • 4k7 termination for reliable HBus communication
  • Compact PCB form factor measuring 180H x 180W x 30D (mm)
  • Compatible with Gallagher HBus architecture
  • Part number C300688 for easy identification and ordering

Technical Specifications

SpecificationDetails
Voltage 24VDC
Dimensions 180H x 180W x 30D mm
No downloads available for this product.
