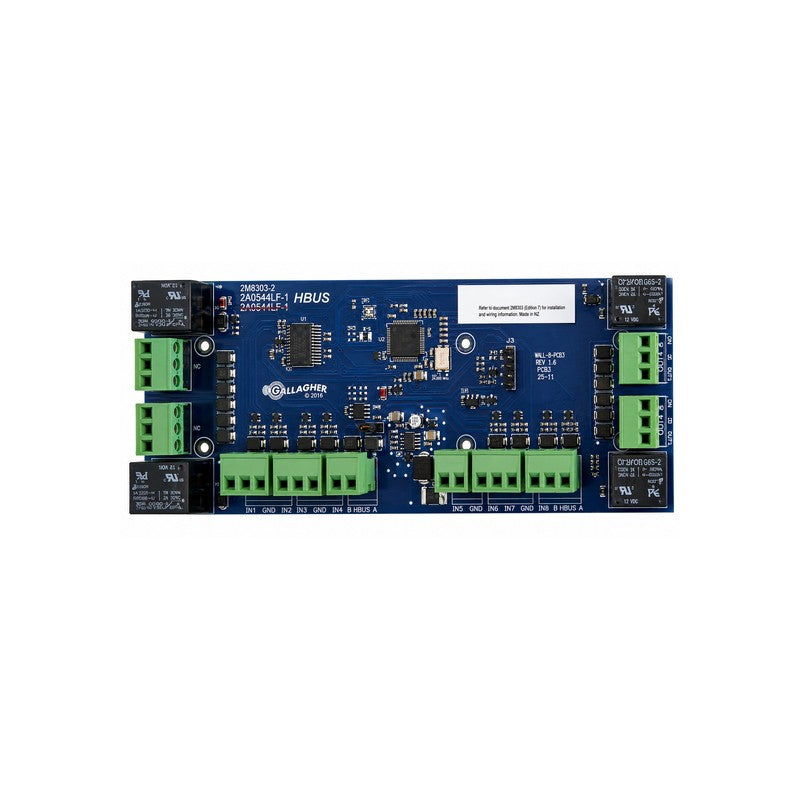

Gallagher C300684 Hbus 8x Input 4x Output I/o Module 24vdc/ac Pcb 13.6vdc 4k7 Termination 180hx70wx30d (mm)

Gallagher C300684 Hbus 8x Input 4x Output I/o Module 24vdc/ac Pcb 13.6vdc 4k7 Termination 180hx70wx30d (mm)
SKU: GALC300684
$698.85

The Gallagher C300684 Hbus 8x Input 4x Output I/O Module is a compact interface board designed for integration into automated gate and barrier systems. This PCB-based unit provides eight input channels and four output channels, operating on a 24VDC/AC supply with a 13.6VDC internal voltage and 4K7 termination.

Key Features

  • 8 input channels and 4 output channels for system interfacing
  • 24VDC/AC operating voltage with 13.6VDC internal supply
  • 4K7 termination resistance for stable signal transmission
  • Compact PCB design measuring 180H x 70W x 30D mm
  • Compatible with Gallagher Hbus communication protocol
  • Part number C300684 for easy identification and replacement

Technical Specifications

SpecificationDetails
Voltage 24VDC
Dimensions 180H x 70W x 30D mm
No downloads available for this product.
