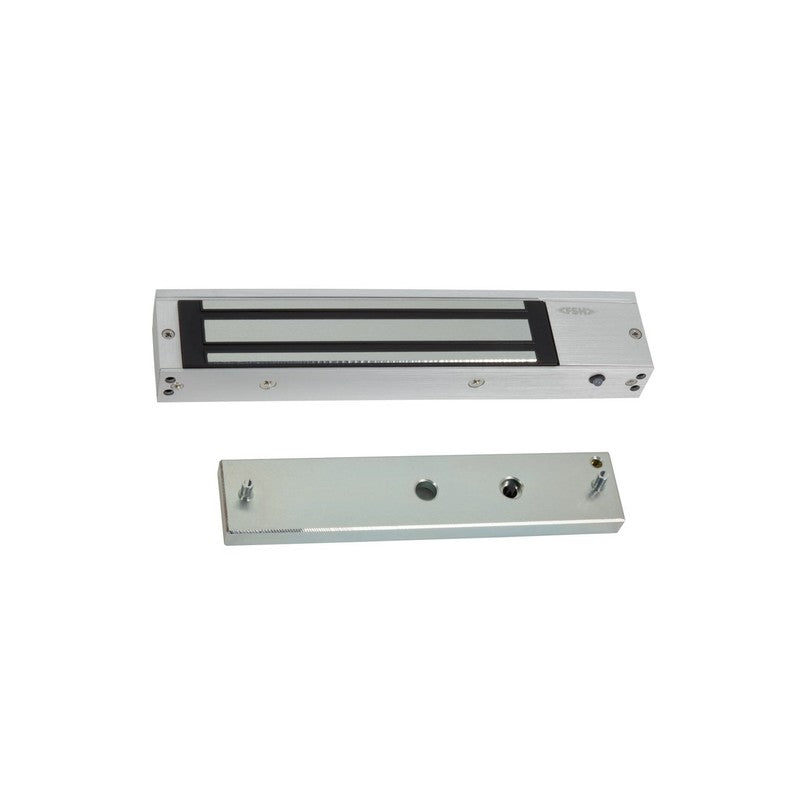

Fsh Fem4300 Series Electric Single Mag Lock Monitored Lock Status Sensor Door Status Sensor LED Indicator 280kg Holding Force Fail Safe (ptl) Surface Mount No Fire Rating 12/24vdc
SKU: FSHFEM4300MHV
$243.15
The FSH FEM4300 Series Electric Single Mag Lock is a fail-safe electromagnetic locking solution engineered for secure access control applications. Designed with integrated monitoring capabilities, this unit provides real-time feedback on both lock and door status to ensure reliable system operation.
Key Features
- 280kg holding force for robust door security
- Fail-safe operation mode for emergency egress
- Integrated lock status and door status sensors
- LED indicator for visual status confirmation
- Surface mount installation design
- Compatible with 12VDC and 24VDC power supplies
- Single magnetic lock configuration
- No fire rating certification
Technical Specifications
Technical Specifications
| Brand | FSH |
| Warranty | 5 years |
| Series | FEM4300 SERIES |
| Elec/Mech | ELECTRIC |
| Device Type | SINGLE MAG LOCK |
| Monitored | MONITORED |
| Lock Status Sensor (Lss) | LOCK STATUS SENSOR |
| Door Status Sensor Dss) | DOOR STATUS SENSOR |
| Led Indicator | LED INDICATOR |
| Holding Force | 280KG HOLDING FORCE |
| Pto/Ptl | FAIL SAFE (PTL) |
| Mounting | SURFACE MOUNT |
| Fire Rating | NONE |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
