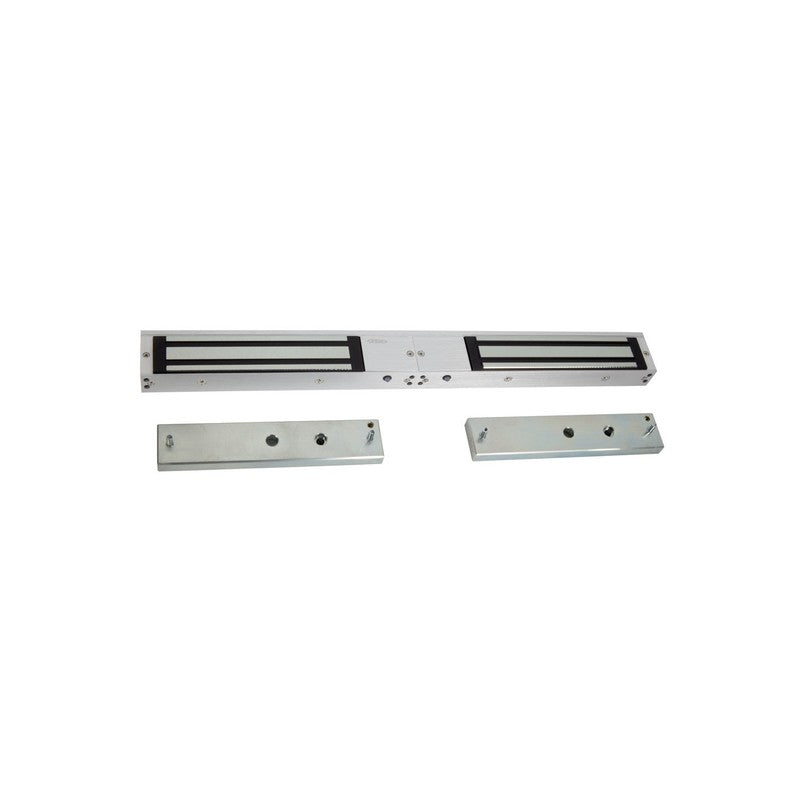

Fsh Fem4300 Series Electric Double Mag Lock Monitored Lock Status Sensor Door Status Sensor LED Indicator 280kg Holding Force Fail Safe (ptl) Surface Mount No Fire Rating 12/24vdc
SKU: FSHFEM4300DMHV
$506.40
The FSH FEM4300 Series Electric Double Mag Lock is a surface-mounted electromagnetic locking solution engineered for commercial access control applications. This fail-safe unit provides a holding force of 280kg and integrates monitored lock and door status sensors with an LED indicator to ensure reliable system feedback.
Key Features
- 280kg holding force
- Fail-safe operation mode
- Monitored lock status sensor
- Door status sensor included
- LED indicator for visual status
- Surface mount installation
- Compatible with 12/24VDC power supply
- No fire rating
Technical Specifications
Technical Specifications
| Brand | FSH |
| Warranty | 5 years |
| Series | FEM4300 SERIES |
| Elec/Mech | ELECTRIC |
| Device Type | DOUBLE MAG LOCK |
| Monitored | MONITORED |
| Lock Status Sensor (Lss) | LOCK STATUS SENSOR |
| Door Status Sensor Dss) | DOOR STATUS SENSOR |
| Led Indicator | LED INDICATOR |
| Holding Force | 280KG HOLDING FORCE |
| Pto/Ptl | FAIL SAFE (PTL) |
| Mounting | SURFACE MOUNT |
| Fire Rating | NONE |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
