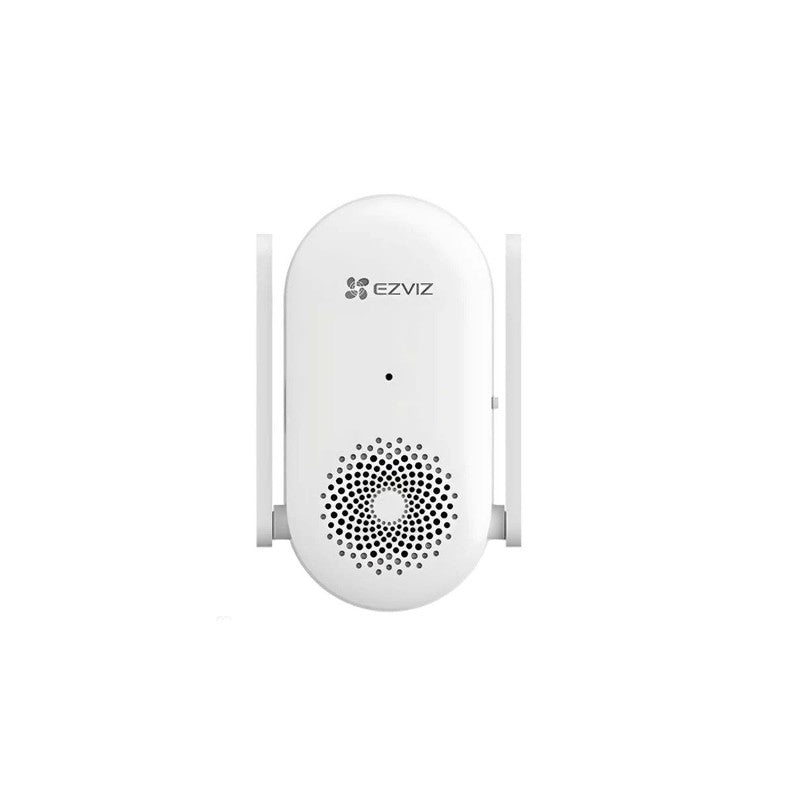

Ezviz Ch1 Smart Chime Companion Add On For Ep3x, Hp3, Cp3
SKU: CSCH1
$84.03
The Ezviz Ch1 Smart Chime Companion Add On For Ep3x, Hp3, Cp3 is a plug-and-play indoor audio device designed to extend the alert range of compatible EZVIZ doorbell systems. It provides a clear, high-decibel notification option for users who require a physical chime to supplement mobile app alerts within their home environment.
Key Features
- Compatible with EZVIZ EP3x, HP3, and CP3 doorbell models for seamless integration.
- Delivers audio output up to 72 dB within a 1-meter radius using a built-in high-power speaker.
- Offers 20 customizable ringtones with adjustable volume levels and a mute function.
- Features dual antennas for stable Wi-Fi connectivity and secure communication via EZVIZ proprietary protocol.
- Supports multi-chime setups to ensure audio coverage across larger residential spaces.
- Operates effectively in ambient temperatures ranging from -10°C to 45°C.
- Utilizes a compact, plug-and-play design for straightforward installation without complex configuration.
Technical Specifications
| General | |
|---|---|
| Operation Conditions | -10°C to 45°C (14°F to 113°F), humidity 95% or less (non-condensing) |
| Dimensions | 101 × 64 × 32 mm (3.98 × 2.52 × 1.26 inch) |
| Package Dimensions | 113 × 85 × 95 mm (4.45 × 3.35 × 3.74 inch) |
| Power Consumption | Max. 5W |
| Power Supply | AC 100 ~ 240V |
| Net Weight | 87 g (3.07 oz) |
| Weight with Package | 178 g (6.28 oz) |
| Reset button | Yes |
| Audio | |
| Ringtone | Supports up to 20 options with adjustable volume |
| Audio Output | Built-in high-power speaker (Up to 72 dB in 1 meter) |
| Network | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Antennas | Dual external antennas |
