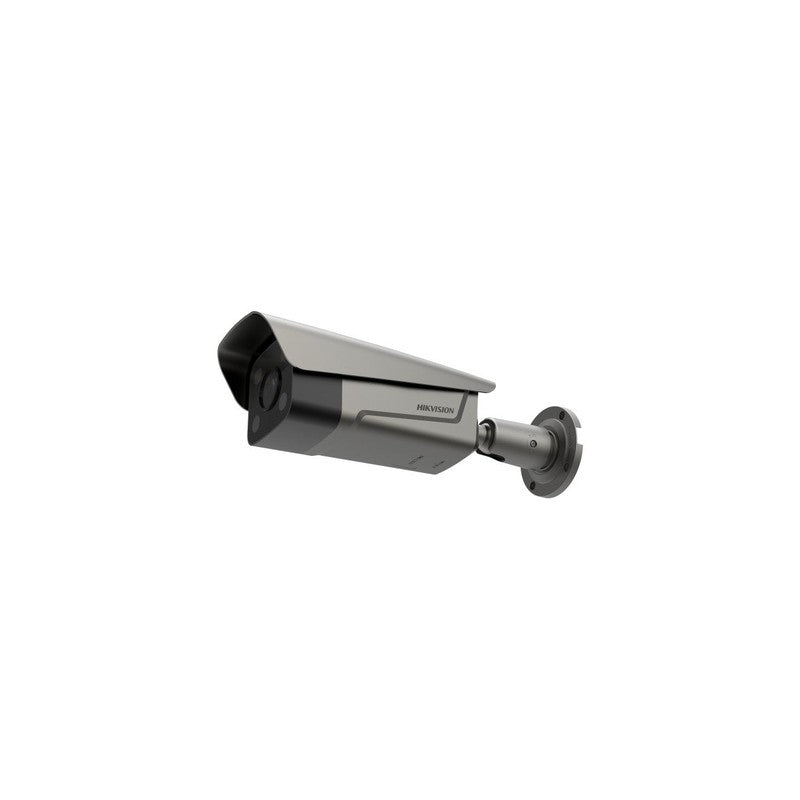

Hikvision Ds-tcg406-e 5 Mp Intelligent Entrance Anpr Camera
SKU: DSTCG406E
$2,097.60
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-2cd5a26g0-izs 2MP Outdoor Darkfighter Bullet Camera, Ir, 140db Wdr, Vca, 60fps, 8-32mm
$951.00
Upgrades Subtotal:
$0.00
The Hikvision DS-TCG406-E is a 5 MP intelligent ANPR camera engineered for vehicle entrance and exit control, delivering accurate number plate recognition across diverse operational conditions. Equipped with a 1/1.8″ progressive scan CMOS sensor, the device captures high-resolution plate data at up to 30 frames per second while simultaneously recording general scene video.
Key Features
- 5 MP resolution (3072 x 1728) with 140 dB WDR to prevent washout from direct headlights or harsh backlight.
- Effective plate recognition range of up to 20 metres, ensuring accuracy even at angles or varying speeds.
- Two motorised varifocal lens options: 2.8-12 mm for closer ranges and 8-32 mm for longer distances or overhead mounting.
- Dual built-in lighting system featuring warm white and IR LEDs for general scene illumination up to 50 metres and targeted plate capture up to 20 metres.
- Intelligent triggering support via video detection, induction loop, radar, Wiegand, or relay input for broad access control compatibility.
- Onboard TF card storage with offline allowlist and blocklist capabilities supporting up to 100,000 entries for independent barrier control.
Technical Specifications
| Model | DS-TCG406-E |
| Resolution | 5 MP (3072 x 1728) |
| Sensor | 1/1.8″ progressive scan CMOS |
| Frame Rate | Up to 30 fps at 3072 x 1728 |
| Lens Options | 2.8-12 mm motorised varifocal / 8-32 mm motorised varifocal |
| Horizontal Field of View (2.8-12 mm) | 114.5° to 38.6° |
| Horizontal Field of View (8-32 mm) | 47.2° to 15.1° |
| Built-in Lighting | 4 LEDs: 2 x warm white, 2 x IR |
| General Illumination Range | Up to 50 m |
| LPR Capture Range | Up to 20 m |
| Wide Dynamic Range | 140 dB |
| Triggering Methods | Video detection, induction loop, radar, Wiegand, relay input |
| Vehicle Recognition | Plate (LPR), vehicle brand, model, type, colour; clean and dirty plates supported |
| Onboard Storage | TF card slot, up to 1 TB |
| Offline List Capacity | 100,000 entries (allowlist and blocklist) |
| Video Streams | Up to 3 simultaneous streams |
| Compression | H.265, H.264, MJPEG |
| Mounting | Wall, pole, pendant, universal joint |
| Included Accessories | Concealed junction box |
| Lead Time | 10 weeks |
