Dahua Vt IP Intercom Monitor Black Apartment/residential 7 Inch Display Resistive Touchscreen Plastic 12vdc/24v POE Switch(vtns1060a)
SKU: DAHI1020
$186.99

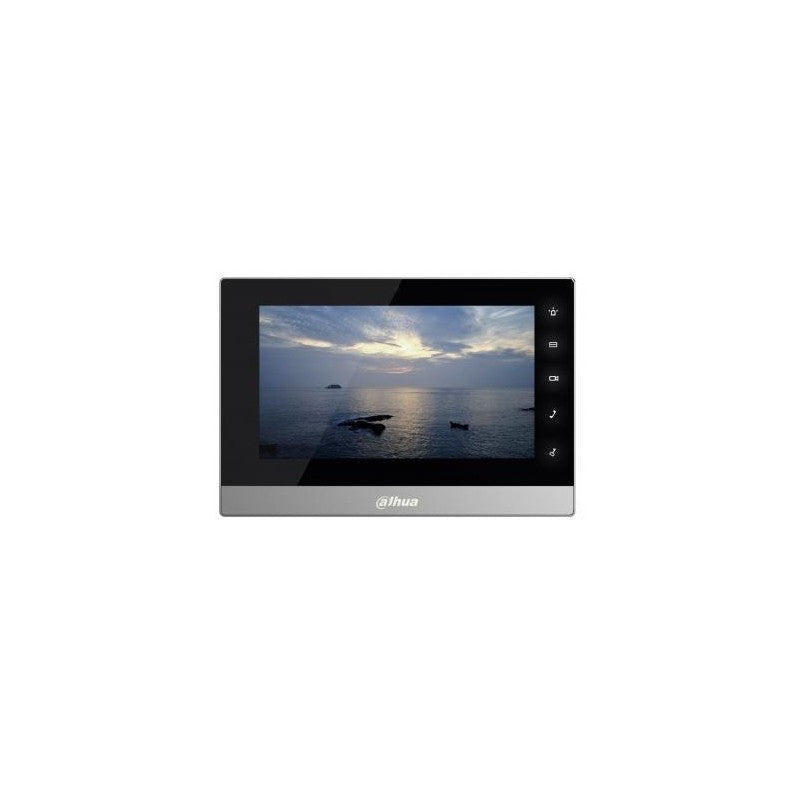

The Dahua Vt IP Intercom Monitor Black Apartment/residential 7 Inch Display Resistive Touchscreen Plastic 12vdc/24v POE Switch(vtns1060a) is a wall-mounted video intercom terminal designed for residential and apartment security systems. This unit features a 7-inch resistive touchscreen display and supports H.264 video compression for efficient data transmission within IP networks.
Key Features
- 7-inch resistive touchscreen display with a plastic surface finish
- Supports H.264 video compression standard
- Includes alarm input and dry contact alarm output
- Compatible with 12VDC, 24V, and PoE power sources
- Supports up to 32GB Micro SD card for local storage
- Features a side-mounted LAN port for network connectivity
- Supplied with a wall bracket for installation
- Physical dimensions of 136.5H x 200.5W x 22D mm
Technical Specifications
| Product Type | Wired IP indoor video intercom monitor. |
| Appearance | Black DHI-VTH2621G-P variant with PC and ABS casing. |
| Display | 7-inch TFT capacitive touchscreen. |
| Screen Resolution | 1024 × 600. |
| Processor and Memory | Dual-core 1.2GHz CPU with 128MB ROM and 128MB RAM. |
| Operating System | Embedded Linux operating system. |
| Video Decoding | H.265 and H.264 decoding for compatible door stations and IP cameras. |
| Interoperability | ONVIF and SDK support. |
| Network Protocols | RTSP, RTP, SIP, DNS and SSH. |
| Network Interface | One 10/100Mbps Ethernet port. |
| Audio | Two-way audio with one audio input, built-in speaker and echo suppression. |
| Audio Formats | G.711a, G.711u and PCM at 16kHz and 16-bit. |
| Communication Mode | Full-digital communication. |
| Information Release | Receives and displays text information released by a compatible management centre. |
| Do-Not-Disturb | Configurable do-not-disturb mode and time period. |
| Extension Capacity | Villa configuration: up to 9; apartment configuration: up to 4. |
| Alarm Connections | Six alarm inputs and one alarm output. |
| Doorbell Function | Any alarm input can be used as a doorbell input. |
| Storage | MicroSD card up to 64GB, identified as reserved for software. |
| Power Supply | 12V DC, 1A or standard PoE at 36-57V, 0.35A. |
| Power Consumption | Up to 2W in standby and up to 6W while working. |
| Installation | Indoor surface mounting. |
| Operating Conditions | -10°C to +55°C at 10%-95% non-condensing relative humidity; below 3,000m altitude. |
| Dimensions and Weight | 189.6 × 134.6 × 26.0mm; net weight 0.34kg. |
| Certifications | CE and FCC. |
