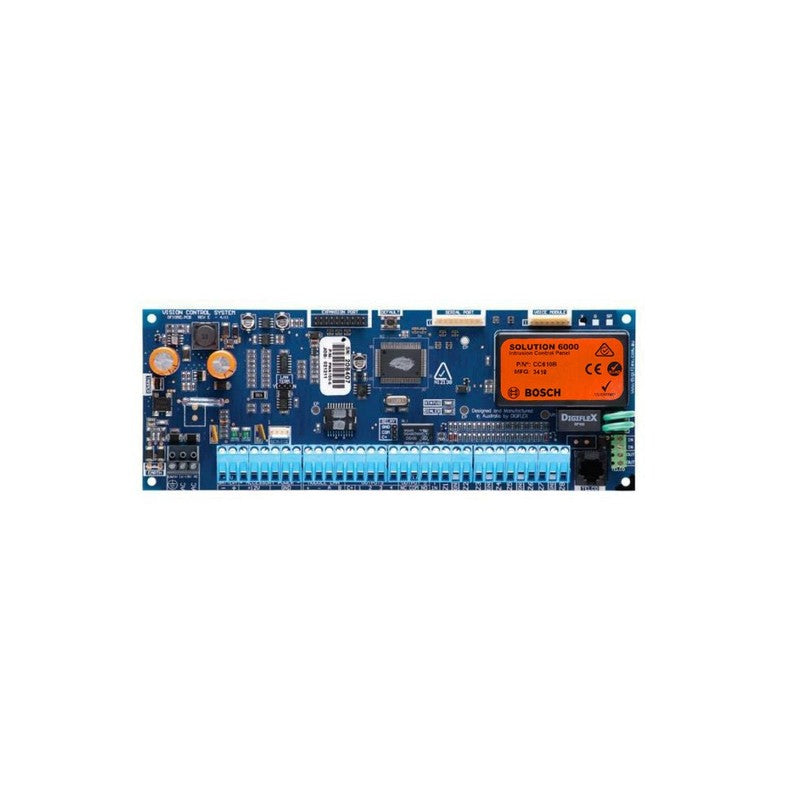

Bosch Solution 6000 Hardwired Alarm Panel Blue 16 X Zone Expand Up To 144 Zone 5 X Output Expand Up To 37 Zone 8 Areas 256 Users 16 Doors 16 Keypad 144 Wireless 1000 Events Pcb Enclosure Mount Built In Dialler 16-18vac Suits Solution 6000
SKU: BOSCC610P
$378.51
The Bosch Solution 6000 Hardwired Alarm Panel Blue is a robust security controller designed for comprehensive site protection, supporting up to 144 zones and 8 areas. This PCB enclosure mount unit features a built-in dialler and operates on a 16-18VAC power supply, ensuring reliable performance for complex access control and intrusion detection systems.
Key Features
- Supports 16 hardwired zones expandable up to 144 zones
- Includes 5 outputs expandable up to 37 zones
- Manages up to 8 areas with 256 user codes
- Compatible with 16 keypads and 144 wireless devices
- Features a built-in dialler for emergency notification
- Stores 1000 events for detailed system logging
- Compact PCB enclosure mount with dimensions of 85H x 235W x 40D mm
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Series | SOLUTION 6000 |
| Wiring | HARDWIRED |
| Device Type | ALARM/ ACCESS CONTROL PANEL |
| Zone | 16 x ZONE |
| Expandable Zone | EXPAND UP TO 144 ZONE |
| Output | 5 x OUTPUT |
| Expandable Output | EXPAND UP TO 37 ZONE |
| Area | MAX 8 AREAS |
| User | 256 USERS |
| Max Doors | 16 DOORS |
| Max Keypads | 16 KEYPAD |
| Max Rf Zones | 144 WIRELESS |
| Max Events | 1000 EVENTS |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| On Board Port | BUILT IN DIALLER |
| Power | 16-18VAC |
| Height(mm) | 85mm |
| Width(mm) | 235mm |
| Depth(mm) | 40mm |
| Warranty | 36 Months |
