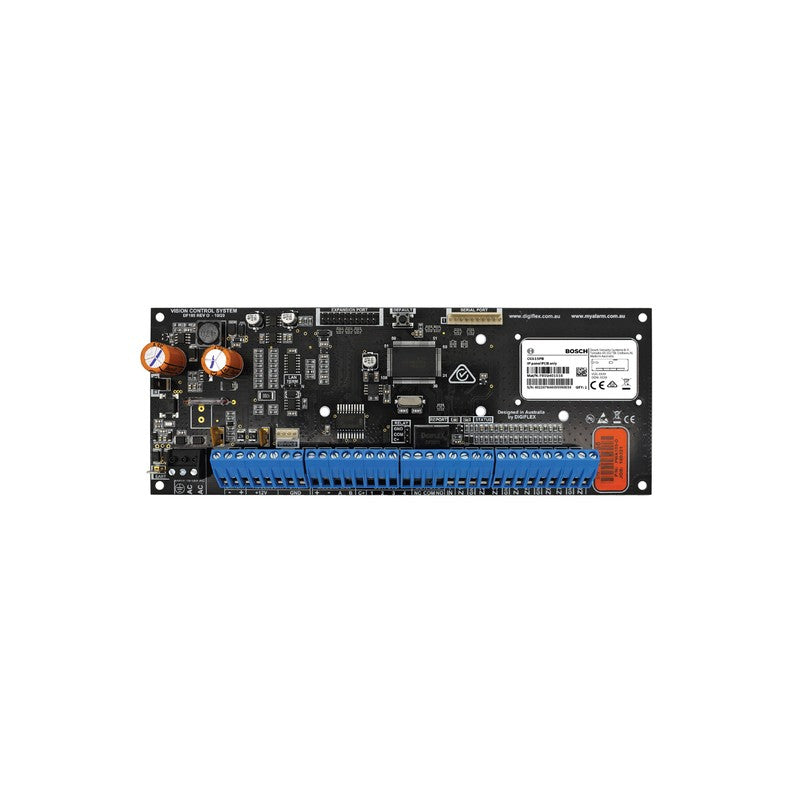

Bosch Solution 6000 Hardwired Alarm Panel 16 X Zone Expand Up To 144 Zone 5 X Output Expand Up To 37 Zone 8 Areas 990 Users 16 Doors 2000 Events Pcb Enclosure Mount 16-18vac
SKU: BOSCC615PB
$314.71
The Bosch Solution 6000 Hardwired Alarm Panel is a robust security controller designed for comprehensive intrusion detection systems. It supports up to 144 zones and 8 areas, providing scalable protection for commercial and residential environments. The unit is designed for PCB enclosure mounting and operates on a 16-18VAC power supply.
Key Features
- 16 base zones with expandability up to 144 zones
- 5 base outputs with expandability up to 37 outputs
- Supports up to 8 independent areas
- Accommodates up to 990 users
- Manages up to 16 doors
- Stores up to 2000 events
- PCB enclosure mount design
- 16-18VAC power requirement
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Warranty | 36 Months |
| Series | SOL 6000/IP |
| Wiring | HARDWIRED |
| Device Type | ALARM PANEL |
| Zone | 16x ZONE |
| Expandable Zone | EXPAND UP TO 144 ZONE |
| Output | 5x OUTPUT |
| Expandable Output | EXPAND UP TO 198 OUTPUT |
| Area | 8 AREAS |
| User | 990 USERS |
| Max Doors | 16 DOORS |
| Max Events | 2000 EVENTS |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| Power | 16VDC , 18VAC , MULTI VOLTAGE |
