Bosch Solution 6000 Hardwired Alarm/ Access Control Panel 16 X Zone Expand Up To 144 Zone 5 X Output Expand Up To 37 Zone 8 Areas 256 Users 16 Doors 16 Keypad 144 Wireless 1000 Events Pcb Enclosure Mount Built In Dialler 16-18vac
SKU: BOSCC610PB
$378.51

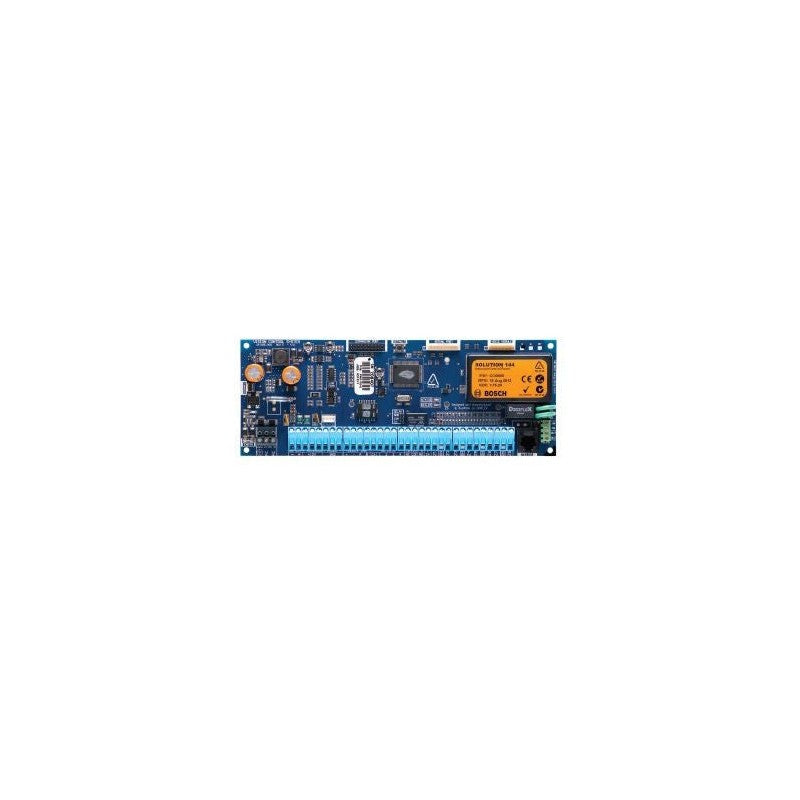

The Bosch Solution 6000 is a hardwired alarm and access control panel designed for scalable security infrastructure. It supports a base configuration of 16 zones and 5 outputs, with the capacity to expand to 144 zones and 37 outputs respectively. The unit is enclosure mounted, features a built-in dialler, and operates on a 16-18VAC power supply.
Key Features
- 16 x Zone base configuration, expandable up to 144 zones
- 5 x Output base configuration, expandable up to 37 outputs
- Supports up to 8 areas, 256 users, and 16 doors
- Accommodates 16 keypads and 144 wireless devices
- Event log capacity of 1000 events
- PCB enclosure mount design with built-in dialler
- Power requirements: 16-18VAC
- Physical dimensions: 85H x 235W x 40D (mm)
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Series | SOLUTION 6000 |
| Wiring | HARDWIRED |
| Device Type | ALARM/ ACCESS CONTROL PANEL |
| Zone | 16 x ZONE |
| Expandable Zone | EXPAND UP TO 144 ZONE |
| Output | 5 x OUTPUT |
| Expandable Output | EXPAND UP TO 37 ZONE |
| Area | MAX 8 AREAS |
| User | 256 USERS |
| Max Doors | 16 DOORS |
| Max Keypads | 16 KEYPAD |
| Max Rf Zones | 144 WIRELESS |
| Max Events | 1000 EVENTS |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| On Board Port | BUILT IN DIALLER |
| Power | 16-18VAC |
| Height(mm) | 85mm |
| Width(mm) | 235mm |
| Depth(mm) | 40mm |
| Warranty | 36 Months |
