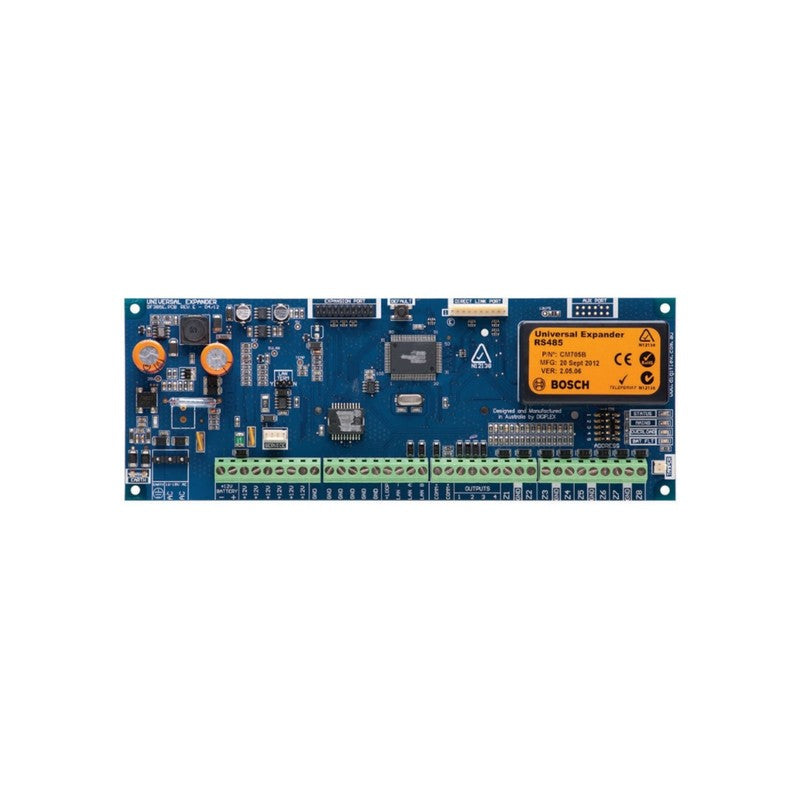

Bosch Solution 6000/ 6000-ip/ 144 Hardwired Zone & Output Expander Module Blue 8 X/16 X Split Zone 4 X Output Pcb Enclosure Mount 135g 16-18vac
SKU: BOSCM705PB
$601.21
The Bosch Solution 6000/ 6000-ip/ 144 Hardwired Zone & Output Expander Module Blue 8 X/16 X Split Zone 4 X Output Pcb Enclosure Mount 135g 16-18vac is a hardwired expansion device designed for the Bosch Solution 6000 and 6000-IP security platforms. This module provides additional hardwired zone and output capacity, supporting 8 or 16 split zones and 4 outputs to extend the functionality of existing control panels.
Key Features
- Compatible with Bosch Solution 6000 and 6000-IP systems
- Supports 8 x or 16 x split zone configuration
- Provides 4 x hardwired outputs
- PCB enclosure mount design
- Operating voltage of 16-18VAC
- Unit weight of 135g
- Dimensions: 40H x 235W x 85D mm
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Series | SOLUTION 6000/ 6000-IP/ 144 |
| Wiring | HARDWIRED |
| Device Type | ZONE & OUTPUT EXPANDER MODULE |
| Colour | BLUE |
| Zone | 8 x/16 x SPLIT ZONE |
| Output | 4 x OUTPUT |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| Weight | 135G |
| Power | 16-18VAC |
| Height(mm) | 40mm |
| Width(mm) | 235mm |
| Depth(mm) | 85mm |
| Warranty | 36 Months |
